CRYSTORAMA 534-MT Broche Four Light Chandelier
Product Information
| Part Number | Model | Product Website | Hanging Height | Bulb Type | Bulb Wattage | Fixture Rating |
|---|---|---|---|---|---|---|
| A | 534-MT | Crystorama.com | Minimum: 28 inches Maximum: 108 inches | Candelabra Bulb | Recommended: 40 Watts Maximum: 60 Watts | Damp Rated |
Product Usage Instructions
- Screw the top stem (Part I) onto the top of the frame.
- Screw the bottom stem (Part L) onto the bottom of the frame.

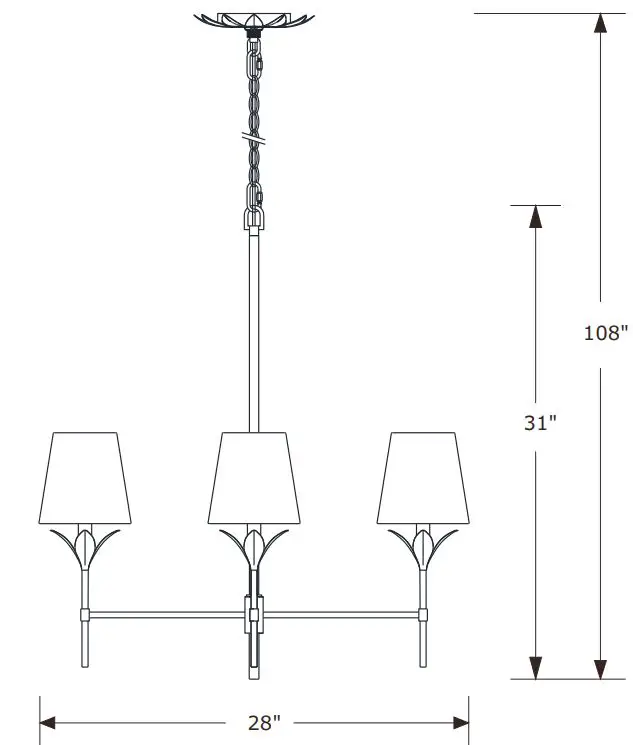

- Decide the preferred hanging height within the range of minimum (28 inches) and maximum (108 inches), and choose the correct length of chain needed (Part G).
- Raise the fixture up to the ceiling and make the wire connections.
ASSEMBLY INSTRUCTION
MODEL # 534-MT

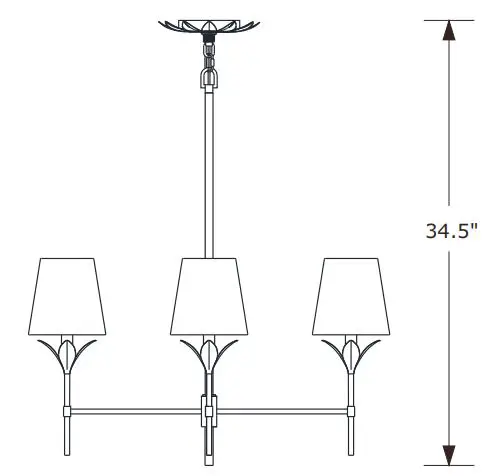

The minimum hanging height:
WARNING:
- Electrical Danger
- Turn Power Off
- All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes
- You will need 1 -Candelabra Bulb 40 Watts Recommended 60 Watts Max. USING LED BULBS FOR EXTENDED USE AS A DAMP RATER
HOW TO INSTALL
- Screw the top stem onto the the top of the frame.
- Screw the bottom stem onto the bottom of the frame.
- Decide the preferred hanging height and choose the correct length of chain needed.
- Raise the fixture up to the ceiling and do the wire connections.
WARNING:
This product can expose you to Lead which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65Warnings.ca

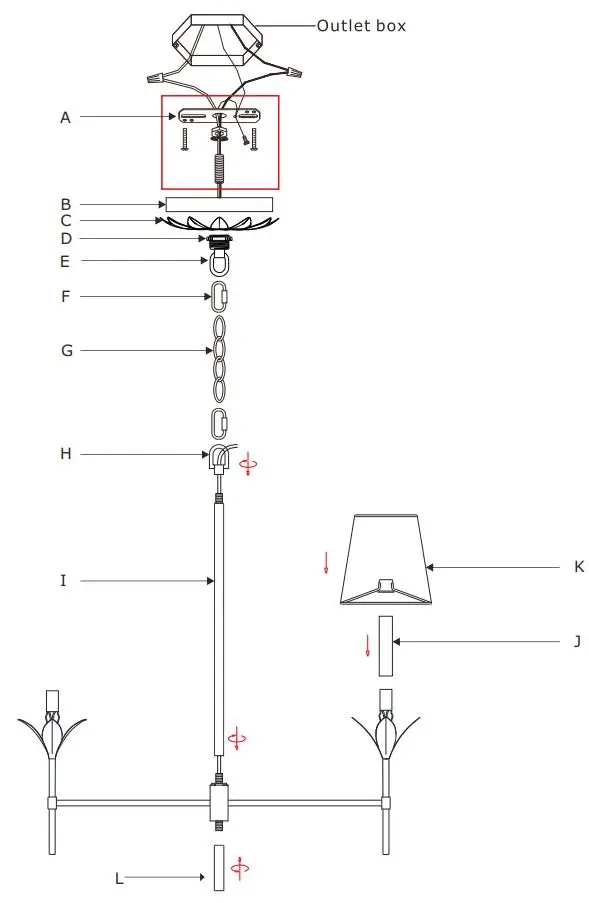

PART NUMBER
MODEL # 534-MT
- A.(1)-Mounting Hardware
- B.(1)-Canopy(W4.7″,H0.79″) #XRE514MTCAN4.7IN
- C.(1)-Decorative Metal Leaves
- D.(1)-Collar Ring
- E.(1)-Collar Loop
- F.(2)-Quick Link
- G.(1)-Hanging Chain(72″,4.0mm) #XRE504MTCHA4MM H.(1)-Loop
- I.(1)-Top Stem(23.23″,15.9mm) #XRE534MTSTEM23.23IN J.(4)-Candle Sleeve(W0.87″,H3.9″) #XRE516MTCDL3.94IN
- K.(4)-White Fabric Shade #XRE531SHA6IN
- L.(1)-Bottom Stem(3.23″,15.9mm) #XRE534MTSTEM3.23IN
Crystorama Lighting
