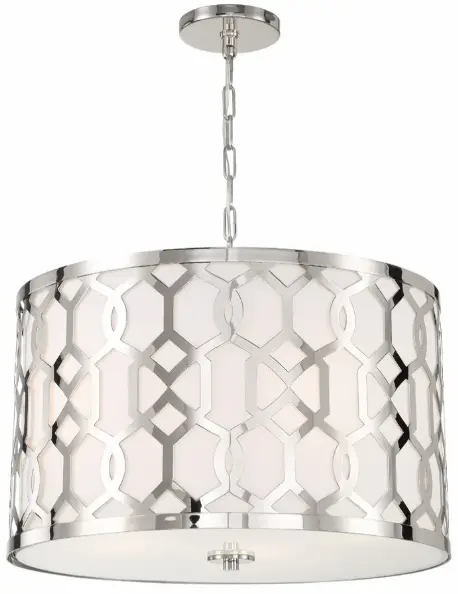

CRYSTORAMA 2266-PN Jennings Five Light Chandelier Instruction Manual
ASSEMBLY INSTRUCTION
WARNING
Electrical Danger
Turn Power off
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate Electric Code and the appropriate
You will need 5-Medium Base Bulb 60 Watts Recommended 100 Watts Max. USE LED BULBS FOR EXTENDED USE This fixture is Dry rated
How to install
- Slip the loop along wire and thread onto the nipple located on the top of the metal fram
- Determine the preferred hanging height and adjust the chain to the length required.
- Connect fixture wires to supply wires in outlet box.
- Install the fixture onto the outlet box.
- Install the bulbs(not included) into the socket.
- Thread the nipple onto the coupling and adjust the length of nipple to fit with the glass. Tightenit with hex nut.
- Slide the glass diffuser, the plastic washer and the metal washer over the nipple, then secure with the hex nut.
- Slide the cap over the nipple, then secure with the bottom finial.

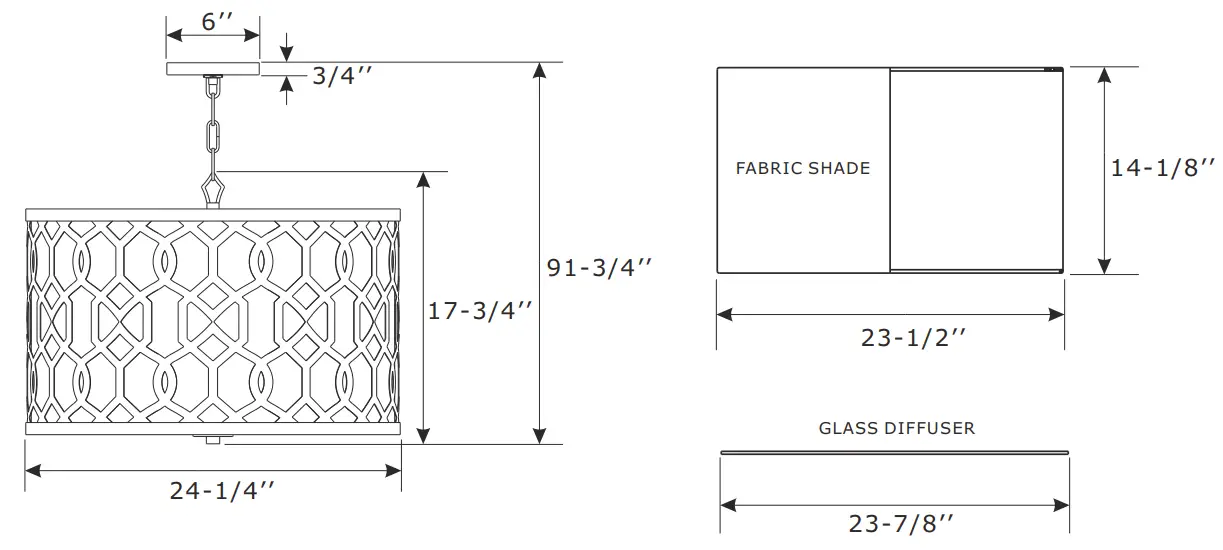

Dimensions
WARNING: This product can expose you to Lead which is known to the state of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65Warnings.ca.gov

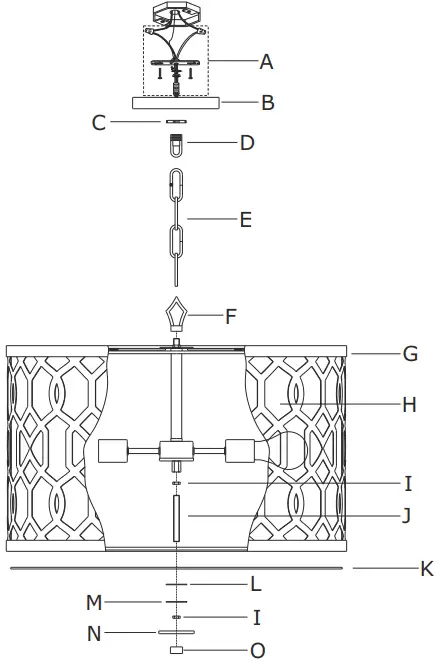

Part Number
Part Numbers
A. (1)-Mounting hardware
B. (1)-Canopy W6’’xH3/4’’ #XRF2260PNCAN6IN
C. (1)-Collar ring
D. (1)-Collar loop #XRF2260PNLOOP
E. (1)-Chain -72’’, 4mm thick #XRF2260PNCHA4.0MM
F. (1)-Loop
G. (1)-Metal frame
H. (1)-Fabric shade W23-1/2’’xH14-1/8’’ #XRF2266SHA23.5IN
I. (2)-Hex nut
J. (1)-Nipple
K. (1)-Glass diffuser #XRF2266DIF23.875INM. (1)-Metal washer
L. (1)-Plastic washer
M. (1)-Metal washer”
N. (1)-Cap #XRF2263PNCAP
O. (1)-Bottom finial #XRF2263PNFIN
