LIGHTING THE WAY FOR SIXTY YEARS
ASSEMBLY INSTRUCTION
MODEL #WIN-612-BF-CL-MWP

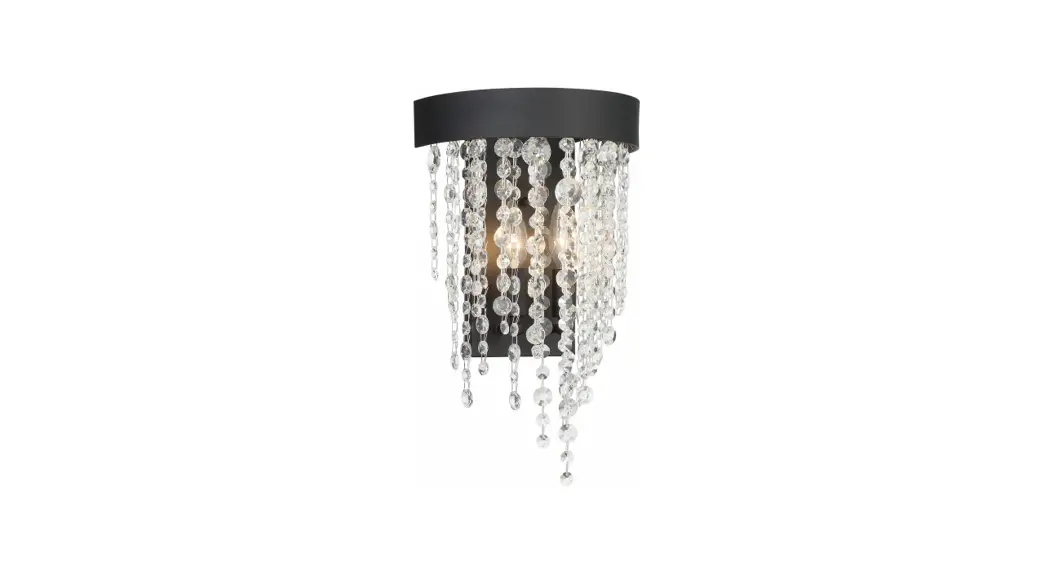

WIN-612-BF-CL-MWP Winham Crystal Black Forged Wall Lamp
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.
You will need 2 -Candelabra Base Bulb 40 Watts Recommended 60 Watts Max.
USE LED BULBS FOR EXTENDED USE THIS FIXTURE IS DAMP RATED
How to Install
- Do a complete inventory of all parts and components before you start installation.
- Install the backplate onto the outlet box.
- Insert recommended bulb (not included).
- Dress the fixture with crystal as illustrated.

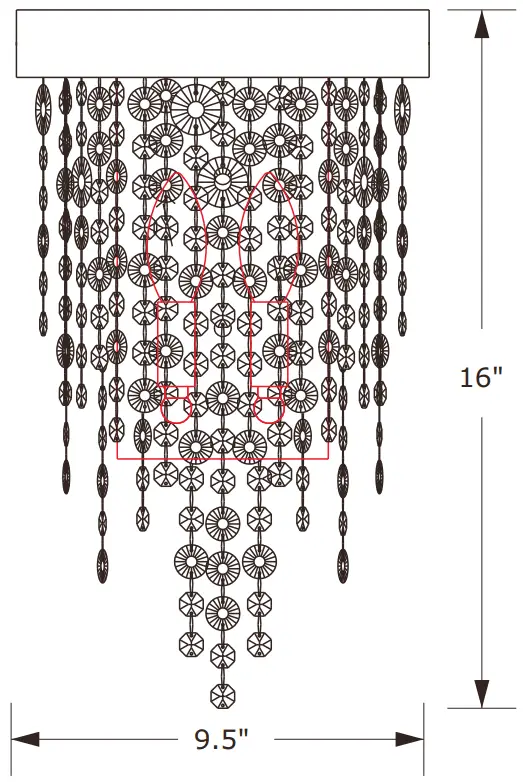

DETAILED ILLUSTRATION

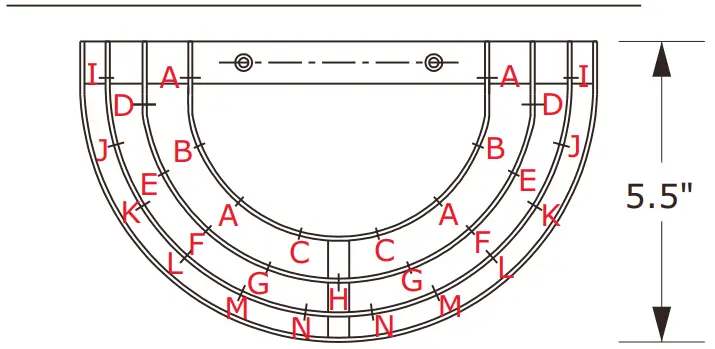

AL PLACEMENT TOP VIEW

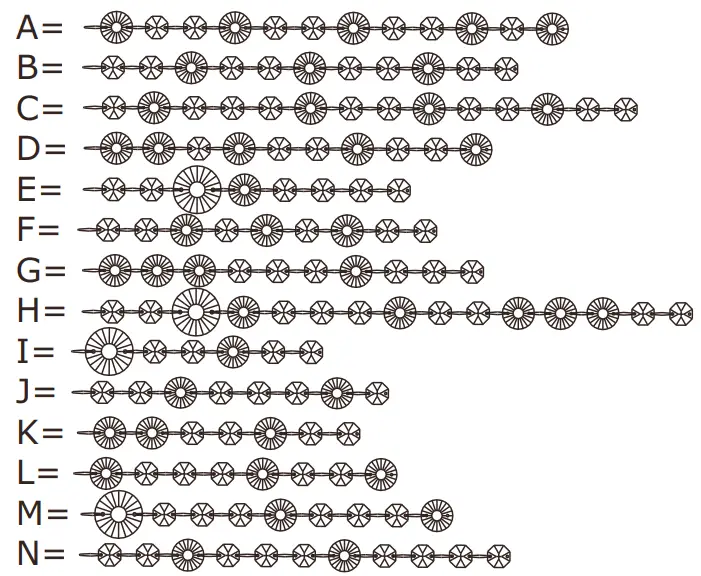

Crystal Key
SUGGESTED CRYST
PLEASE REFERENCE CRYSTAL KEY
A.4 Sets.
(7)14mm + (5)20mm
B.2 Sets.
(8)14mm + (3)20mm
C.2 Sets.
(10)14mm + (4)20mm
D.2 Sets.
(5)14mm + (5)20mm
E.2 Sets.
(6)14mm + (1)20mm + (1)30mm
F.2 Sets.
(6)14mm + (3)20mm
G.2 Sets.
(6)14mm + (4)20mm
H.1 Set.
(9)14mm + (5)20mm + (1)30mm
I.2 Sets.
(4)14mm + (1)20mm + (1)30mm
J.2 Sets.
(6)14mm + (2)20mm
K.2 Sets.
(4)14mm + (3)20mm
L.2 Sets.
(5)14mm + (3)20mm
M.2 Sets.
(6)14mm + (2)20mm + (1)30mm
N.2 Sets.
(9)14mm + (2)20mm
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65Warnings.ca.gov.

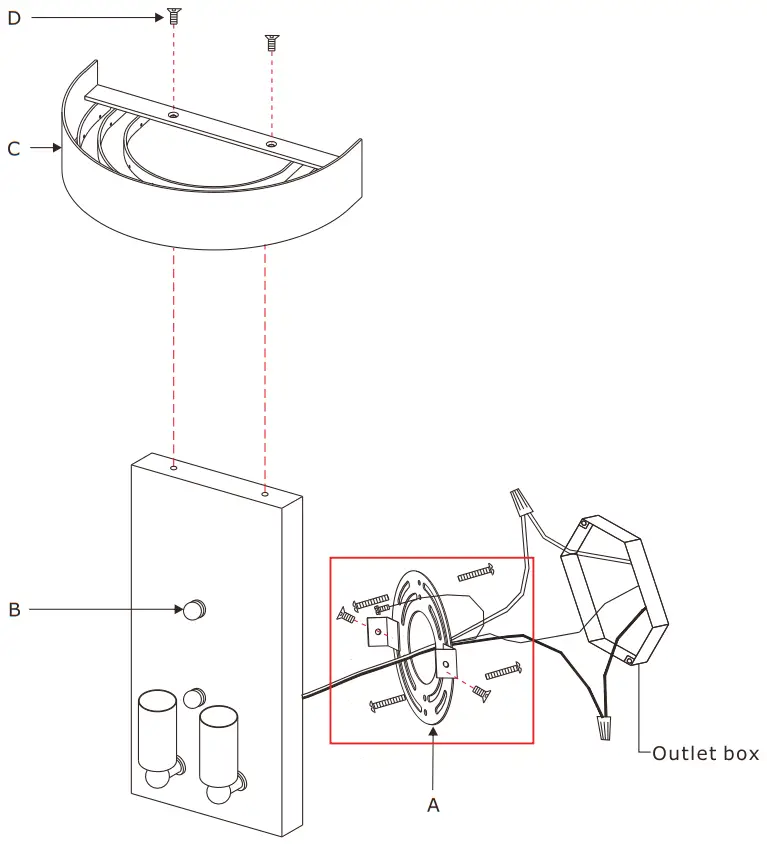

PART NUMBER
Part Number
A. (1) – Mounting Hardware
B. (2) – Ball Nut #XRE612BFBANUT
C. (1) – Metal Frame
D. (2) – Flat Screw
Crystorama Lighting
