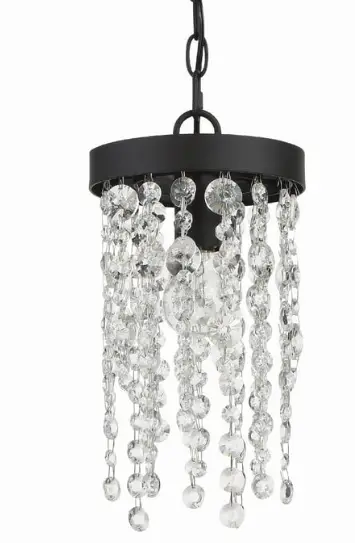

CRYSTORAMA WIN-610-GA-CL-MWP Winham Pendant Ceiling Light
Product Information
- Model: #WIN-610-GA-CL-MWP
- Minimum Hanging Height: 14″
- Bulb Requirement: 1 Medium Bulb (60 Watts Recommended, 100 Watts Max)
Assembly Instructions
- Before starting the installation, thoroughly check and inventory all parts and components.
- Install the bulb (not included) into the fixture.
- Dress the fixture with crystal according to the crystal key provided below.

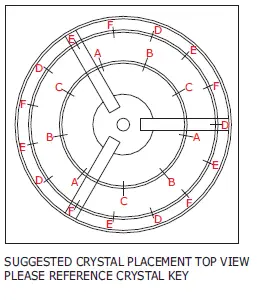

Crystal Key
| Crystal Set | Crystal Sizes |
|---|---|
| A | (3)14mm + (8)20mm |
| B | (4)14mm + (3)20mm + (2)30mm |
| C | (3)14mm + (4)20mm + (1)30mm |
| D | (4)14mm + (5)20mm + (1)30mm |
| E | (4)14mm + (4)20mm |
| F | (3)14mm + (1)20mm + (2)30mm |

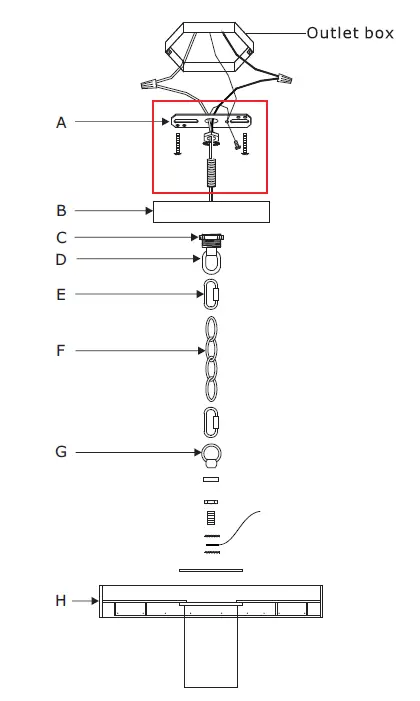

DETAILED ILLUSTRATION
Part Inventory
- A – Mounting Hardware
- B – Canopy (W5, H0.79) Part Number: #XRE610GACAN5IN
- C – Collar Ring
- D – Collar Loop
- E – Quick Link (2 pieces)
- F – Hanging Chain (72, 3.2mm) Part Number: #XRE610GACHA3MM
- G – Fixture Loop
- H – Metal Frame
Crystorama Lighting
