APS104G-EX 60W Ultra PoE to 4 Port Gigabit PoE Entender Switch
User Guide
APS104G-EX 60W Ultra PoE to 4 Port Gigabit PoE Entender Switch
APS104G-EX
60W Ultra PoE to 4-Port 802.3af/at Gigabit
PoE Extender Switch
 | 1-Port Ultra PoE 802.3bt Input, 4-Port Data + Power 802.3af/802.3at Output |
 | Automatically detects and protects PoE equipment from surges and improper installation |
 | 100-Meter 802.3af/at PoE extension |
 | Plug n Play, Metallic Casing Fanless Design |

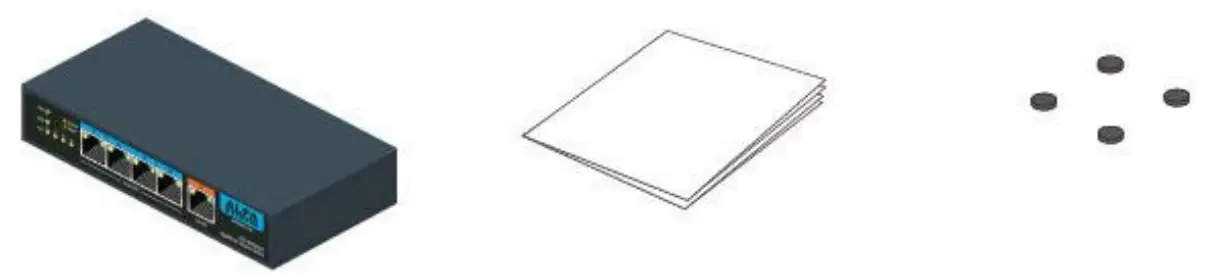

Package Contents
- APS104G-EX x 1
- Rubber Stand x 4
- User’s Guide x 1
Note: NOT Included Power Adapter
Be sure to use an IEEE 802.3bt PoE-compliant switch or injector as the power source to ensure product performance and stability.

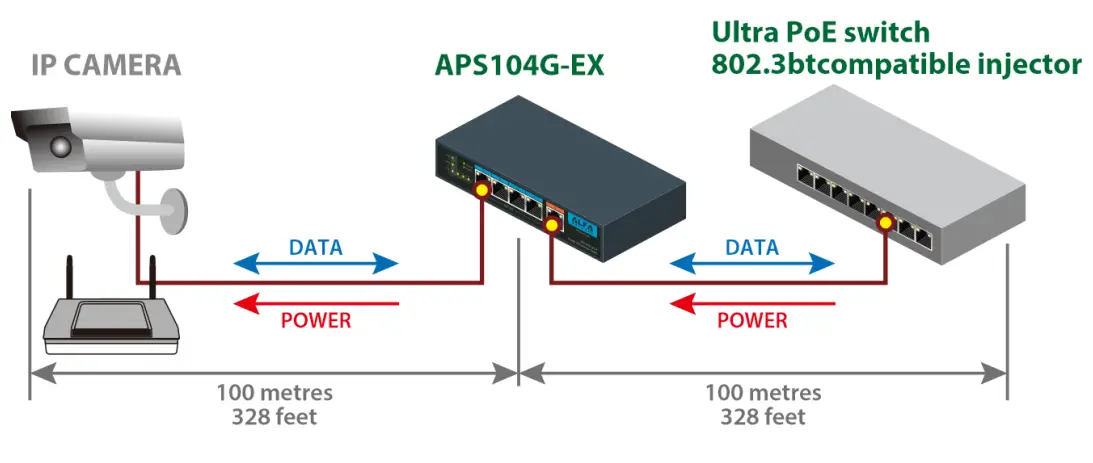

Application Scenario

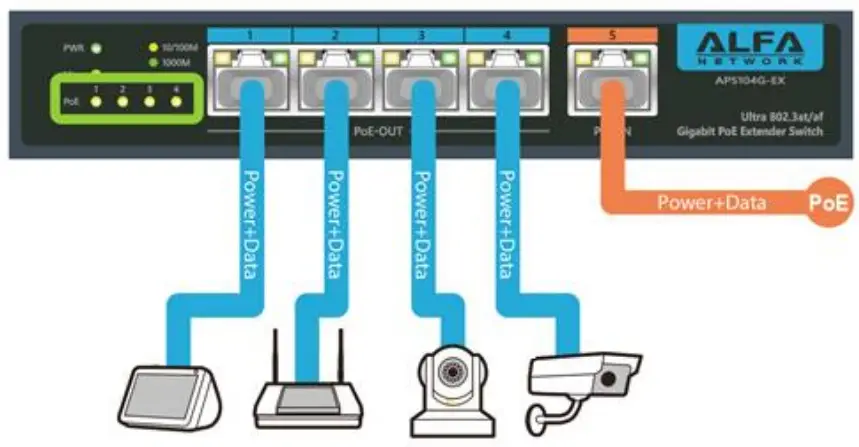

- Max. 60 W 802.3bt PoE input, up to four 802.3af/at PoE device extensions
- Plug-n-Play, Gigabit 100-Meter PoE Extension for Your Network
Specifications
| Standards | |
| Network Standards | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at |
| Network Media | 10BASE-T: UTP category 3,4,5 cable (≤100 m) 100BASE-TX: UTP category 5,5e cable (≤100 m) 1000BASE-T: UTP category 5e,6 cable (≤100 m) |
| Energy Saving | IEEE 802.3az |
| MAC Address Table | 2K, Auto-learning, Auto-aging |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 10 Gbps |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| Hardware Specifications | |
| Ethernet Ports | 5 x 10/100/1000 BASE-T RJ45 Auto- DI/MDI-X ports |
| PoE PD (power-in) Port | Port 5, 802.3bt PoE end-span and mid-span PD compatible Max. 60 watts input |
| PoE Injector (power-out) Port | Port 1 – port 4 with 802.3at/af PoE, Max. 30/15.4-watt output |
| LED | PWR (Green), Max (Orange), PoE (Orange) 10/100 Mbps LNK/ACT (Orange) 1000 Mbps LNK/ACT (Green) |
| Power Requirements | 802.3bt PoE, (optional : DC power adapter) |
| Power over Ethernet | |
| PoE Power-in Requirement | 802.3bt ultra PoE |
| PoE Power Output | 802.3af: Max. 15.4 watt, 802.3at Max. 30.8 watts |
| PoE Power Budget | 60 watts (max.) @ 25 °C |
| PoE Ability | Input: 60 W / 802.3bt Output: 30 W / 802.3at, 15.4 W / 802.3af |
| ESD Protection | 4KV Contact Discharge, 6KV Air-Discharge |
| Dimensions (W x D x H) | 160 x 93 x 28 mm |
| Weight | 380 g |
| Environmental | |
| Operating Temperature | 0 °C ~ 40 °C (32 °F ~104 °F ) |
| Storage Temperature | -40 °C ~ 70 °C (-40 °F ~158 °F ) |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 5% ~ 90% non-condensing |
