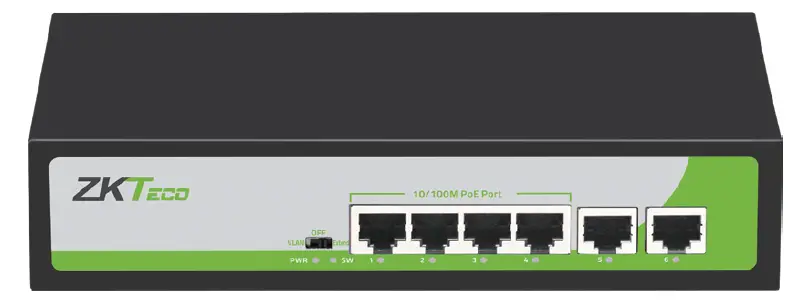

ZKTeco PE042-55-C 4 Ports 10/100Mbps PoE Switch
- 4*10/100M RJ-45(POE)+2*10/100M RJ-45
- Conforms to IEEE 802.3,IEEE 802.3u and IEEE802.3af/at
- The max. PoE power output is 15.4 W (IEEE 802.3af)/ 30 W (IEEE 802.3at)
- 250 meters of PoE transmission distance of power and data (Cat 6 )
- MDI/MDIX self-adaptation
- Store-and-forward switching
- Lightning protection
System Overview
PE042-55-C is an advanced PoE switch providing a network point for data transmission and power supply. It has 4 PoE ports that can provide standard IEEE802.3af/at power supply through network cables.
Because of the advanced self-sensing algorithm for supplying power over IEEE802.3af/at, the connected PoE or non-PoE standard equip- ment is safely protected.
Specifications
| Model Number | PE042-55-C | |
| Port | 4*10/100M RJ-45(POE)+2*10/100M RJ-45 | |
| Network Protocol | IEEE802.3, IEEE802.3u, IEEE802.3x,IEEE802.3af/at | |
|
POE | PoE Standard | IEEE802.3af /IEEE802.3at |
| PoE Consumption | Max 15.4 W (IEEE 802.3af )/ 30 W (IEEE 802.3at) | |
| PoE Compatibility | IEEE 802.3af/at self-adaptation | |
| Output Voltage | DC48V | |
| Power Supply | 1,2+ ; 3,6- | |
| Network Cable | 10Base-T: Cat3 UTP/STP(≤100m) 10Base-T: Cat6a UTP/STP(≤250m) 100Base-TX: Cat5e UTP/STP(≤100m) | |
| Backplane Bandwidth | 1.2Gbps | |
| Packet Forwarding Rate | Each port 0.1488M pps | |
| Buffer Memory | 448K | |
| MAC Size | 1K | |
| Switching | Store-and-Forward | |
| Power Supply | AC110-260V input 52V1.25Aoutput(Built-in power supply) | |
|
Light Indicator | PWR | Power indicator light | On | Power-on |
| Off | Power- off | |||
|
SW |
Dial light | Off | Normal mode | |
| On | Vlan mode | |||
| Flash | Extend mode | |||
|
1-6 |
Link light | On | Link connection | |
| Flash | Data transfer | |||
| Off | Link failure | |||
|
Work Environment | Working Temperature | -20°C ~ 55°C | ||
| Storage Temperature | -40°C ~ 80°C | |||
| Working Humidity | 10% ~ 90%,non-condensing | |||
| Storage Humidity | 5% ~ 90%,non-condensing | |||
| Dimension (L*W*H) | 200mm*120mm*45mm | |||
| Weight | 0.5kg | |||
| MTBF | 100,000 hours | |||
Ordering Information
| Product Type | Part Number | Description |
| PoE Switch | PE042-55-C | 4*10/100M RJ-45(POE)+2*10/100M RJ-45; IEEE802.3af/at;Long distance 250 meters(Cat 6); Built-in power supply |

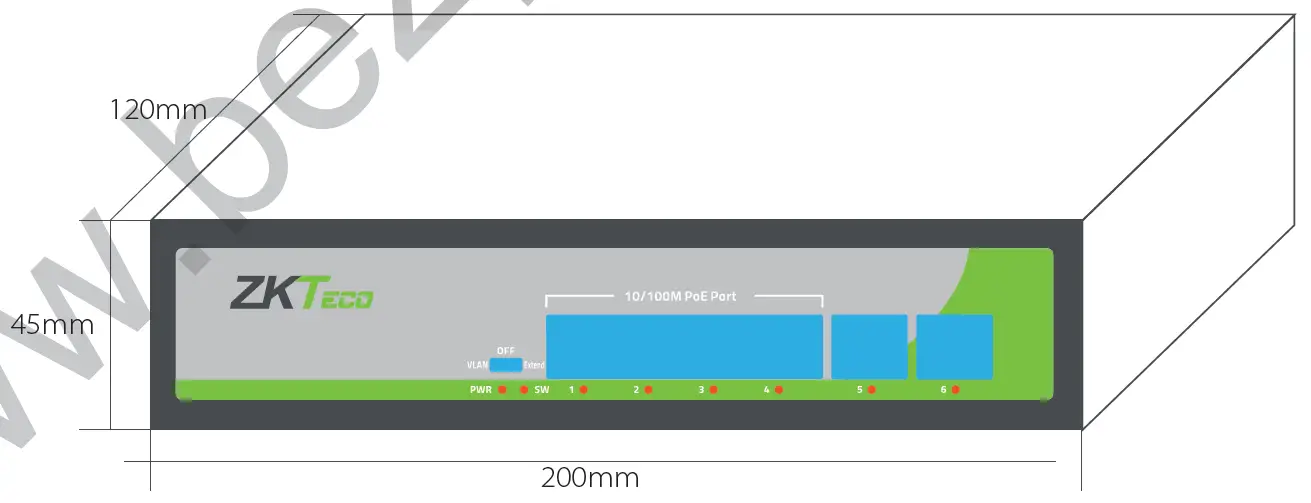

Dimensions (mm)
ZKTECO CO.,LTD. www.zkteco.com E-mail: [email protected]
