Tenda TEF1106P-4-63W 6-Port 10-100M Desktop Switch with 4-Port PoE

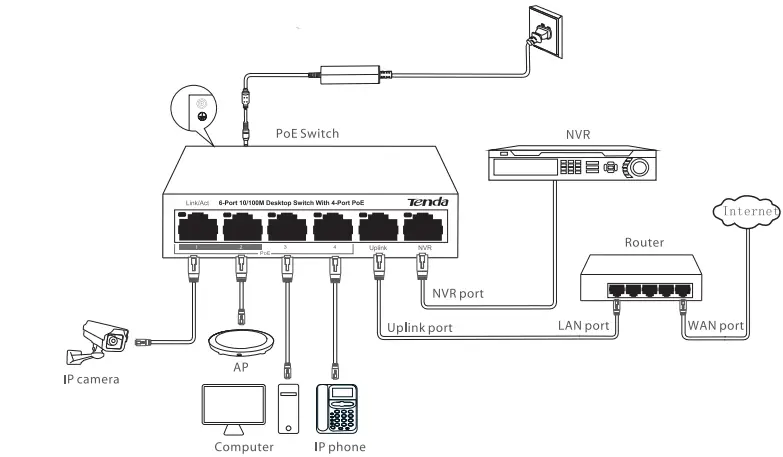

Connecting your devices
TEF1 1 06P-4-63W is used for illustration.
Tips
- The switch supports the auto MDI/MDIX function, indicating that either straight cables or crossover cables are acceptable to connect your switch to Ethernet devices.
- To protect the switch from overload, PoE ports of your switch are assigned with power supply priorities, and the priorities decrease as the port number increases. When the total power consumption of the PoE-powered devices exceeds the maximum output of the switch, the switch starts cutting the power supply from the port with the lowest priority, until the total consumption does not exceed the maximum output.
- Port 1 and 2 own a higher priority. You are recommended to connect them to the network devices (1P cameras or APs) in key area, to ensure a higher priority for data transmission when network congestion occurs.
- For safety, do not face the air vents of the switch down when you use wall mounting.

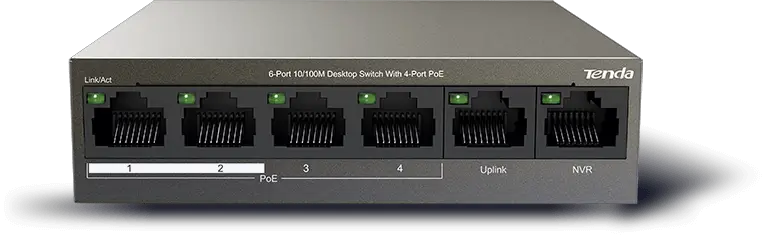

| LED indicator/Toggl1 | Status | Description |
| Link/Act | Solid on | The corresponding port Is connected properly. |
| Blinking | Data is being transmitted over the corresponding port, | |
| Off | The corresponding port is disconnected or improperly connected. | |
| PWR
_J[LJ Mode selection toggle | Solid on | The switch Is connected to a power source properly. |
| Off
Default | The switch Is disconnected from a power source or not properly connected to a power source. In this mode, all ports of the switch can communicate with each other separately. | |
| Extend | In this mode, the maximum data rate of each PoE port reduces to 10 Mbps, but the maximum transmission distance Increases to 250 meters. ForTEF1 1 1 OP-8-63W, the PoE ports can communicate with the uplink port and NVR port, but cannot communicate with each other. |
Specification
| Mode1 | TEFl 106P-4-63W | I | TEF1110P-8-63W | |
|
Interface | 10/100 Mbps RJ45 port | I “ | ||
|
Working mode | Default: In this mode, all ports of the switch can communicate with each other separately.
Extend; In this mode, the maximum data rate of a single port reduces to 10 Mbps, but the maximum transmission distance is 250 meters. ForTEFl 1 10P-8-63W, the PoE portscan communicates with the uplink port and NVR port, but cannot communicate with each other. | |||
| Store-and-forward | Supported | |||
| Feature | MAC address table | 1 K | ||
| MAC address learning | Self-learnIng, auto-aging | |||
| Backplane bandwidth | 1.2 Gbps 1 l.6Gbps | |||
| PoE standard | IEEE B02.3af, IEEE 802.3at | |||
| PoEpower supply | ||||
| PoEport | l to4 I 1 to 8 | |||
| Maximum output of | ||||
| a single port | 30W | |||
| Maximum output of the switch | SSW | |||
| PoE power cable core | 8 cores: voltage of cores 1, 2,4, 5 is +, and cores 3, 6, 7, 8 is -. | |||
| RJ4S port | Common mode: 6 kV(Uplink port, NVR port) | |||
| Lightning | Power supply | Common mode: 4 kV Differential mode: 2 kV | ||
| protection | ||||
|
Environment
Power adapter | Operating environment | Temperature: {0 – 4src Humidity: {10%- 90%) RH, non-condensing | ||
| Storage environment
Input voltage | Temperature: {-40 – 70)°C Humidity: (S%- 90%) RH, non-condensing
1 00-240VAC 50/60Hz 1 .SA | |||
| Output voltage | S1V l.2SA | |||
| Dimension | 100mm •1oomm ‘” 26 mm 177.S mm ‘” 104mm•26mm | |||
| Transmission data rate | Ethernet: 10 Mbps (half duplex)/20 Mbps (full-duplex) Fast Ethernet: 100 Mbps (half duplex)/200 Mbps (full-duplex) | |||
| Transmission media | Ethernet: CAT3 UTP/STP cable or better Fast Ethernet: CATS UTP/STP cable or better | |||
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at | |||
CE Mark Warning
This Is a Class A product. In a domestic environment, this product may cause radio Interference, In which case the user may be required to take adequate measures.
The mains plug is used as disconnect device; the disconnect device shall remain readily operable. NOTE: (1 ) The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. (2) To avoid unnecessary radiation interference, it is recommended
to use a shielded RJ45 cable.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Caution!
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: (1 ) The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. (2) To avoid unnecessary radiation interference, it is recommended to use a shielded RJ45 cable.
RECYCLING
This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 201 2/1 9/EU in order to be recycled or dismantled to minimize its impact on the environment. User has the choice to give his product to a competent recycling organization orto the retailer when he buys a new electrical or electronic equipment.
Caution:
- Adapter Model: BN031 -A65051
- Manufacturer: SHENZHEN HEWEISHUN NETWORK TECHNOLOGY CO., LTD. Input: 100- 240 VAC 50/60 Hz, 1 .S A
- Output: 51 V, 1.25 A DC Voltage
| NOMBRE DEL PRODUCTO: Producto Switch de Escritorio de 6 puertos 10/1 QOM con 4 puertos PoE MODELO: TE F1 1 06P-4-63W I | |
| Alimentador de Energia: Alimentaci6n: 100-240 Vca 50/60 Hz, 1.5 A Salida: 51V 1 .25A | |
| PAIS DE ORIGEN: CHINA | |
Techni cal Support
Shenzhen Tenda Technology Co., Ltd. 6-8 Floor, Tower E3, N0.1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 51 8052
- USA hotline: 1-800-570-5892
- Toll Free: Daily-9am to 6pm PST
- Hong Kong Hotline: 00852-81 931 998
- Global Hotline: +86 755-2765 7180 (China Time Zone)
Canada hotline: 1-888-998-8966 Toll Free: Mon – Fri 9 am – 6 pm PST Website: www.tendacn.com E-maiI: [email protected]
