PE082-120-C

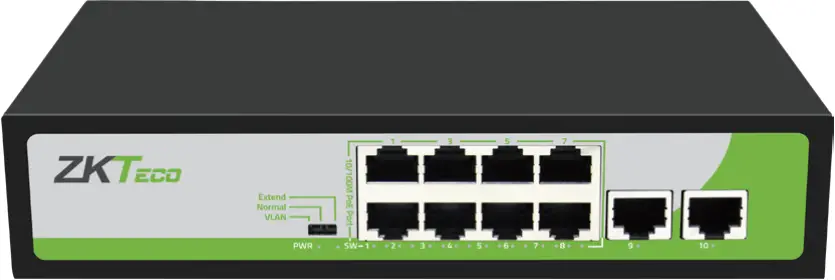

8 Ports 10/100Mbps PoE Switch

8*10/100M RJ-45(POE)+2*10/100M RJ-45
Conforms to IEEE 802.3,IEEE 802.3u and IEEE802.3af/at
The max. PoE power output is 15.4 W (IEEE 802.3af )/ 30 W (IEEE 802.3at)
250 meters of PoE transmission distance of power and data (Cat 6 )
MDI/MDIX self-adaptation
Store-and-forward switching
Lightning protection

System Overview

PE082-120-C is an advanced PoE switch providing a network point for data transmission and power supply. It has 8 PoE ports that can provide standard IEEE802.3af/at power supply through network cables.

Because of the advanced self-sensing algorithm for supplying power over IEEE802.3af/at, the connected PoE or non-PoE standard equipment is safely protected.

Specifications

Model Number	PE082-120-C
Port	810/100M RJ-45(POE)+210/100M RJ-45
Network Protocol	IEEE802.3, IEEE802.3u, IEEE802.3x,IEEE802.3af/at
POE	PoE Standard		IEEE802.3af /IEEE802.3at
	PoE Consumption		Max 15.4 W (IEEE 802.3af )/ 30 W (IEEE 802.3at)
	PoE Compatibility		IEEE 802.3af/at self-adaptation
	Output Voltage		DC48V
	Power Supply		1,2+ ; 3,6-
Network Cable	10Base-T: Cat3 UTP/STP(≤100m) 10Base-T: Cat6a UTP/STP(≤250m) 100Base-TX: Cat5e UTP/STP(≤100m)
Backplane Bandwidth	2Gbps
Packet Forwarding Rate	Each port 0.1488M pps
Buffer Memory	448K
MAC Size	1K
Switching	Store-and-Forward
Power Consumption	150W
Supply Voltage	AC110-260V input 52V2.88A output
Light Indicator	PWR	Power indicator light	On	Power-on
			Off	Power- off
	SW	Dial light	Off	Normal mode
			On	Vlan mode
			Flash	Extend mode
	1-10	Link light	On	Link connection
			Flash	Data transfer
			Off	Link failure
Work Environment	-20°C ~ 55°C

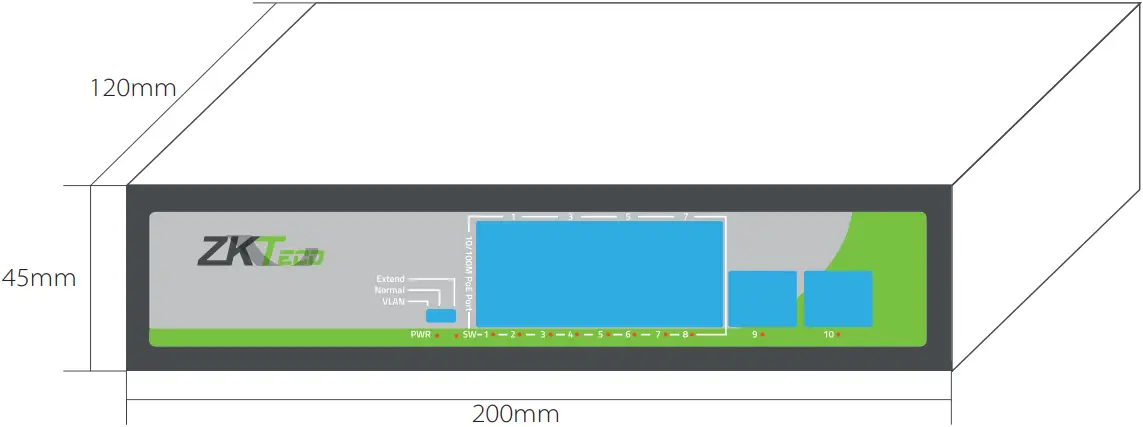

*Dimension (LWH)*	220mm120mm45mm
Weight	0.6kg
MTBF	100,000 hours
