equip GEP-0821 8 Port Gigabit PoE Switch

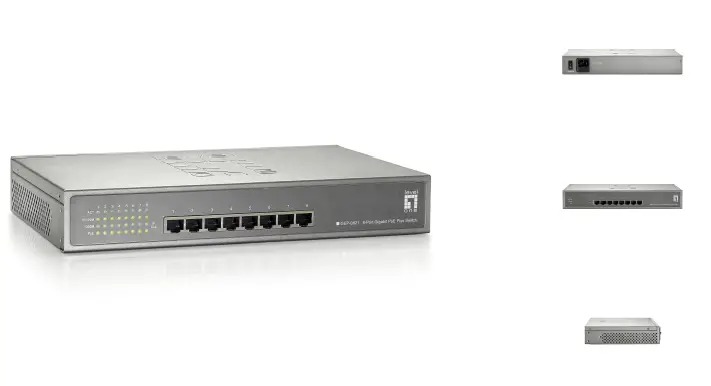

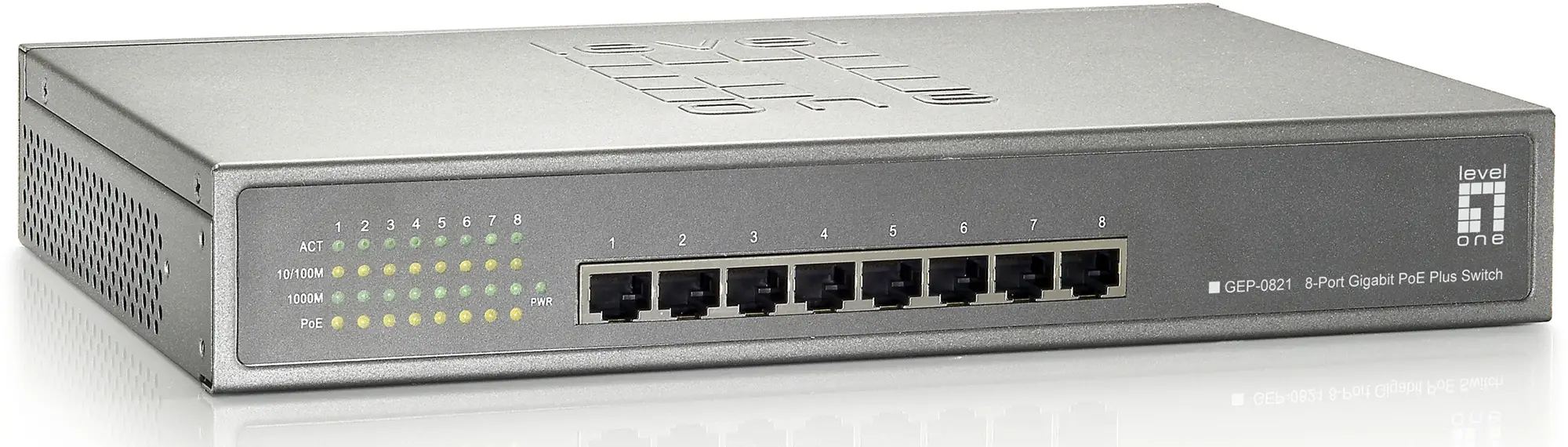

Product Images
Short Description
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- 10/100/1000Mbps wire speed transmission and reception
- 9K jumbo frames to increase data transfer rates
- Supports 8K MAC address auto-learning and auto-aging
- Auto-detection and protection of non-standard PoE devices
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- 19-inch rackmount kit included
- Total PoE power budget: 123.2W, up to 30W per port
- Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
Description
The LevelOne GEP-0821 provides 8 x 10/100/1000Mbps ports with IEEE 802.3at PoE plus support. This switch is IEEE 802.3af/at compliant, and provides power and data over a single Ethernet cable to any PoE device, with a total power budget of 123.2W, up to 30W per port. Together with Energy Efficient Ethernet (IEEE 802.3az) standard compliant, it substantially lower power consumption during periods of low-link utilization. Moreover, supports Gigabit Ethernet connectivity with 9K jumbo frames for network performance enhancement. Ideal for small businesses that prefer an affordable solution for PoE deploying infrastructure.
Additional Information
- Max. operating humidity (%) 90
- Max. operating temperature (°C) 45
- Max. storage humidity (%) 90
- Max. storage temperature (°C) 70
- Min. storage humidity (%) 10
- Min. storage temperature (°C) -40
- Backplane (Gbps) 16Gbps
- Jumbo frame (KB) 9
- MAC address table 8K
- Mount Desk mount
- Power output Per Port 56V DC, Max. 15.4 watts (IEEE
- Standards
IEEE 802.3 10-BASE-T (Ethernet) IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3ab 1000BASE-T (Gigabit Ethernet) IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az: Energy Efficient Ethernet IEEE 802.3 10-BASE-T (Ethernet) IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3ab 1000BASE-T (Gigabit Ethernet) IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus_ IEEE 802.3az: Energy Efficient Ethernet IEEE 802.3 10-BASE-T (Ethernet) IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3ab 1000BASE-T (Gigabit Ethernet) IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az: Energy Efficient Ethernet IEEE 802.3 10-BASE-T (Ethernet)_x005F_x005D_F_x005F_x000D_ IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3ab 1000BASE-T (Gigabit Ethernet) IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az: Energy Efficient Ethernet IEEE 802.3 10-BASE-T (Ethernet) IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3ab 1000BASE-T (Gigabit Ethernet) IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az: Energy Efficient Ethernet - Product weight (kg) 2
- Product breadth (mm) 280
- Product depth (mm) 185
- Product height (mm) 44
- Color Grey
- EAN 4015867163849
- Model number GEP-0821
- Package contents GEP-0821, Power Cord, 19″ Rack Mount Kit, Rubber Feet,
- Quick Installation Guide 802.3af/at PoE 8
- Grade Commercial
- Data Rate Gigabit Ethernet
- PoE Supported Yes
- Manageable No
- Fanless Yes
- Concurrent ports Total8.00
- PoE Power Budget Total123.20
- Power consumption 123.2W
