GEP-2421W630, 24-Port Gigabit PoE
Switch, 802.3at/af PoE, 630W

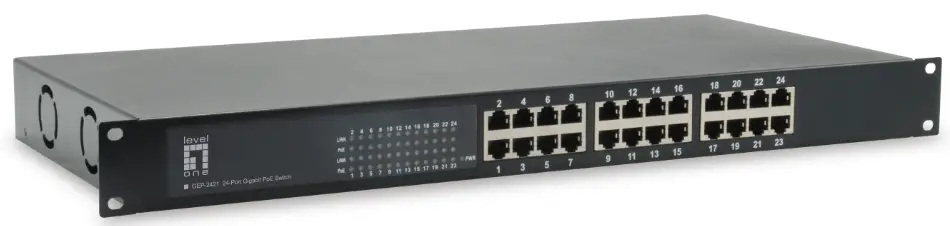

Product Images
Short Description
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- 10K jumbo frames to increase data transfer rates
- Supports 8K MAC address auto-learning and auto-aging
- 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
Description
The LevelOne GEP-2421 series are unmanaged Gigabit PoE switches with 24 RJ45 PoE ports. The switches are IEEE 802.3af/at compliant, providing power and data over a single Ethernet cable to any PoE device, with a total power budget of 150/250/380/500/630W, or up to 30W per port. Ideal for desktops, they are also 19inch rack-mountable, which provides convenient and flexible installation. The GEP-2421 switches are designed for small-to-medium businesses that require an affordable solution for deploying PoE infrastructure.
Additional Information
| Approval and compliance | EMI: EN55032:2012+AC:2013 EN55022:2010+AC:2011 AS/NZS CISPR 22 Amdt. (2010) EN61000-3-2:2014 FCC Class A CE EN61000-3-3:2013 EMS: EN55024:2010 IEC61000-4-2:2008 IEC61000-4-3:2006+A1:2007+A2:2010 IEC61000-4-4:2012 IEC61000-4-5:2005 IEC61000-4-6:2013 IEC61000-4-8:2009 IEC61000-4-11:2004EMI: EN55032:2012+AC:2013 EN55022:2010+AC:2011 AS/NZS CISPR 22 Amdt. (2010) EN61000-3-2:2014 FCC Class A CE EN61000-3-3:2013 EMS: EN55024:2010 IEC61000-4-2:2008 IEC61000-4-3:2006+A1:2007+A2:2010 IEC61000-4-4:2012 IEC61000-4-5:2005 IEC61000-4-6:2013 IEC61000-4-8:2009 IEC61000-4-11:2004EMI: EN55032:2012+AC:2013 EN55022:2010+AC:2011 AS/NZS CISPR 22 Amdt. (2010) EN61000-3-2:2014 FCC Class A CE EN61000-3-3:2013 EMS: EN55024:2010 IEC61000-4-2:2008 IEC61000-4-3:2006+A1:2007+A2:2010 IEC61000-4-4:2012 IEC61000-4-5:2005 IEC61000-4-6:2013 IEC61000-4-8:2009 IEC61000-4-11:2004EMI: EN55032:2012+AC:2013 EN55022:2010+AC:2011 AS/NZS CISPR 22 Amdt. (2010) EN61000-3-2:2014 FCC Class A CE EN61000-3-3:2013 EMS: EN55024:2010 IEC61000-4-2:2008 IEC61000-4-3:2006+A1:2007+A2:2010 IEC61000-4-4:2012 IEC61000-4-5:2005 IEC61000-4-6:2013 IEC61000-4-8:2009 IEC61000-4-11:2004 |
| Max. operating humidity (%) | 90 |
| Max. operating temperature (°C) | 50 |
| Min. operating humidity (%) | 10 |
| Backplane (Gbps) | 10/100/1000Mbps |
| Dip switch | POWER Button |
| Indicators | Power,LAN 1~24 port, PoE 1~24 port |
| Jumbo frame (KB) | 10 |
| MAC address table | 8K |
| RAM size | MX25L4005AMC-12G |
| Flash memory size | 4096 |
| Mount | 19″ rack mount |
| Power output | Per Port 56VDC, Max. 30 watts (802.3at) |
| Chipset | Realtek RTL8382L |
| Standards | IEEE 802.3 10-BASE-T (Ethernet) IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3ab 1000BASE-T (Gigabit Ethernet) IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3az (Energy Efficient Ethernet) IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet PlusIEEE 802.3 10-BASE-T (Ethernet) IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3ab 1000BASE-T (Gigabit Ethernet) IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3az (Energy Efficient Ethernet) IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet PlusIEEE 802.3 10-BASE-T (Ethernet) IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3ab 1000BASE-T (Gigabit Ethernet) IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3az (Energy Efficient Ethernet) IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet PlusIEEE 802.3 10-BASE-T (Ethernet) IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3ab 1000BASE-T (Gigabit Ethernet) IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3az (Energy Efficient Ethernet) IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
| Energy Saving | IEEE 802.3az (Energy Efficient Ethernet) |
| Product weight (kg) | 3,4 |
| Product breadth (mm) | 200 |
| Product depth (mm) | 44 |
| Product height (mm) | 440 |
| Color | Black |
| EAN | 4.01587E+12 |
| Model number | GEP-2421W630 |
| Package contents | GEP-2421W150 Bedienungsanleitung Gummifüße |
| 802.3af/at PoE | 24 |
| Switching capacity | 48Gbps |
| Grade | Commercial |
| Data Rate | Gigabit Ethernet |
| PoE Supported | Yes |
| Manageable | No |
| Fanless | No |
| Concurrent ports | Total24.00 |
| PoE Power Budget | Total630.00 |
| Power consumption | 150W/250W/380W/500W/630W |
| MTBF | 55.5khours (6 years) |
