GEP-2421W150, 24-Port Gigabit PoE
Switch, 802.3at/af PoE, 150W
Instructions

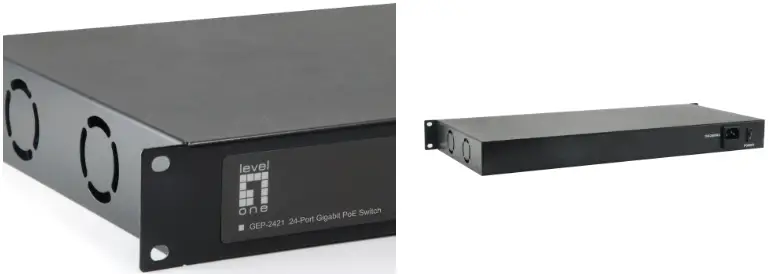

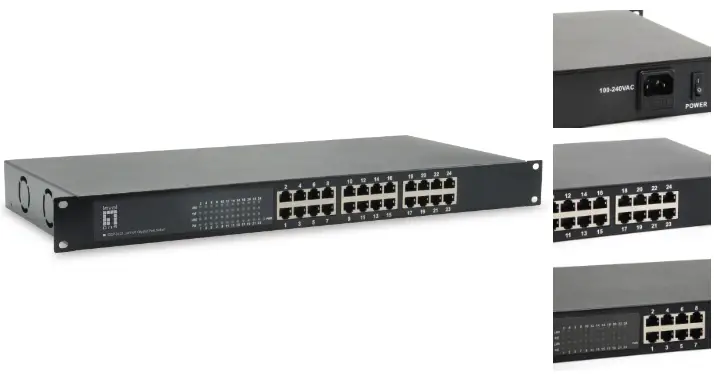

Product Images
 |  |
Short Description
IEEE 802.3af/at PoE compliant to simplify deployment and installation IEEE 802.3x Flow Control protects against lost packets for reliable data transmission 10K jumbo frames to increase data transfer rates Supports 8K MAC address auto-learning and auto-aging 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
Description
The LevelOne GEP-2421 series are unmanaged Gigabit PoE switches with 24 RJ45 PoE ports. The switches are IEEE 802.3af/at compliant, providing power and data over a single Ethernet cable to any PoE device, with a total power budget of 150/250/380/500/630W, or up to 30W per port. Ideal for desktops, they are also 19-inch rack-mountable, which provides convenient and flexible installation. The GEP-2421 switches are designed for small-to-medium businesses that require an affordable solution for deploying PoE infrastructure.
Additional Information
| Approval and compliance | FCC Part 15 Class A, CE, RoHS |
| Max. operating humidity (%) | 90 |
| Max. operating temperature (°C) | 50 |
| Max. storage temperature (°C) | 90 |
| Min. operating humidity (%) | 10 |
| Backplane (Gbps) | 10/100/1000Mbps |
| Indicators | Power, LAN 1~24 port, PoE 1~24 port |
| Jumbo frame (KB) | 10 |
| MAC address table | 8K |
| RAM size | MX25L4005AMC-12G |
| Flash memory size | 4096 |
| Mount | 19″ rack mount |
| Power output | Per Port 56VDC, Max. 30 watts (802.3at) |
| Chipset | Realtek RTL8382L IEEE 802.3 10-BASE-T (Ethernet) IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3ab 1000BASE-T (Gigabit Ethernet) IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3az (Energy Efficient Ethernet) IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3 10-BASE-T (Ethernet) IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3ab 1000BASET (Gigabit Ethernet) IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3az (Energy Efficient Ethernet) IEEE 802.3af |
| Standards | Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3 10-BASE-T (Ethernet) IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3ab 1000BASE-T (Gigabit Ethernet) IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3az (Energy Efficient Ethernet) IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3 10-BASE-T (Ethernet) IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3ab 1000BASET (Gigabit Ethernet) IEEE 802.3 x Flow Control (full-duplex flow control) IEEE 802.3az (Energy Efficient Ethernet) IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
| Energy Saving | IEEE 802.3az (Energy Efficient Ethernet) |
| Product weight (kg) | 2,9 |
| Product breadth (mm) | 200 |
| Product depth (mm) | 44 |
| Product height (mm) | 440 |
| Color | Black |
| EAN | 4.02E+12 |
| Model number | GEP-2421W150 |
| Package contents | GEP-2421W150 |
| 802.3af/at PoE | 24 |
| Switching capacity | 48Gbps |
| Grade | Commercial |
| Data Rate | Gigabit Ethernet |
| PoE Supported | Yes |
| Manageable | No |
| Fanless | No |
| Concurrent ports | Total26.00 |
| PoE Power Budget | Total150.00 |
| Power consumption | 150W/250W/380W/500W/630W |
| MTBF | 55.5khours (6 years) |
