Ruijie Reyee 28-Port Gigabit Layer 2 verwalteter PoE Switch User Guide
Before You Begin
Before You Begin
Package Contents
Packing List
| Item | Name | Quantity | Unit | Remark | ||||||||||||||
| 1 | RG-NBS3100-24GT4SFP-Phost | 1 | Set | |||||||||||||||
| 2 Mounting bracket | 2 | Piece | ||||||||||||||||
| 3 Foot pad | 4 | Piece | ||||||||||||||||
| 4 | M4x8 countersunk flat head screws(common head style) with cross recess | 6 | Piece | |||||||||||||||
| Ruijie Networks Product Management Software | 1 | Piece | Pre- installed | |||||||||||||||
| 6 | Grounding wire | 1 | Piece | |||||||||||||||
| 7 | Power cord | 1 | Piece | |||||||||||||||
| g | Power cord retention clip | 1 | Piece | |||||||||||||||
| 9 | Quick Start Guide | 1 | Copy | |||||||||||||||
| 10 | Warranty card | 1 | Copy | |||||||||||||||
You can retrieve product supporting documents at https://w;ww.ruijienetworks.com
. Click Support > Technical Documents, and download the documents you need.
Installation and Network
The RG-NBS3100-24GT4SFP-P switches follow the EIA standard dimension and can be installed in19-inch rack.
The step of installation are as follows.

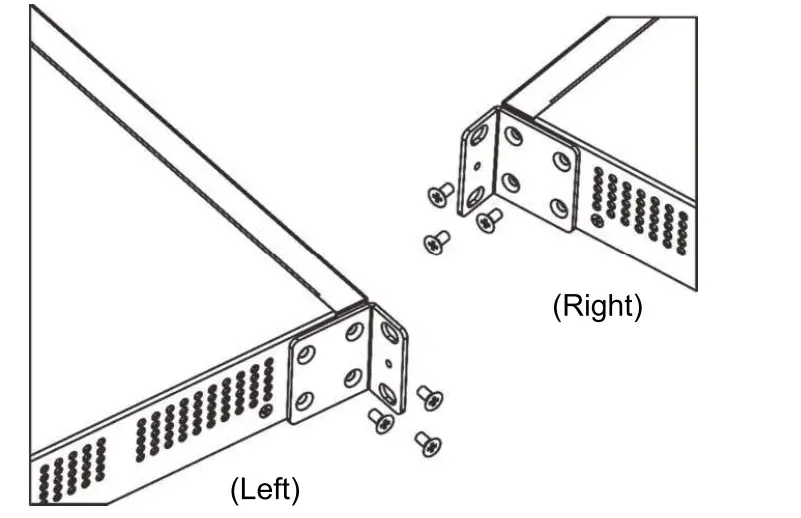

- Take out two L-shape mounting brackets and six M4x8 FMO countersunk head screws
- Attach the mounting brackets to both sides of the switch closely and fix it with three M4x8 FMO countersunk head screws.
Networking
Method 1 (recommended)

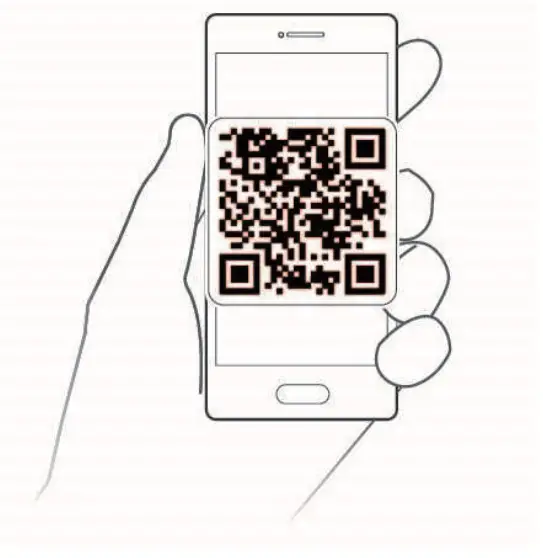

Scan the QR-code on the manual or device to download Ruijie Cloud App. Follow the guide on App to set up and configure the network
Method 2
Connect the cable to the device po% and access http://10.44.77.200 to perform configuration.

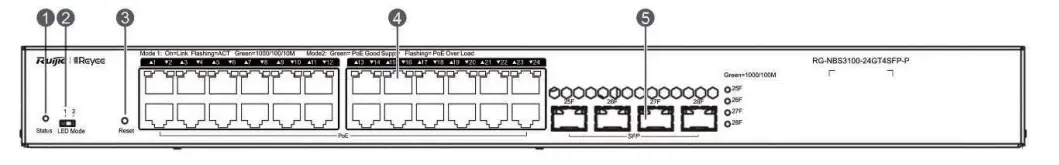

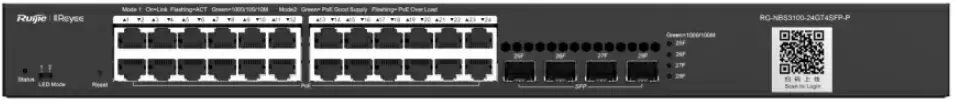

Port Information
| Note: |
|
Specification
| Specifications | RG-NBS3100-24GT4SFP-P |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af, IEEE802.3at |
| Interface | 24*10/100/1000Mbps PoE/PoE+ ports |
| Switching Capacity | 4*100/1000 Mbps SFP ports56 Gbps |
| Power Consumption | The overall maximum output power of PoE/PoE+ is 370W.The overall maximum output power is 443W |
| Dimensions (W x D x H)) | 440mm x 293mm x 43.6mm |
| Operating Environment | Temperature0 °C – 50 °C |
| Humidity 10% – 90% RH, non-condensing | |
| Storage Environment | Temperature -40 °C – 70 °C |
| Humidity 5% – 95% RH, non-condensing |
CE Warning
Operation of this equipment in a residential environment could cause radio interference.
