IGP-0431

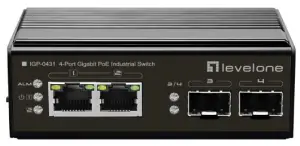

4-Port Gigabit PoE Industrial Switch, DIN-Rail, -40°C to 75°C

Overview

The IGP-0431 is a 4-port industrial full gigabit PoE switch that supports up to 2 *10/100/1000M 90W high power PoE ports and 2*1000M SFP ports.
Fiber ports provide 2 modes through the dip switch, 100M mode and 1000M mode to adapt to various needs.
It supports the PoE Auto-check function, which is specially designed to solve the problems of equipment frozen. It can automatically detect the frozen PD equipment and restart the ports’ output of PSE, and restart the PD device. It greatly reduces the maintenance difficulty of engineering.
It has the characteristics of reliable work, strong and durable, high-cost performance, and so on. It can be used in security network video monitoring system, network engineering, and other occasions.


Features

•  With 2*10/100/1000M PoE ports and 2*1000M SFP ports;
• Provides 2 high power PoE ports, up to 90W single port;
•  Fiber ports provide 2 modes through the dip switch, 100M mode and 1000M mode to adapt to various needs;
•  Supports relay alarm for power off, network broken, and PoE off;
•  Supports PoE Auto-check function, which is specially designed to solve the problems of equipment frozen.It can automatically detect the frozen PD equipment and restart the ports’ output of PSE, and restart the PD device. It greatly reduces the maintenance difficulty of engineering;
•  Supports 6KV surge protection, 6KV contact / 8KV air ESD protection;
•  Supports working temperature -40℃～75℃.

Specifications

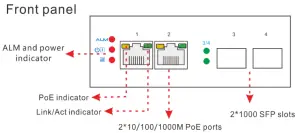

Panel diagram

Attention: This product must be well-grounded against lightning. please use better than 20# cable to connect the grounding terminal and ground.

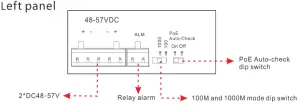

Attention 2: 100M and 1000M modes: It can be selected by dip switch.
Attention3: PoE Auto-check: PoE Auto-check function is open/closed by dip switch.
The switch always auto-detect 1-2 ports whether frozen, if some ports are frozen, the switch will restart them, but other ports are unaffected.

Application

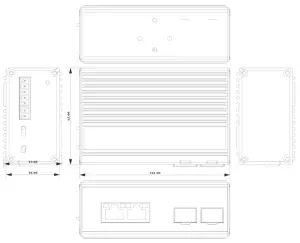

Dimensions
