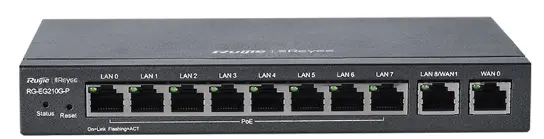

Getic Reyee 10-Port Gigabit Layer 2 Managed PoE Switch
Preparing for Installation
Package Contents
| Item | Quantity | Remark |
| Router | 1 | |
| Footpad | 4 | |
| Power Adapter | 1 | |
| Power cord | 1 | |
| User Manual | 1 | |
| Warranty Card | 1 |
Log in to the official website of Ruijie Networks (https://www.ruijienetworks.com) and enter the corresponding product category to find the product and download the related documentation.
Installation
Installation Procedure

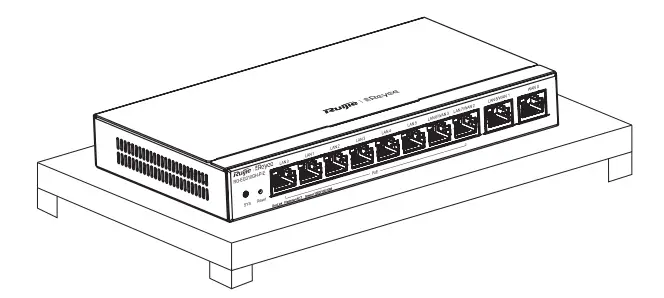

- Step 1 Lay the router flat on a workbench to ensure good ventilation.
- Step 2 Connect the adapter to the DC input plug.
Network Configuration
Method 1 (Recommended)

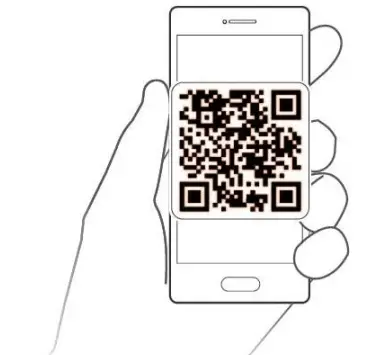

Scan the QR code on the device or in the manual to download the Ruijie Cloud App. Perform the intelligent networking and complete the network configuration based on the instructions on the App.
Method 2
Connect the client to any LAN port of the device with a cable and visit http:/1192.168.110.1 for network configuration. (Google Chrome browser is recommended.)

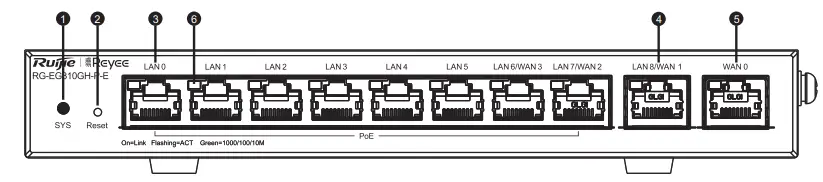

FRONT PANEL

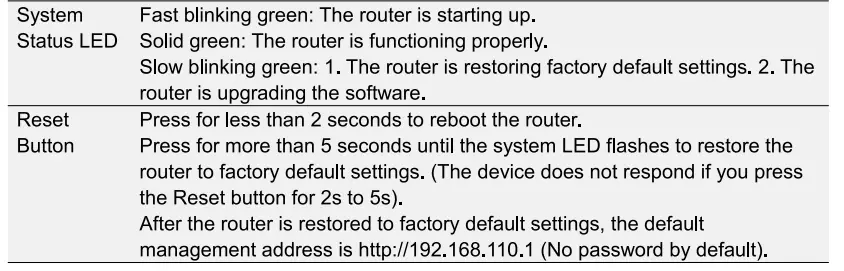

- System Status LED
- Reset Button
- LAN Port
- LANWAN Switchable Port
- WAN Port
- Link/ACT Port LED

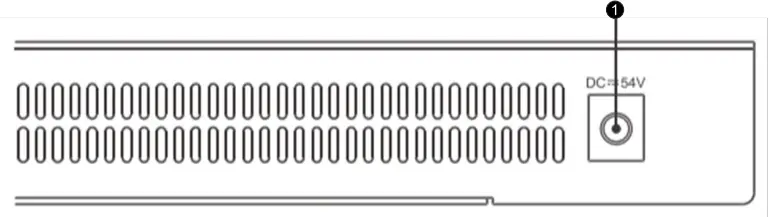

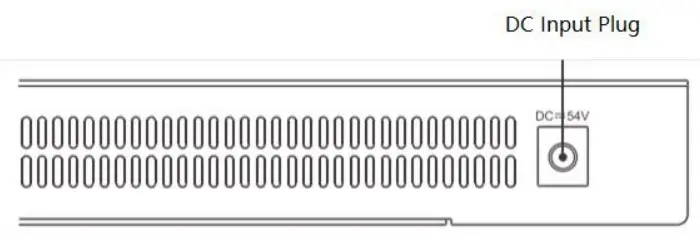

REAR PANEL
DC Input Plug
Specifications
| Model | RG-EG31OGH-P-E | |
| Port Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at | |
|
Ports | Ten 10/100/1000 Base-T ports, up to 4 WAN ports. (Default: 1 WAN port and 9 LAN ports. LAN 6, LAN 7 and LAN 8 can be switched to the WAN port.) | |
| PoE Power | PoE output power 110 W | |
| Maximum Power Consumption | < 130 W | |
|
Power Supply | Adapter AC input: Rated voltage range: 100 V AC to 240 V AC Maximum voltage range: 90 V AC to 264 V AC Frequency: 50 Hz/60 Hz Rated current: 2.5 A | |
|
Adapter DC Connector Specifications: | Outer diameter: 5.5 mm (0.22 in.) Inner diameter: 2.1 mm (0.08 in.) Depth: 10.0 mm (0.39 in.) ± 0.5 mm (0.02 in.) Polarity symbol: the center (tip) of the output plug is positive(+) and the barrel (ring) of the output is negative(-). | |
| Dimensions (W x D x H) | 202 mm x 109.5 mm x 28 mm (7.95 in. x 4.31 in. x 1.10 in., with the panel) 202 mm x 108 mm x 28 mm (7.95 in. x 4.25 in. x 1.10 in., without the panel) | |
| Operating Environment | Operating Temperature | 0°c to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% RH (non-condensing) | |
| Storage Environment | Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Storage Humidity | 5% to 95% RH (non-condensing) | |
CE Waning: The device may cause radio interference in the living environment.
