POR-1222 2-Port Gigabit PoE-Plus Repeater
User Guide
POR-1222 2-Port Gigabit PoE-Plus Repeater
POR-1222, 2-Port Gigabit PoE-Plus Repeater, Cascadable,Outdoor

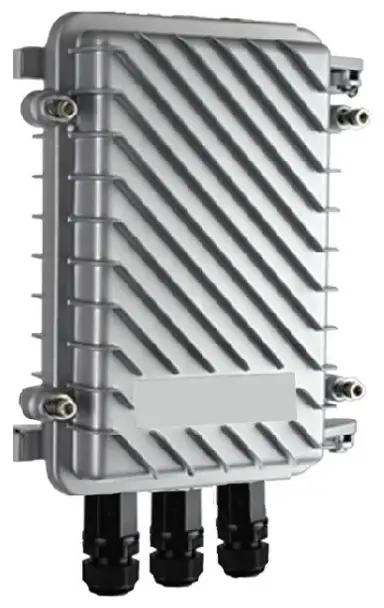

Product Images
Short Description
- High Power PoE compliant to simplify deployment and installation
- Multiple PoE repeaters can be deployed by daisy chain to extend range
- Forwards Power over Ethernet (PoE) to remote device
- Forwards 802.3af/High-Power PoE to remote device
- Extends PoE connection for another 100 meters
- No additional power supply required
- Simple Plug and Play installation
- Weatherproof IP66-rated housing
Description
Extend the reach of your Gigabit PoE-Plus devices. For system integrators looking for a professional solution to help extend their Outdoor Gigabit PoE (802.3af/at) network, the LevelOne POR-1222 is the perfect accessory to increase your Gigabit network performance. This 2-port repeater, make it more easier now to add more devices to the network for greater deployment flexibility. Normal cable runs only reach 100 meters, but with the POR-1222 installers can extend the PoE network performance up to 200 meters. Furthermore, you can triple your range or even more by daisy-chaining* multiple PoE repeaters. Simple yet durable, no software required. As a Gigabit PoE-Plus Repeater, the POR-1222 receives all power from the Power Sending Equipment (PSE), such as a Gigabit PoE-Plus switch. This means that the POR-1222 uses no external power supply, making it the most flexible option for system integrators looking for an easy, affordable solution to increase the distance to the attached devices on a network. The POR-1222 has 3 RJ-45 ports for easy deployment, 1 “IN” port that accepts the power and data for the first 100 meters, and 2 “OUT” ports that boosts and extends the power and data an additional 100 meters. The POR-1222 is a long-ranged solution for deploying PoE IP Digital Signage and any Gigabit PoE PD powered by 802.3at Gigabit PSE.
* Maximum distance depends on the required Wattage of the PD.
Additional Information
| Max. operating humidity (%) | 95 |
| Max. operating temperature (°C) | 50 |
| Min. operating humidity (%) | 5 |
| Indicators | Power, PoE In, PoE Out 1 |
| Mount | Pole mount |
| Pin assignment and polarity | 1/2 (+), 3/6 (-) |
| Standards | IEEE 802.3 10Base-T, Ethernet IEEE 802.3u 100Base-TX,Fast Ethernet IEEE 802.3x Ethernet Flow Control IEEE 802.3 af/at PoE |
| Features | PoE Extension for another 100 meters at 100Mbps |
| Product weight (kg) | 1.08 |
| Product breadth (mm) | 200 |
| Product depth (mm) | 270 |
| Product height (mm) | 70 |
| Color | Silver |
| EAN | 4.01587E+12 |
| Model number | POR-1222 |
| Package contents | POR-1222 Mounting Kit Quick Installation Guide |
