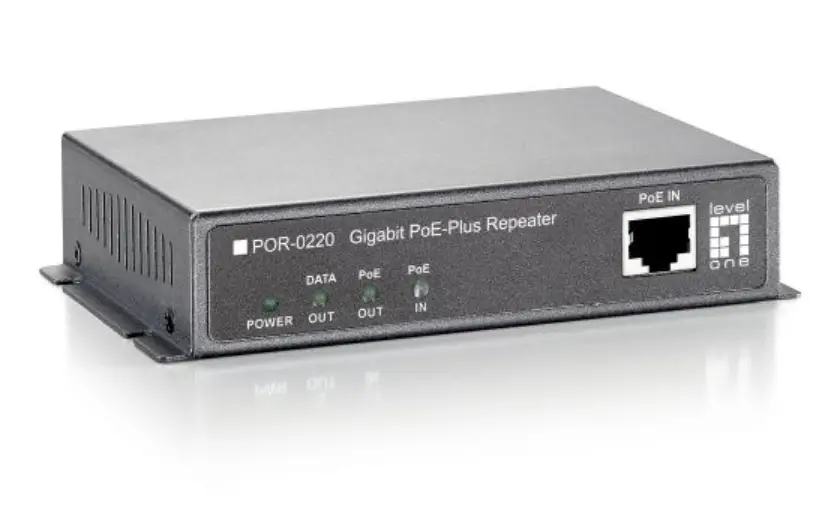

level one POR 0220 Gigabit PoE Plus Repeater

Short Description

1. High Power Midspan PoE compliant to simplify deployment and installation

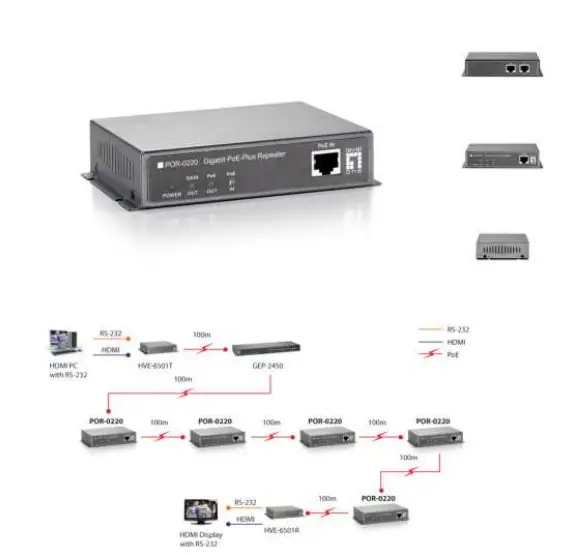

2. Multiple PoE repeaters can be deployed by daisy chain to extend range
3. Forwards 802.3af/802.3at/High-Power PoE to remote device
4. Built-in 2 output ports for 1 PoE and 1 non-PoE devices
5. Extends Gigabit PoE connection for another 100 meters
6. No additional power supply required
7. Simple Plug and Play installation

Description

Extend the reach of your Gigabit PoE-Plus devicesFor system integrators looking for a professional solution to help extend their Gigabit PoE (802.3af/at) network, POR-0220 is the perfect accessory to increase your network performance.Normal cable runs only reach 100 meters, but with POR-0220 installers can extend the PoE network performance up to 200 meters. Furthermore, you can triple your range or even more by daisy-chaining* multiple PoE repeaters.* Maximum distance depends on the required Wattage of the
PD.Simple yet durable, no software required As a Gigabit PoE-Plus Repeater, POR-0220 receives all power from the Power Sending Equipment (PSE), such as a Gigabit PoE-Plus switch. This means that POR-0220 uses no external power supply, making it the most flexible option for system integrators looking for an easy, affordable solution to increase the distance to the attached devices on a network. POR-0220 has 3 RJ-45 ports for easy deployment, 1 “IN” port that accepts the power and data for the first 100 meters, and 2 “OUT” ports for 1 PoE (power + data) and 1 non-PoE (data only) installation, that boosts and extends the device an additional 100 meters. With a durable metal housing, POR-0220 fits into any tight deployments.ApplicationsPOR-0220 is a long-ranged solution for deploying PoE IP Digital Signage and any Gigabit PoE PD powered by 802.3at Gigabit PSE.

Additional Information

• Max. operating humidity (%) 95
• Max. operating temperature (°C) 50
• Min. operating humidity (%) 5
• Indicators Power, PoE In, PoE Out
• Mount Wall mount
• Standards
• IEEE 802.3 10Base-T, Ethernet IEEE 802.3u 100Base-TX,
• Fast Ethernet IEEE802.3ab 1000Base-T, Gigabit Ethernet
• IEEE 802.3x Ethernet Flow Control
• Product weight (kg) 0,4
• Product breadth (mm) 130
• Product depth (mm) 90
• Product height (mm) 28
• Color Grey
• EAN 4015867185612
• Model number POR-0220
