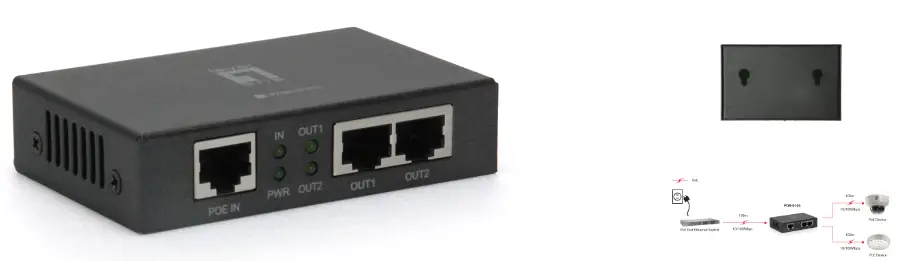

POR-0103 PoE+ Repeater 2 Ports LevelOne
Instructions
Product Images
Short Description
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- Auto-detection and protection of non-standard PoE devices
- Built-in 2 PoE ports for PoE device3.
- No additional power supply required
- Simple Plug and Play installation
Description
For system integrators looking for a professional solution to help extend their PoE network, POR-0103 is the perfect accessory to increase your Power over Ethernet network performance. LevelOne POR-0103, a 2-Port PoE Repeater requiring neither configuration nor electrical power, is an innovative transmitter to pass on both data and power xtend to another 100 meters. It delivers both data and power to two PoE network devices such as WLAN Access Points, Network Cameras and other appliances with fast peed to the network for greater deployment flexibility.
Additional Information
| Max. operating humidity (%) | 95 |
| Max. operating temperature (°C) | 50 |
| Min. operating humidity (%) | 5 |
| Indicators | Power, PoE In, PoE Out |
| Mount | Wall mountIEEE 802.3 10Base-T, Ethernet IEEE 802.3u 100Base-TX, Fast Ethernet IEEE 802.3x Ethernet Flow Control IEEE802.3af Power over Ethernet (PoE) IEEE 802.3at Power IEEE 802.3u 100Base-TX, Fast Ethernet IEEE 802.3x Ethernet Flow Control IEEE 802.3af Power over Ethernet |
| Standards | over Ethernet Plus (PoE+)IEEE 802.3 10Base-T, Ethernet |
| Product weight (kg) | 0,2 |
| Product breadth (mm) | 57 |
| Product depth (mm) | 21 |
| Product height (mm) | 91 |
| Color | Grey |
| EAN | 4.01587E+12 |
| Model number | POR-0103 |
| Package contents | POR-0103 Quick Installation Guide |
| Fast Ethernet RJ45 | 3 |
