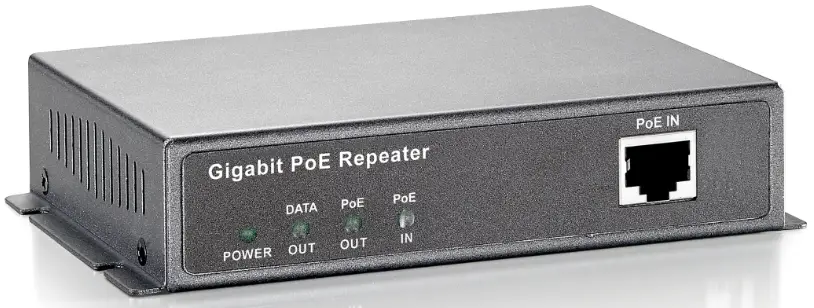

POR-0311, Gigabit PoE Repeater,
802.3af/at/bt
Instructions
Product Images
Short Description
- High Power PoE compliant to simplify deployment and installation
- Multiple PoE repeaters can be deployed by daisy chain to extend range
- Forwards Power over Ethernet (PoE) to remote device
- Forwards 802.3af/at/bt High-Power PoE to remote device
- Extends PoE connection for another 100 meters
- No additional power supply required
- Simple Plug and Play installation
Description
Extend the reach of your Gigabit PoE-Plus Plus devices. For system integrators looking for a professional solution to help extend their Gigabit PoE (802.3af/at/bt) network, the LevelOne POR-0311 is a perfect accessory to increase your network performance. Normal cable runs only reach 100 meters, but with the POR-0311 installers can extend the PoE network performance up to 200 meters. Furthermore, you can triple your range or even more by daisy-chaining* multiple PoE repeaters. Simple yet durable, no software required. As a PoE-Plus Plus Repeater, the POR-0311 receives all power from the Power Sending Equipment (PSE), such as a PoE-Plus Plus switch. This means that the POR-0311 uses no external power supply, making it the most flexible option for systems integrators looking for an easy, affordable solution to increase the distance to attached devices on a network. The POR-0311 is a long-ranged solution for deploying PoE IP Camera and any Gigabit Ethernet PoE PD powered by 802.3bt PSE. * Maximum distance depends on the required Wattage of the PD.
Additional Information
| Max. operating humidity (%) | 90 |
| Max. operating temperature (°C) | 40 |
| Indicators | POE in/POE Out Link |
| Mount | Wall mount IEEE 802.3af/at/bt IEEE 802.3 10Base-T Ethernet IEEE 802.3u |
| Standards | 10Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3z 1000Base-X Gigabit Ethernet |
| Port Configuration | RJ-45 x 3 Multiple PoE repeaters can be deployed by daisy chain to extend range Forwards Power over Ethernet (PoE) to remote device |
| Features | Forwards 802.3af/at/bt High-Power PoE to remote device Extends PoE connection for another 100 meters |
| Product weight (kg) | 100 |
| Product breadth (mm) | 120 |
| Product depth (mm) | 20 |
| Product height (mm) | 0.2 |
| Color | Black |
| EAN | 4.02E+12 |
| Model number | POR-0311 |
| Package contents | POR-0311 Quick Installation Guide |
