POR-0220 Gigabit PoE-Plus
Repeater, Cascadable, LevelOne
Instructions

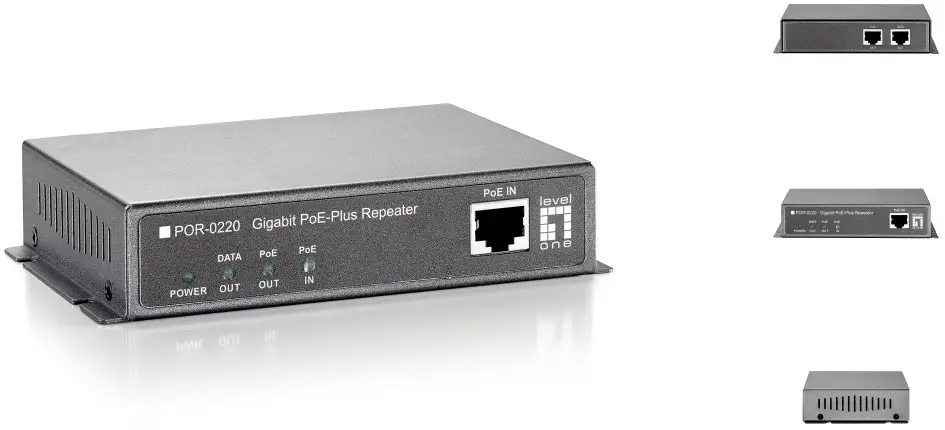

Product Images
 |  |
Short Description
- Multiple PoE repeaters can be deployed by daisy chain to extend range
- High Power Midspan PoE compliant to simplify deployment and installation
- Forwards 802.3af/802.3at/High-Power PoE to remote device
- Built-in 2 output ports for 1 PoE and 1 non-PoE devices
- Extends Gigabit PoE connection for another 100 meters
- No additional power supply required
- Simple Plug and Play installation
Description

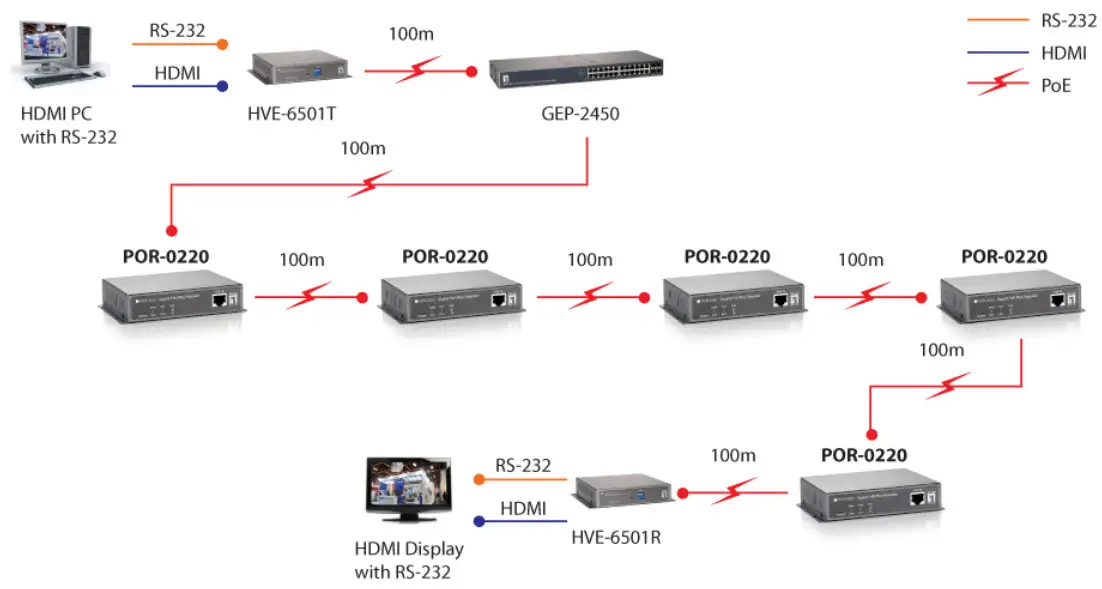

Extend the reach of your Gigabit PoE-Plus devicesFor system integrators looking for a professional solution to help extend their Gigabit PoE (802.3af/at) network, POR-0220 is the perfect accessory to increase your network performance.Normal cable runs only reach 100 meters, but with POR-0220 installers can extend the PoE network performance up to 200 meters. Furthermore, you can triple your range or even more by daisy-chaining* multiple PoE repeaters.* Maximum distance depends on the required Wattage of the PD.Simple yet durable, no software required As a Gigabit PoE-Plus Repeater, POR-0220 receives all power from the Power Sending Equipment (PSE), such as a Gigabit PoE-Plus switch. This means that POR-0220 uses no external power supply, making it the most flexible option for system integrators looking for an easy, affordable solution to increase the distance to the attached devices on a network. POR-0220 has 3 RJ-45 ports for easy deployment, 1 “IN” port that accepts the power and data for the first 100 meters, and 2 “OUT” ports for 1 PoE (power + data) and 1 non-PoE (data only) installation, that boosts and extends the device an additional 100 meters. With a durable metal housing, POR-0220 fits into any tight deployments.ApplicationsPOR-0220 is a long-ranged solution for deploying PoE IP Digital Signage and any Gigabit PoE PD powered by 802.3at Gigabit PSE.
Additional Information
| Max. operating humidity (%) | 95 |
| Max. operating temperature (°C) | 50 |
| Min. operating humidity (%) | 5 |
| Indicators | Power, PoE In, PoE Out |
| Mount | Wall mount |
| Standards | IEEE 802.3 10Base-T, Ethernet IEEE 802.3u 100Base-TX, Fast Ethernet IEEE802.3ab 1000Base-T, Gigabit Ethernet IEEE 802.3x Ethernet Flow Control |
| Product weight (kg) | 0,4 |
| Product breadth (mm) | 130 |
| Product depth (mm) | 90 |
| Product height (mm) | 28 |
| Color | Grey |
| EAN | 4.01587E+12 |
| Model number | POR-0220 |
| Package contents | POR-0220 Quick Installation Guide |
| 802.3af/at PoE | 2 |
