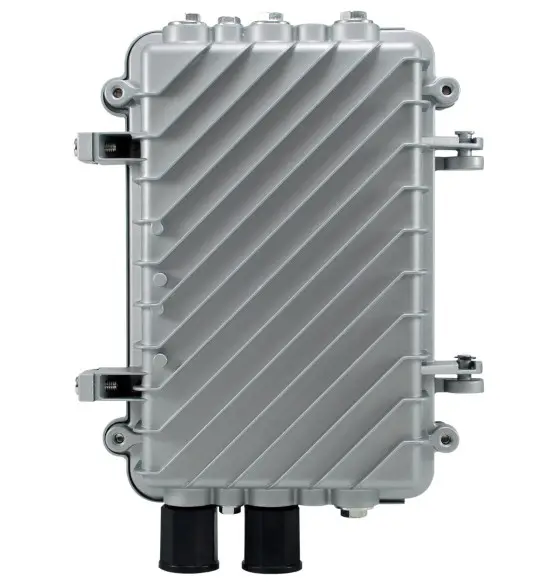

POR 1220 Outdoor Gigabit plus PoE Repeater
Instruction Manual
Short Description
- High Power PoE compliant to simplify deployment and installation
- Multiple PoE repeaters can be deployed by daisy chain to extend range
- Forwards Power over Ethernet (PoE) to remote device
- Forwards 802.3af/High-Power PoE to remote device
- Extends PoE connection for another 100 meters
- No additional power supply required
- Simple Plug and Play installation
- Weatherproof IP66-rated housing
Description
Extend the reach of your Gigabit PoE-Plus devices. For system integrators looking for a professional solution to help extend their Outdoor Gigabit PoE (802.3f/at) network, POR-1220 is the perfect accessory to increase your network performance. Normal cable runs only reach 100 meters, but with the POR-1220 installers can extend the PoE network performance up to 200 meters. Furthermore, you can triple your range or even more by daisy-chaining* multiple PoE repeaters. Simple yet durable, no software required. As a Gigabit PoE-Plus Repeater, the POR-1220 receives all power from the Power Sending Equipment (PSE), such as a Gigabit PoE-Plus switch. This means that the POR-1220 uses no external power supply, making it the most flexible option for system integrators looking for an easy, affordable solution to increase the distance to the attached devices. POR-1220 has 3 RJ-45 ports for easy deployment, 1 “IN” port that accepts the power and data for the first 100 meters, and 2 “OUT” ports for 1 PoE (power + data) and 1 non-PoE (data only) installation, that boosts and extends the device an additional 100 meters. The POR-1220 is a long-ranged solution for deploying PoE IP Digital Signage and any Gigabit PoE PD powered by 802.3at Gigabit PSE.
Additional Information
| Max. operating humidity (%) | 95 |
| Max. operating temperature (°C) | 50 |
| Min. operating humidity (%) | 5 |
| Indicators | Power, PoE In, PoE Out 1 |
| Mount | Pole mount |
| Pin assignment and polarity | 1/2 (+), 3/6 (-) |
| Standards | IEEE 802.3 10Base-T, Ethernet IEEE 802.3u 100Base-TX,Fast Ethernet IEEE 802.3x Ethernet Flow Control IEEE 802.3 af/at PoE |
| Port Configuration | RJ45 |
| Features | PoE Extension for another 100 meters at 100Mbps |
| Product weight (kg) | 1.08 |
| Product breadth (mm) | 200 |
| Product depth (mm) | 270 |
| Product height (mm) | 70 |
| Color | Silver |
| EAN | 4.01587E+12 |
| Model number | POR-1220 |
| Package contents | POR-1220 Mounting Kit Quick Installation Guide |
