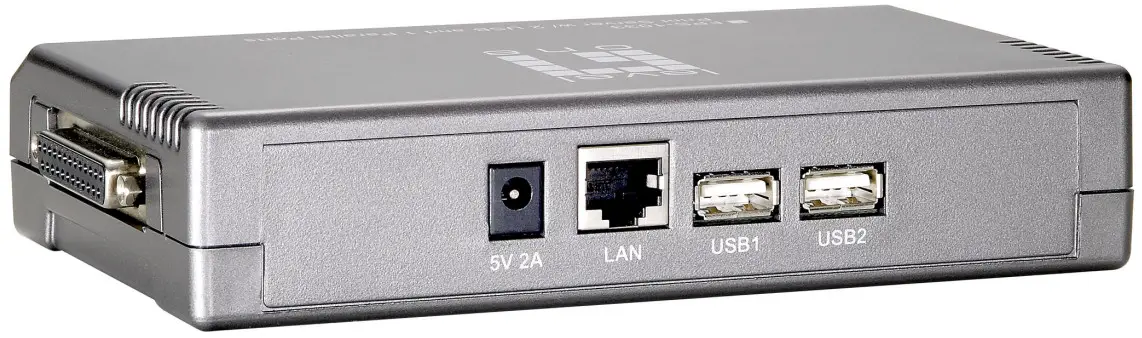

FPS-1033 Multi-Port Print Server
Instructions
Product Images
Short Description
- Multi-Port print server for network print sharing
- USB 2.0 interface
- Simple setup with user-friendly interface
- Support multiple network printing protocols
- Support multiple operating systems
Description
Product Overview The LevelOne FPS-1033 print server is an ideal network printing solution for small offices, home offices, schools and other businesses that require printer sharing over the same network. The FPS-1033 is a multi-port Fast Ethernet Print Server and provides network printer sharing for both USB and Parallel printers.Multi Printer Support The FPS-1033 Multi Port print server provides simultaneous connectivity to two USB and one Parallel printers. It supports the USB 2.0 standard for high-speed printing. Multi OS and Network Printing Protocol Support The FPS-1033 Multi Port Print Server supports Windows ME, 2000,2003 and XP operating systems as well as Mac OS 8.1 and higher and UNIX/Linux and Netware (Bindery/NDS). Network Print Protocol supported includes TCP/IP, IPX, NetBEUI, AppleTalk, LPR, SMB over TCP/IP and IPP for flexible use with different network clients connected to the same office network.Easy Installation Wizard The LevelOne FPS-1033 is easily configurable using a Web Browser or Windows based configuration program included with the CD-ROM. The print server is easily managed through a Web based user interface and the firmware is upgradeable through TFTP, the windows setup program or the Web based user interface.
Additional Information
| Approval and compliance | CE, FCC Class B |
| Max. operating humidity (%) | 70 |
| Max. operating temperature (°C) | 50 |
| Max. storage humidity (%) | 80 |
| Max. storage temperature (°C) | 65 |
| Min. storage temperature (°C) | -5 |
| Compatible operating systems | Windows ME, 2000, XP , Vista, 7 Mac OS 8.1 or higher UNIX/Linux |
| DC start | Yes |
| Indicators | Power/Status, Link, Activity |
| Power supply | Power adapter |
| Standards | IEEE 802.3 10Mbps Ethernet IEEE 802.3u 100Mpbs Fast Ethernet |
| Features | Network Print Protocol Support : TCP/IP, IPX, NetBEUI, AppleTalk, LPR, SMB over TCP/IP, Internet Printing Protocol (IPP), RAW |
| Product weight (kg) | 255 |
| Product breadth (mm) | 180 |
| Product depth (mm) | 100 |
| Product height (mm) | 35 |
| Color | Grey |
| EAN | 4.01587E+12 |
| Model number | FPS-1033 |
| Package contents | FPS-1033 Netzadapter Quick Installation Guide Ressource CD (Bedienungsanleitung, Hilfsprogramm, Treiber) |
| Fast Ethernet RJ45 | 1 |
| Parallel | D-sub 25-pins Female |
