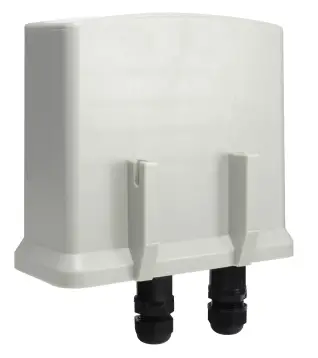

POR-1100 Outdoor PoE Repeater,
Cascadable

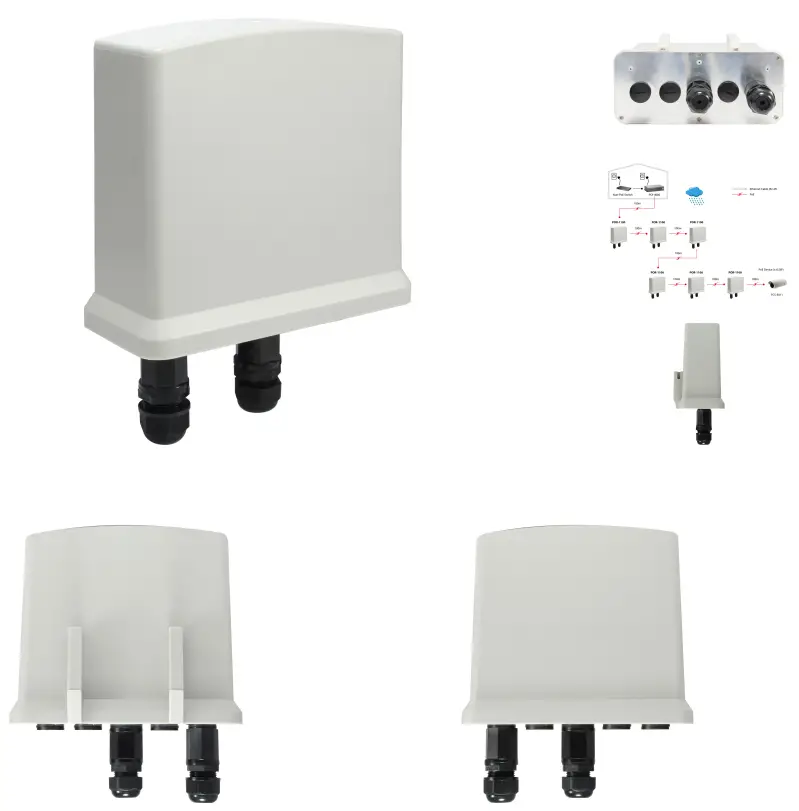

Product Images
Short Description
- High Power Midspan PoE compliant to simplify deployment and installation
- Multiple PoE repeaters can be deployed by daisy chain to extend range
- Forwards Power over Ethernet (PoE) to remote device
- Forwards 802.3af/High-Power PoE to remote device
- Extends PoE connection for another 100 meters
- No additional power supply required
- Simple Plug and Play installation
- Weatherproof IP65-rated housing 8.
Description
Extend the reach of your PoE devicesPOR-1100 is the perfect accessory to increase your Power over Ethernet network performance. Normal cable runs only reach 100 eters, but with POR-1100 installers can extend the PoE network performance up to 200 meters!Simple yet durable, no software requiredAs a PoE Repeater, POR-1100 receives all power from the Power Sending Equipment (PSE), for example, a PoE switch.
This means that POR-1100 uses no external power supply, making it the most flexible option for system integrators looking for an easy, affordable solution to increase the distance to the attached devices.ApplicationsPOR-1100 is the perfect solution for taking Ethernet to areas such as roof tops, factory floors, airports manufacturing plants, and large warehouses.
Additional Information
| Max. operating humidity (%) | 90 |
| Max. operating temperature (°C) | 50 |
| Min. operating humidity (%) | 10 |
| Power output | PoE power, 56VDC |
| Standards | IEEE 802.3af, midspan PoE PSE compliant, SELV standard |
| Features | IP-65 ODU Enclosure |
| Product weight (kg) | 0,7 |
| Product breadth (mm) | 200 |
| Product depth (mm) | 110 |
| Product height (mm) | 240 |
| Color | White |
| EAN | 4.01587E+12 |
| Model number | POR-1100 |
| Package contents | POR-1100 |
| 802.3af PoE | 1 |
| Power consumption | less than 2 watt |
