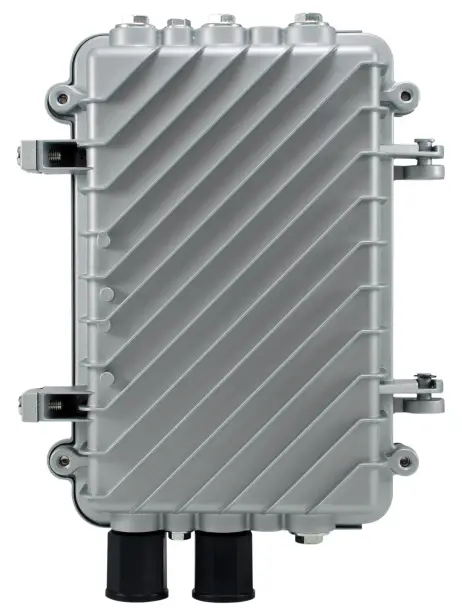

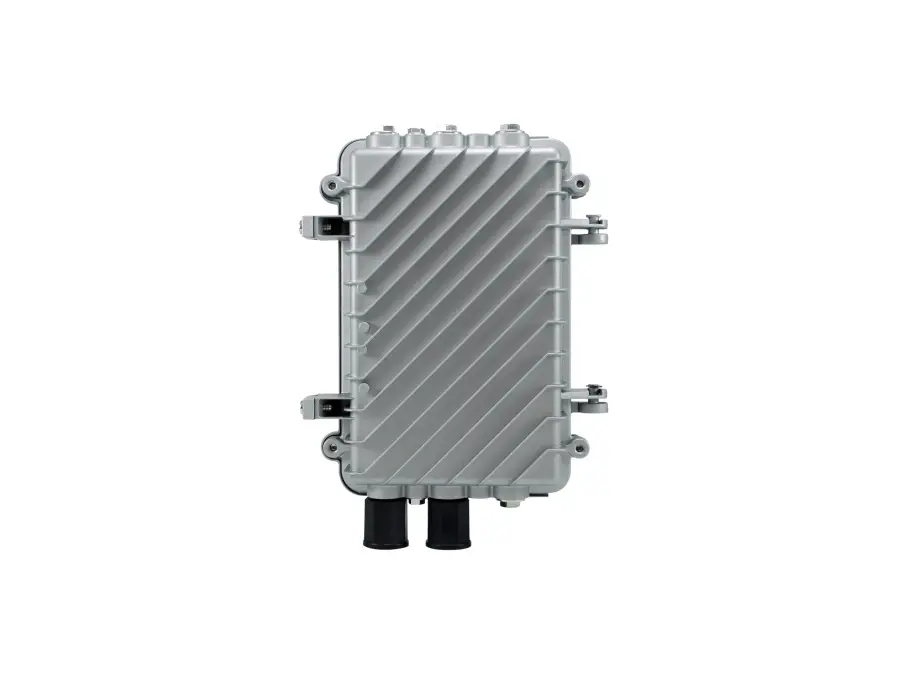

POR-1100, Outdoor PoE Repeater,
Cascadable
https://www.equip-info.net/equipinfo_en/por-1100-outdoor-poe-repeater-cascadable-55201307301
Product Images
Short Description
- High Power PoE compliant to simplify deployment and installation
- Multiple PoE repeaters can be deployed by daisy chain to extend range
- Forwards Power over Ethernet (PoE) to remote device
- Forwards 802.3af/High-Power PoE to remote device
- Extends PoE connection for another 100 meters
- No additional power supply required
- Simple Plug and Play installation
- Weatherproof IP66-rated housing
Description
Extend the reach of your PoE devices. The LevelOne POR-1100 is the perfect accessory to increase your Power over Ethernet network performance. Normal ethernet cable runs only reach 100 meters, but with POR-1100 installers can extend the PoE network performance up to 200 meters! Simple yet durable, no software required. As a PoE Repeater, POR-1100 receives all power from the Power Sending Equipment (PSE), for example, a PoE switch. This means that POR-1100 uses no external power supply, making it the most flexible option for system integrators looking for an easy, affordable solution to increase the distance to the attached devices. The POR-1100 is the perfect solution for taking Ethernet to areas such as roof tops, factory floors, airports manufacturing plants, and large warehouses.
Additional Information
| Max. operating humidity (%) | 90 |
| Max. operating temperature (°C) | 50 |
| Min. operating humidity (%) | 10 |
| Indicators | PoE IN PoE OUT |
| Mount | Pole mount |
| Pin assignment and polarity | 1/2 (+), 3/6 (-) |
| Power output | PoE |
| Standards | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3af PoE |
| Features | 802.3af/High-Power PoE to remote device |
| Product weight (kg) | 1.08 |
| Product breadth (mm) | 270 |
| Product depth (mm) | 200 |
| Product height (mm) | 70 |
| Color | Silver |
| EAN | 4.01587E+12 |
| Model number | POR-1100 |
| Package contents | POR-1100 Mounting Kit Quick Installation Guide |
