POR-1102 2-Port Outdoor PoE Repeater
User Guide

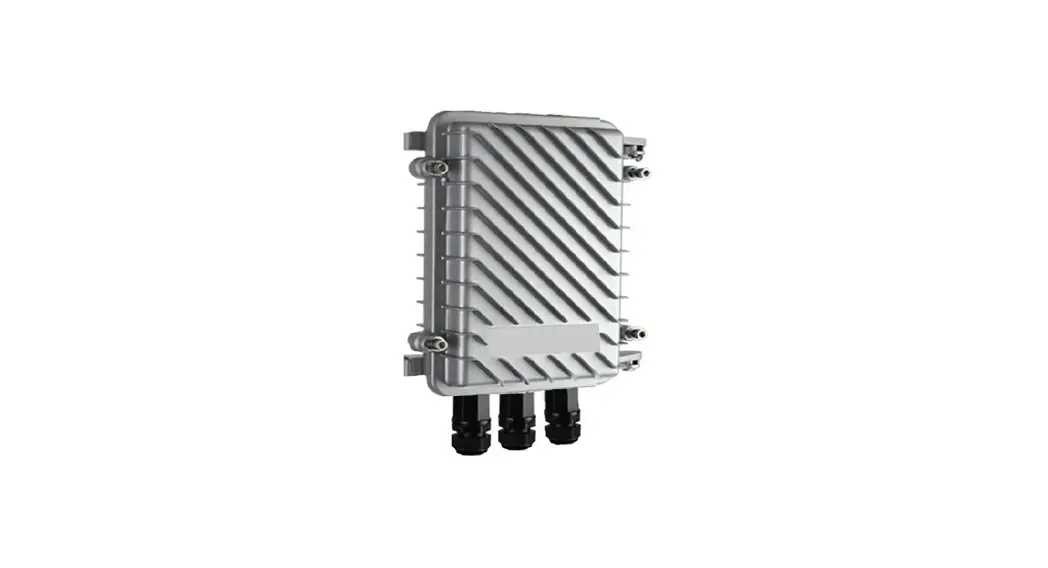

Product Images
Short Description
- High Power PoE compliant to simplify deployment and installation
- Multiple PoE repeaters can be deployed by daisy chain to extend range
- Forwards Power over Ethernet (PoE) to remote device
- Forwards 802.3af/High-Power PoE to remote device
- Extends PoE connection for another 100 meters
- No additional power supply required
- Simple Plug and Play installation
- Weatherproof IP66-rated housing
Description
Extend the reach of your PoE devices. The LevelOne POR-1102 is the perfect accessory to increase your Power over Ethernet network performance. As a 2-port repeater, it’s now easier to add more devices to the network for greater deployment flexibility. Simple yet durable, no software required. As a PoE Repeater, the POR-1102 receives all power from the Power Sending Equipment (PSE), for example, a PoE switch. This means that the POR-1102 uses no external power supply, making it the most flexible option for system integrators looking for an easy, affordable solution to increase the distance to the attached devices. The POR-1102 is the perfect solution for taking thernet to areas such as roof tops, factory floors, airports, and large warehouses. The POR-1102 is IP65-compliant meaning it is weatherproof from snow, rain, typhoons, desert heat, etc. This PoE Repeater is up to the challenge for deployment in any harsh weather condition! The POR-1102 can also work together with LevelOne’s high-power PoE njector, POI-4000. This can extend Ethernet connectivity to an additional 100 meters for high power PD devices, such as 18 W IP Cameras or other devices that require power greater than 15.4 W.
Additional Information
| Max. operating humidity (%) | 90 |
| Max. operating temperature (°C) | 50 |
| Min. operating humidity (%) | 5 |
| Indicators | Power, PoE In, PoE Out |
| Mount | Pole mount |
| Pin assignment and polarity | 1/2 (+), 3/6 (-) |
| Standards | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3af PoE |
| Features | Multiple PoE repeaters can be deployed by daisy chain to extend range Forwards Power over Ethernet (PoE) to remote device Forwards 802.3af/High-Power PoE to remote device Extends PoE connection for another 100 meters |
| Product weight (kg) | 1.08 |
| Product breadth (mm) | 270 |
| Product depth (mm) | 200 |
| Product height (mm) | 70 |
| Color | Silver |
| EAN | 4.01587E+12 |
| Model number | POR-1102 |
| Package contents | POR-1102 Mounting Kit Quick Installation Guide |
