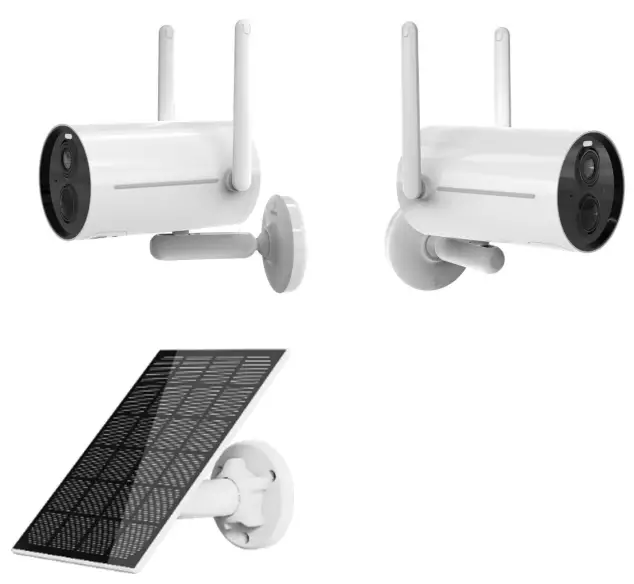

2Mp AI Waterproof WIFI smart battery camera with 3W Solar Panel, two-way speech intercom, VicoHome APP, Day night colorful, HD H.265, Waterproof IP65
Model: AI-SBVX81-F2C-T03
Product features：
White plastic hosing, 8pcs IR LEDS,1pc LED (Dual Light).
Easy to install and use, wireless.
Clear and smooth video browsing; intelligent transmission giving full play to capabilities of the network.
Online firmware upgrade, and synchronous updating of the functions and experience.
Support two ways talk and echo cancellation, noise suppression.
Remote real-time monitoring, Support Android and IOS smart device.
2-megapixel 1920×1080 resolution, clear picture quality.
Double light source for night vision (night vision distance of 7 meters), provide infrared light/white.
LED supplement light, to achieve night vision color image effect.
With built-in rechargeable battery, support long battery life, which normal working up to 6 months and standby for 15 months.
2.4G Wi-Fi supported (IEEE802.11b/g/n).
Cloud storage, Micro SD card (up to 128GB) and mobile phone video recording supported.
QR code intelligent connection and network allocation supported.
Support Human Detection 、Car recognition 、Intelligent fence 、Pet Recognition 、Package
Recognition and Intelligent Push.
IP65 Easy installation: support 1 / 4 universal screw bracket and magnetic suction bracket.
Colorful or Black/White night vision switchable, Night vision LED can be turned off manually.
Sleep Mode for privacy protection; Lifetime free cloud storage (up to 7-days-events or 1GB circulate package).
Minimum order quantity: 200pcs.
3W Ultra Slim Solar Panel: Micro-USB; Standard Working Voltage: 6V ±5%; Standard Working Current: 500mA ±5%; Cable Length: >2.9m; Material: PVC; Cable Diameter: (13/0.15BC) *2C
Product parameters：
| Specifications | ||
| Main Processor | SOC | ARM |
| Image Sensor | CMOS Sensor | 1/3″ Color CMOS Sensor |
| Lens | M12, f: 3.3mm, F2.0, 200w | |
| Visual angle | H(Horizontal)°; V(Vertical)55°; D(Diagonal)110° | |
| Minimum Illumination | 0.01Lux | |
| Audio | Input/Output | built-in Microphone and speaker |
| Audio Compressing | AAC | |
| Video | Video Compressing | H.264/H.265 |
| Lighting Frequency | 50Hz, 60Hz | |
| Frame Rate | 15fps | |
| Maximum Resolution | 1920*1080P | |
| Light Source for Night Vision | Double light source with medium power infrared LED (850nM wavelength) and white LED, irradiation distance :7 meters | |
| Network | Wireless Network | 2.4G Wi-Fi (IEEE802.1 1 b/g/n), with External antenna |
| Protocols Supported | TCP/IP, UDP/IP, DHCP, RTMP, MUTP | |
| IP Address Supported | Dynamic IP address supported | |
| Al | Intelligent Features | Support Human Detection , Car recognition , Intelligent fence , Pet Recognition , Package Recognition and Intelligent Push |
| Alarm | Alarm Notification | Alarm push by mobile APP, white LED flashing and alarm sound warning |
| NN’ake up | Wake up Method | PIR body induction wake-up, and remote wake-up |
| Recording | Recordings Method | Alarm triggered recording, and manual recording |
| Video Storage | Cloud storage, local Micro SD card, and mobile phone memory | |
| Indicator | LED Indicator | RGB tri-color lamp indicating the status of power/network signal/functionality |
| Battery | Capacity | 9000mAH |
| Removability | Unremovable | |
| Battery Life | 8 months (Record 20 lOS videos per day) |
| Standby | 15 months | |
| Charge Voltage | DV 5V+-5%/1.5A | |
| Charge time | 17hours | |
| Protect | 1P65; over-current/over-discharge/over- charge/short circuit/charging protection at high & low temperatures | |
| Power Consumption | Standby | 1.68mW(4V 0.42mA) |
| Day | 1W(3.8V 264mA) | |
| Night | 2.23W(3.8V 588mA) | |
| Interface | Power | Micro USB |
| SD Card | 1 Micro SD card (up to 128GB supported) | |
| Key | one reset key and one power key | |
| Installation | method | 1/4 universal screw holes |
| Environment | Du stproof and waterproof | 1P65 |
| Operating Environment | -10° — 45°C /10% — 80% (no condensation) | |
| Storage Environment | -20°C — 60° /0% — 90% (no condensation) | |
| Product dimension | Dimension (LxWxH) | 81.3*119.2*80.6(mm) |
| The bare weight | 500g |
| finished weight | 600g | |
| Material | ABS+PC | |
| Color | White |
Packing list:
- Camera*1
- Bracket*1
- Mounting kit*1
- USB charging cable *1
- Operation instruction*1
APP Download:
https://www.vicoo.tech/download
