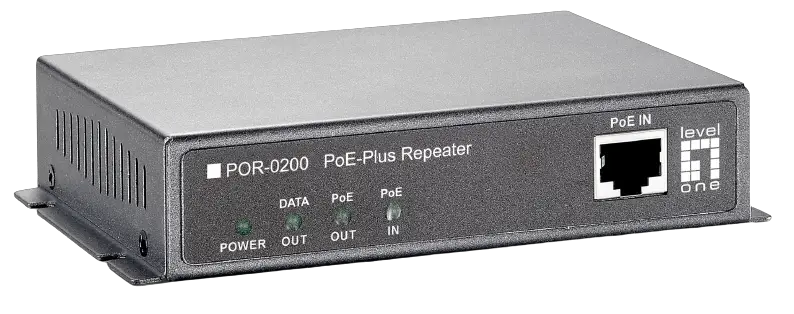

POR-0200 PoE-Plus Repeater,
Cascadable, LevelOne
Product Images
 | ||
 |  |  |
 | ||
Short Description
- High Power Midspan PoE compliant to simplify deployment and installation

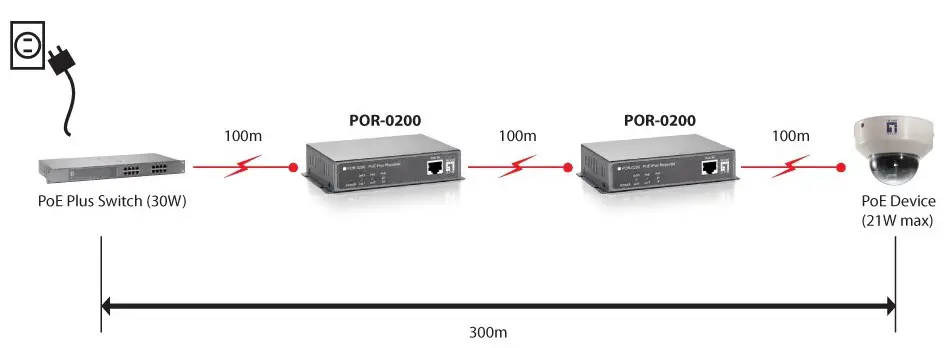

- Multiple PoE repeaters can be deployed by daisy chain to extend range
- Forwards 802.3af/802.3at/High-Power PoE to remote device
- Built-in 2 output ports for 1 PoE and 1 non-PoE devices
- Extends PoE connection for another 100 meters
- No additional power supply required
- Simple Plug and Play installation
Description

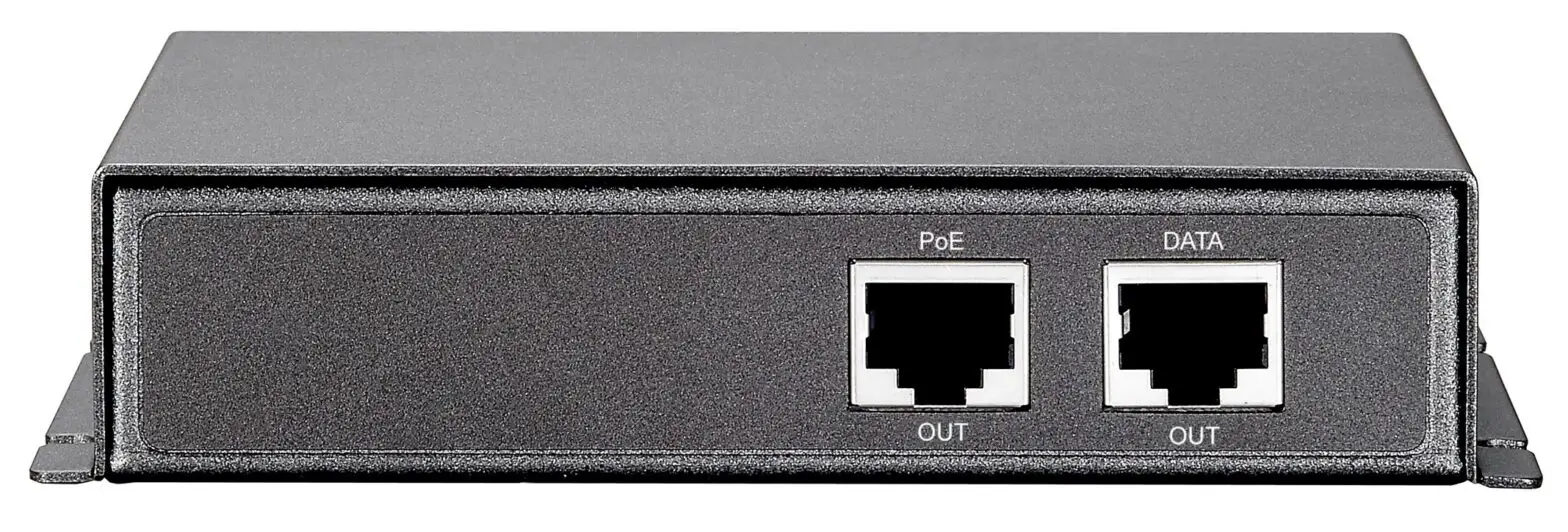

Extend the reach of your PoE-Plus devicesFor system integrators looking for a professional solution to help extend their PoE (802.3af/at) network, POR-0200 is the perfect accessory to increase your network performance. Normal cable runs only reach 100 meters, but with POR-0200 installers can extend the PoE network performance up to 200 meters. Furthermore, you can triple your range or even more by daisychaining* multiple PoE repeaters.* Maximum distance depends on the required Wattage of the PD.Simple yet durable, no software requiredAs a PoE-Plus Repeater, POR-0200 receives all power from the Power Sending Equipment (PSE), such as a PoE-Plus switch. This means that POR-0200 uses no external power supply, making it the most flexible option for system integrators looking for an easy, affordable solution to increase the distance to the attached devices on a network. POR-0200 has 3 RJ-45 ports for easy deployment, 1 “IN” port that accepts the power and data for the first 100 meters, and 2 “OUT” ports for 1 PoE (power + data) and 1 non-PoE (data only) installation, that boosts and extends the device an additional 100 meters. With a durable metal housing, POR-0200 fits into any tight deployments.ApplicationsPOR-0020 is a long-ranged solution for deploying PoE IP Camera and any Fast Ethernet PoE PD powered by 802.3at PSE.
Additional Information
| Max. operating humidity (%) | 95 |
| Max. operating temperature (°C) | 50 |
| Min. operating humidity (%) | 5 |

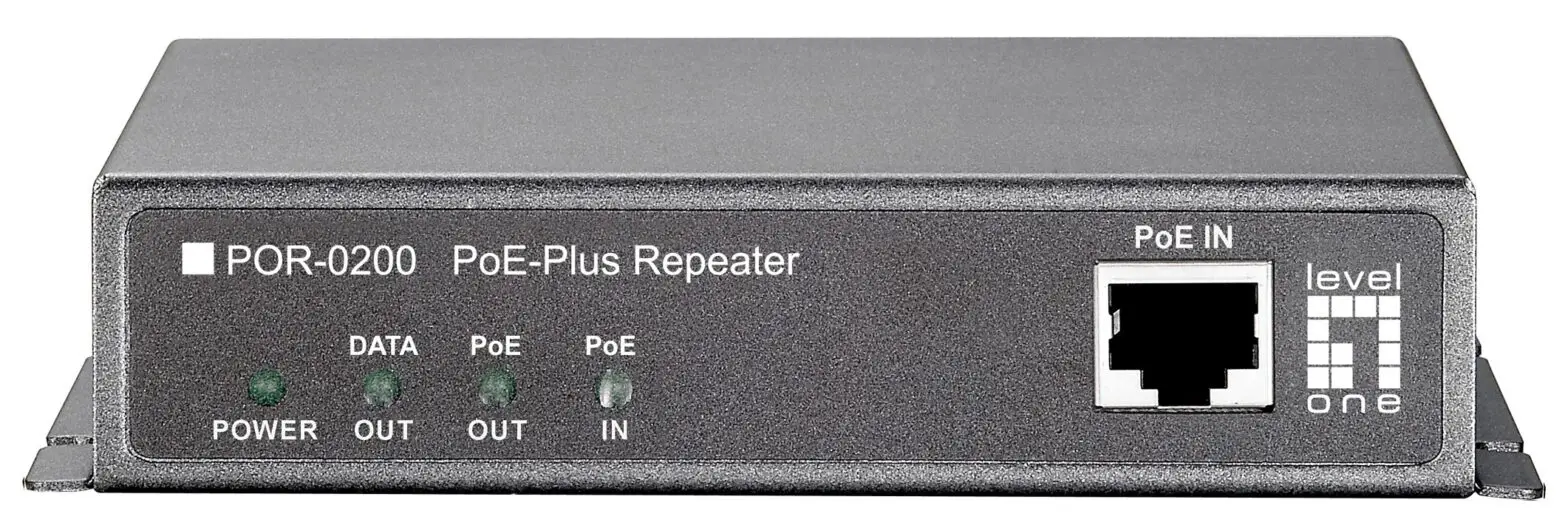

| Indicators | Power, PoE In, PoE Out |
| Mount | Wall mount |
| Standards | IEEE 802.3 10Base-T, Ethernet IEEE 802.3u 100Base-TX, Fast Ethernet IEEE 802.3x Ethernet Flow ControlIEEE 802.3 10Base-T, Ethernet IEEE 802.3u 100Base-TX, Fast Ethernet IEEE 802.3x Ethernet Flow Control |
| Product weight (kg) | 0,4 |
| Product breadth (mm) | 130 |
| Product depth (mm) | 90 |
| Product height (mm) | 28 |
| Color | Grey |
| EAN | 4.01587E+12 |
| Model number | POR-0200 |
| Package contents | POR-0200 Quick Installation Guide |
| 802.3af PoE | 1 |
