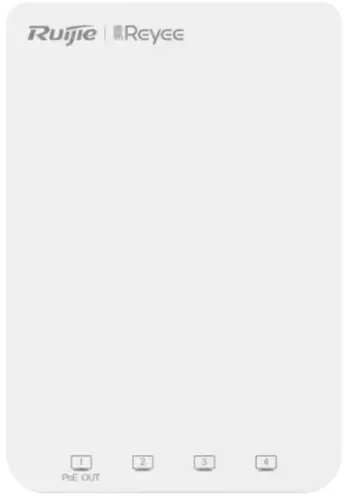

Ruijie Reyee Wi-Fi 5 Wall Mounted Access Point Installation Guide
Packing List
Item | Name | Quantity | Unit |
| 1 | RG-RAP1200(P)Host | 1 | Set |
| 2 | This Quick Installation Guide | 1 | Copy |
| 3 | Warranty card | 1 | Copy |
| 4 | Mounting Screw
| 2 | Piece |
Appearance and Interface

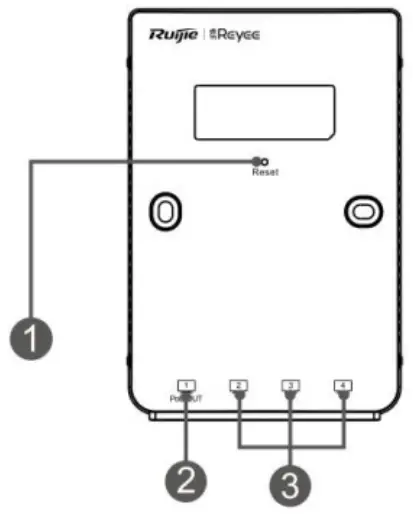

Top view
Note: 1 Reset button
2 LAN/PoE-Out Port

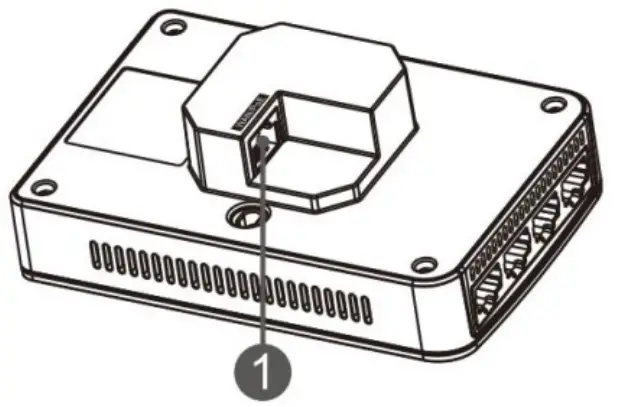

Rear View
Note: WAN/PoE Port
Note:
- When powering the AP through PoE, connect one end of the Ethernet cable to the WAN/PoE port and the other end to a PoE-capable device.
- With IEEE 802.3at PoE+ input, the PoE-OUT port supports up to 15.4W output power to the external terminals complying with IEEE 802.3af.
| LED Indicator and Button | Frequency | Description |
| LED Indicator | Solid green | Normal operation |
| Off | Normal operation, but the AP is not connected to Ruijie Cloud. | |
| Blinking(0.5Hz) | Possible cases:
| |
| Press for less than 2 seconds | Restart the device. | |
| Reset Button | Press for more than 5 seconds | Restore the factory settings. |
Product Installation
- Loosen screws on the 86-type faceplate that is mounted on the wall.
- Connect the Ethernet cable to the WAN/PoE port.

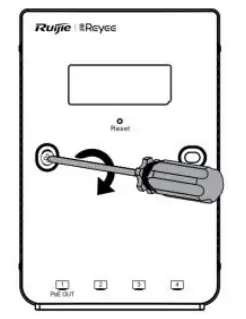

- Align screw holes on both sides of the device over those on the faceplate. And then tighten screws with a screwdriver.
- Install the plate cover in the way as shown in the figure.
Note:
You need to buy the mounting bracket, if you mount the AP on a single-gang wall junction box compliant with US standards.
Network Configuration
Method 1 (Recommended)
Scan the QR-code on the manual or device to download Ruijie Cloud App. Follow the guide on App to set up and configure the network.
Method 2
Connect to the device SSID (@Ruijie-mxxxx when there are multiple devices and @Ruijie-sxxxx default when there is only one device), or connect the cable with LAN port and visit http://10.44.77.253 (default password:admin). It is recommend to configure the IP address of PC as 10.44.77.250.
Note:
This equipment is restricted to indoor operation in 5.15-5.25GHz for Hong Kong.
