Packing List

ItemNameQuantityUnit
1RG-RAP2200(F)Host1Set
2Mounting Bracket1Piece
3Phillips Pan Head Screw2Piece
4Expansion Anchor2Piece
5This Quick Installation Guide1Copy
6Warranty Card1Copy

Appearance and Interface

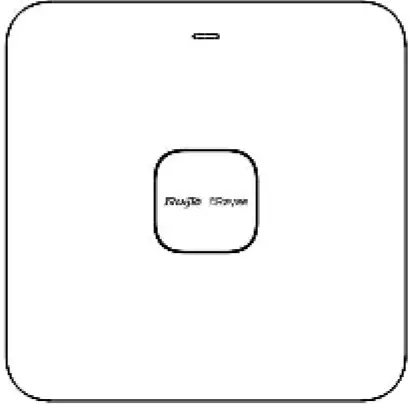

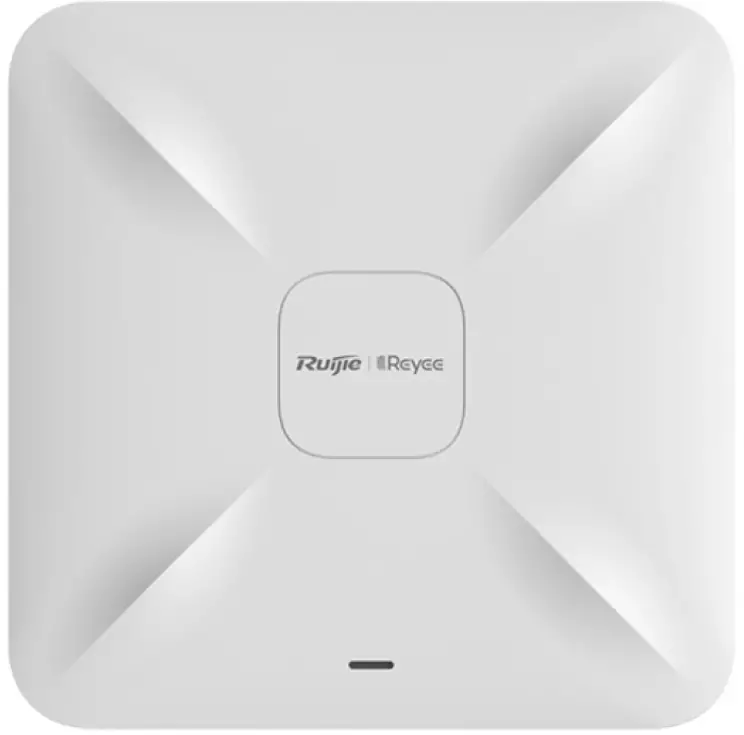

Top View

REYEE RG-RAP2200 Wi-Fi 5 1267Mbps Ceiling Access Point 01

Bottom View

REYEE RG-RAP2200 Wi-Fi 5 1267Mbps Ceiling Access Point 02Note:

  1.  Reset button
  2. LAN2 port
  3.  LAN 1 /PoE port
  4.  DC-12V power port



  1. When powering the AP through PoE, connect one end of the Ethernet cable to LAN 1 /PoE port and the other end to a PoE-capable device.
  2. When powering the AP via local power supply, connect the DC- 12V/1.5A power adapter to the power port.

LED Indicator and Button

LED Indicator and ButtonFrequencyDescription
LED IndicatorSolid greenNormal operation
OffThe AP not receiving power.
Blinking(0.5Hz)Normal operation, but the AP is not connected to Ruijie Cloud.
Fast blinking(10Hz)Possible cases:
  1.  Restoring the factory default settings
  2.  Upgrading the firmware
  3. Restoring the image file
  4.  Initializing the device
Reset ButtonPress for less than 2 secondsRestart the device
Press for more than 5 secondsRestore the factory default settings

Product Installation

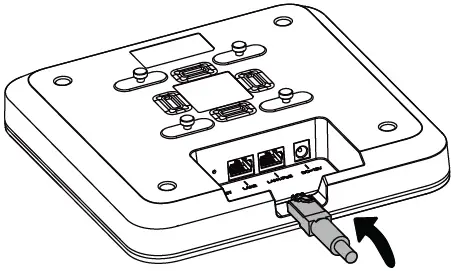

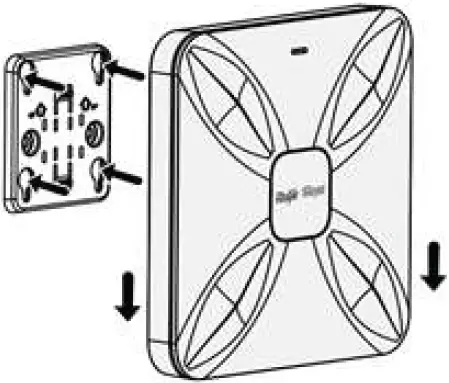

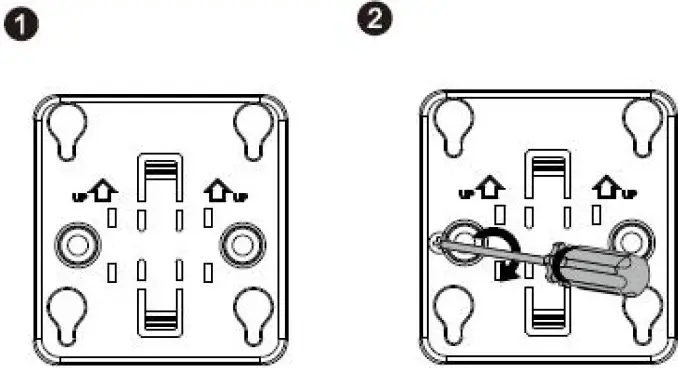

REYEE RG-RAP2200 Wi-Fi 5 1267Mbps Ceiling Access Point 03Attach the mounting bracket on the ceiling. REYEE RG-RAP2200 Wi-Fi 5 1267Mbps Ceiling Access Point 04Connect the Ethernet cable to the LAN port. REYEE RG-RAP2200 Wi-Fi 5 1267Mbps Ceiling Access Point 05Align the square feet on the rear of the AP over the mounting holes on the bracket. Slide the AP into the holes until it clicks into place.

Network Configuration
  1.  (Recommended)
    Scan the QR-code on the manual or device to download the Ruijie Cloud App, and configure the network according to guide on App. REYEE RG-RAP2200 Wi-Fi 5 1267Mbps Ceiling Access Point 06
  2. Connect to the SSID (@Ruijie-mxxxx when there are multiple devices and @Ruijie-sxxxx when there is only one device), or connect the cable with LAN port, and visit http://110.44.77.253 (default password: admin). It is recommended to configure the IP address as 10.44.77.250.

Note:
This equipment is restricted to indoor operation in 5.15-5.25GHz for Hong Kong.
