Product Overview

This series of thermostats have Floor Heating, Fan Coil, and Integrated version, meeting the requirements under different scenarios.

VersionSystem modeModelApplication


Floor heating



Heating

EPBuilt-in & floor sensor, floor limit sensor + Weekly programming
WPA NC/NO dual-output + Weekly programming
WPBA NC/NO dual-output + Weekly programming+ Potential-free output


Fan Coil

Heating /Cooling / VentilationAc2Timer task + 2-pipe system
Ac2-

485

Timer task + 2-pipe system + 485Modbus (optional)
Ac4Timer task + 4-pipe system + 485Modbus (optional)


Integrated

Heating / Cooling / Ventilation/Floor heating / Floor heating + Heating

AWY

Floor heating & fan coil, weekly programming + Potential-free output + Timer task + 485Modbus (optional) + Door card (optional)

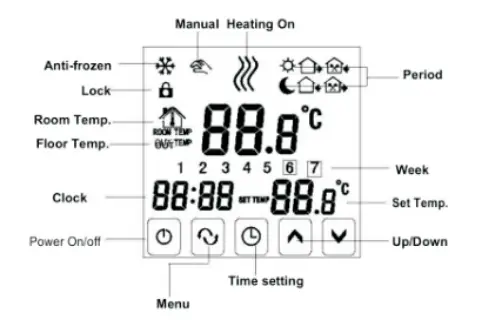

Display SymbolsBEOK TDS23 WiFi Heating Thermostat FIG 1

Temperature Control Mode(Floor Heating/Integrated)

  • Auto Mode
    In the weekly-circled program, up to 6 heating events can be set per day. Heating events, workdays, and temperature can be separately customized based on personal routines.
  • Manual Mode
    The thermostat works based on manually-set temperature, disconnecting from auto mode.
  • Temporary Mode
    The thermostat works based on manually-set temperature temporarily and then shifts back to auto mode till the next event.

User Operation

  • Power on/off :
  • Temp setting:
  • System mode:
  • Press “ ” shortly to switch manual/auto mode. (Floor heating)
  • Press “ ” shortly to switch manual/auto mode. (Integrated, floor heating)
  • Temp control mode:
  • Child-lock:
  • Long press “ ” to turn on/off the thermostat.
  • Rotate handwheel“ ”to change the setting temperature by 0.5°C.
  • Press “ ” shortly to switch cooling/heating/ventilation. (Fan Coil)
  • Press “ ” shortly to switch cooling/heating/ventilation/floor heating/floor
  • heating + heating. (Integrated)
  • Enter menu: Press “ ” enter the menu interface.
  • Press “ ” + “ ” for 3 seconds to activate child-lock.

Auto-mode Setting

When the device is off, press “ ” to enter the menu page, choose “period setting” to set parameters, then press “ ” to save and exit.



Events

TimeTemperature
Default valueModifyDefault valueModify






Workdays

Sunrise06: 00

Rotate handwheel

20℃Rotate handwheel
Morning08: 0015 ℃
Nooning11: 3015 ℃
Afternoon12: 3015 ℃
Evening17: 0022 ℃
Night22: 0015 ℃
WeekendsSunrise06: 0020℃
Night22: 0015 ℃

Advanced Setting

Choose “advanced setting” on the menu page and put in password 123456 to enter the advanced setting page, set parameters then press “ ” to save and exit.

MeaningRotate handwheelDefault value


Sensor Mode

Built-in Sensor Floor Sensor

Built-in Control&Floor Limitation



IN

Buit-in Sensor Calibration-5~5℃-3℃
Buit-in Max Setting Value5~95℃50℃
Floor Max Setting Value10~95℃50℃
Limitation Value20~95℃35℃
Output Jitter Control0~5℃1℃
Anti-Freeze ProtectionON/OFFOFF


Linkage Mode

Noninverting Inverting Inverting

Inverting and Anti-Freeze closed



Noninverting

Linkage Time Delay0~5Min0Min


Weekday Mode

Monday to Friday/Monday to Saturday

/Monday to Sunday/



2-day

Boot TypeFunction Off/Function On/Function SavedO F F
Temperature Unit℉/℃


Child Lock Type

None Lock All

All but power



None

Control ModeAll/Air/FloorFloor
Cloud RegionCN/US/EUCN
Reset All Settings//

Sensor failure

Please select the work mode of sensors correctly. When it shows E0/E1 error, the thermostat will stay power-off till the error is eliminated.E0: the built-in sensor is short-circuited or disconnected. E1: floor sensor is short-circuited or disconnected.

Timer Task Setting (Fan Coil/Integrated)

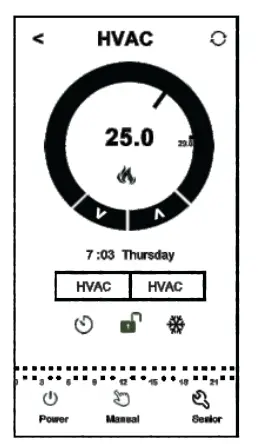

Press“ ”to enter the menu page. Turn theknob“ ”, choose “Auto Mode”, and then choose “Schedule”. Set the parameters by turning the knob, then press “Home” to save and exit to home page.BEOK TDS23 WiFi Heating Thermostat FIG 2

Dimensions (Unit: mm)BEOK TDS23 WiFi Heating Thermostat FIG 3

Mounting Steps

  1. The thermostat adopts the pre-guide and limited snap-fit design. It is easy to mount. 1)Release the front cover by inserting a head screw-driver into the bottom crack.
  2.  Insert the wires and then fix these wires with screws. The suggested wire-stripping length is 7-9mm.
  3.  Mount backing plate into wall-cassette, put screws, and then fix thermostat. Make sure that the thermostat is fixed without deformation. Suggested torque is 0.2~0.4N.m (2.0~4. 1kgf.cm).

Connecting Diagram

The thermostat operates at full capacity in areas with an altitude of less than 2500 above sea level. The power rating of external load should be less than or equal to 80%rated power of the thermostat in areas with an altitude of 2500m to 4200m.

Floor HeatingBEOK TDS23 WiFi Heating Thermostat FIG
