BEOK ‎JMY-R8C-703 RGB Colorful LCD Screen Smart Thermostat

Scan QR code to finish network configuration swiftly, easy and convenient.
Programmable device, multiple periods allowed to set per day.

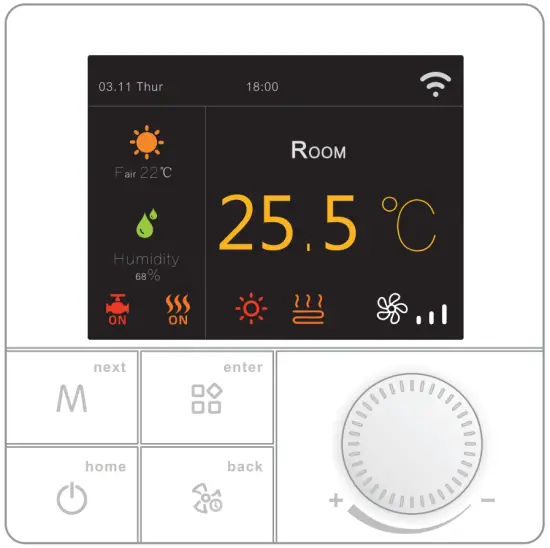

2.8 inches ultra-large colorful LCD screen, delicate visual effect.
The device can be controlled by voice through Amazon Alexa and Google Assistant

Parameter

Supply voltageAC100~240V;50~60Hz
Power consumption1W Max (Wi-Fi 3W Max)
Temp. setting range5~95℃
Floor limited range20~90℃
On/off deviation0.5~10℃, Factory setting ±1℃
Ambient temperature-5~50℃
Protection levelIP20
Shell materiaAnti-Flammable PC

Product Overview

This series of thermostat has Floor Heating, Fan Coil, and Integrated version, meeting the requirements under different scenarios.

VersionSystem modeModelApplication
Floor heatingHeatingEPBuilt-in & floor sensor, floor limit sensor + Weekly programming
WPA NC/NO dual-output + Weekly programming
WPBA NC/NO dual-output + Weekly programming+ Potential-free output
Fan CoilHeating /Cooling / VentilationAc2Timer task + 2-pipe system
Ac2- 485Timer task + 2-pipe system + 485Modbus (optional)
Ac4Timer task + 4-pipe system + 485Modbus (optional)
IntegratedHeating / Cooling / Ventilation/Floor heating / Floor heating + HeatingAWYFloor heating & fan coil, weekly programming + Potential-free output + Timer task + 485Modbus (optional) + Door card (optional)

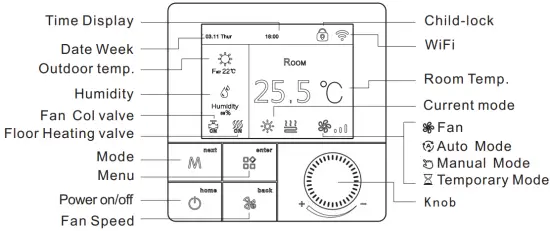

Display Symbols

Temperature Control Mode (Floor Heating/Integrated)

Auto Mode
Weekly-circled programme, up to 6 heating events can be set per day.
Heating events, workdays and temperature can be separately customized based on personal routines.

Manual Mode
Thermostat works based on manually-set temperature, disconnecting from auto mode.

Temporary Mode
Thermostat works based on manually-set temperature temporarily and then shifts back to auto mode till next event.

User Operation

Power on/off :Long press “ ” to turn on/off the thermostat
Temp setting:Rotate handwheel “ ”to change setting temperature by 0.5°C.
System mode:Press “ M ” shortly to switch cooling/heating/ventilation. (Fan Coil)
Press “ M ” shortly to switch cooling/heating/ventilation/floor heating/floor heating + heating. (Integrated)
Temp control mode:Press “ M  ” shortly to switch manual/auto mode. (Floor heating)
Press “ ” shortly to switch manual/auto mode. (Integrated, floor heating)
Enter menu:Press “ ” enter the menu interface
Child-lock:Press “ M ” + “ ” for 3 seconds to activate child-lock.

Auto-mode Setting

When device is off, press “ ” to enter menu page, choose “period setting” to set parameters, then press “ ” to save and exit.

Events

Time

Temperature
Default valueModifyDefault value

Modify

WorkdaysSunrise06 : 00 Rotate handwheel20℃ Rotate handwheel
Morning08 : 0015 ℃
Nooning11 : 3015 ℃
Afternoon12 : 3015 ℃
Evening17 : 0022 ℃
Night22 : 0015 ℃
WeekendsSunrise06 : 0020℃
Night22 : 0015 ℃

Advanced Setting (Usually for Professional Technicians)

Choose “advanced setting” on menu page and put in password 123456 to enter advanced setting page, set parameters then press “ ” to save and exit.

MeaningRotate handwheelDefault value
Sensor ModeBuilt-in Sensor
Floor Sensor
Built-in Control & Floor Limitation
IN
Buit-in Sensor Calibration-5~5℃-3℃
Buit-in Max Setting Value5~95℃50℃
Floor Max Setting Value10~95℃50℃
Limitation Value20~95℃35℃
Output Jitter Control0~5℃1℃
Anti-Freeze ProtectionON/OFFOFF
Linkage ModeNon-inverting
Inverting Inverting
Inverting and Anti-Freeze closed
Non-inverting
Linkage Time Delay0~5 Min0 Min
Weekday ModeMonday to Friday/Monday to Saturday /Monday to Sunday/2-day
Boot TypeFunction Off/Function On/Function SavedO F F
Temperature Unit℉/℃
Child Lock TypeNone
Lock All
All but power
None
Control ModeAll/Air/FloorFloor
Cloud RegionCN/US/EUCN
Reset All Settings//

Sensor failure

Please select work mode of sensors correctly. When it shows E0/E1 error, thermostat will stay power-off till the error is eliminated.E0: built-in sensor is short-circuited or disconnected.
E1: floor sensor is short-circuited or disconnected.

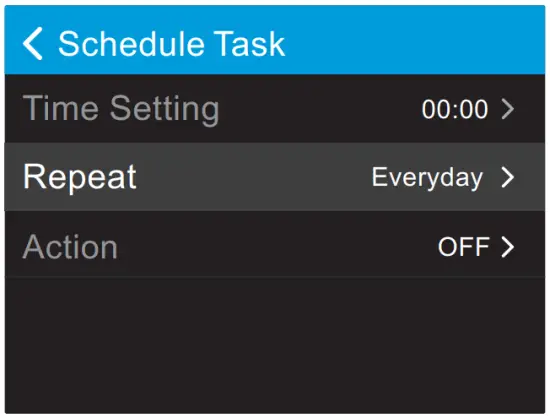

Timer Task Setting (Fan Coil/Integrated)

Press“ ”to enter the menu page. Turn the knob“ ”, choose “Auto Mode”, and then choose “Schedule”. Set the parameters by turning the knob, then press “Home” to save and exit to home page.

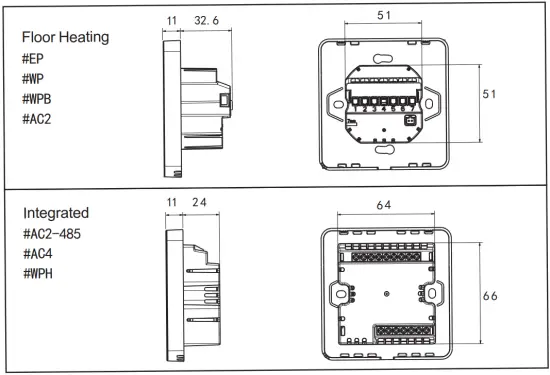

Dimensions (Unit: mm)

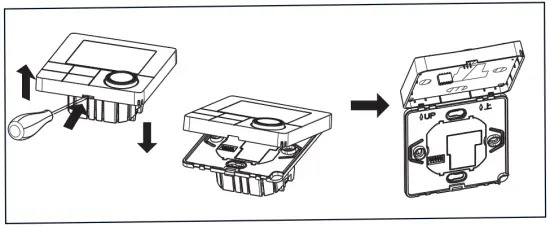

Mounting Steps

The thermostat adopt pre-guide and limited snap-fit design. It is easy to mount.
1)Release front cover by inserting a head screw-driver into bottom crack.

2)Insert the wires and then fix these wires with screws. Suggested
wire-stripping length is 7-9mm.

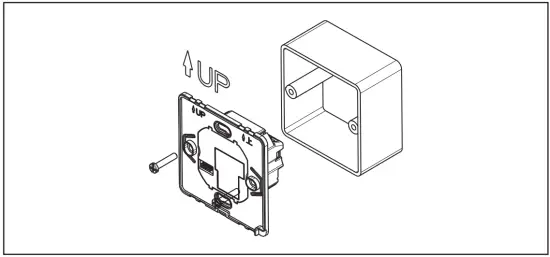

3)Mount backing plate into wall-cassette, put screws and then fix thermostat.
Make sure that the thermostat is fixed without deformation. Suggested torque is 0.2~0.4N.m (2.0~4. 1kgf.cm).

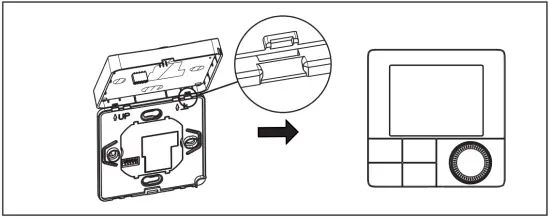

4)Re-mount the front cover via snap-fit connection.

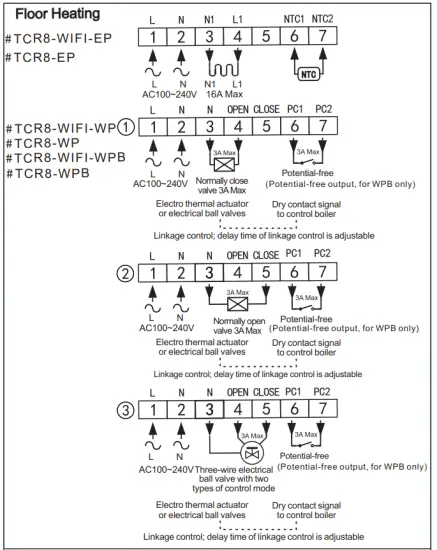

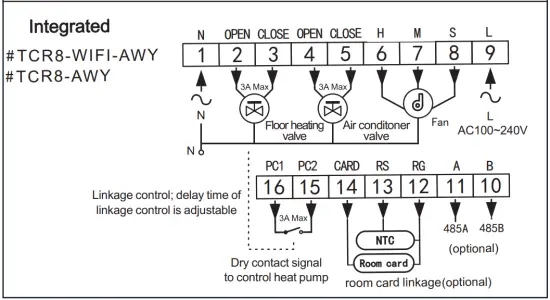

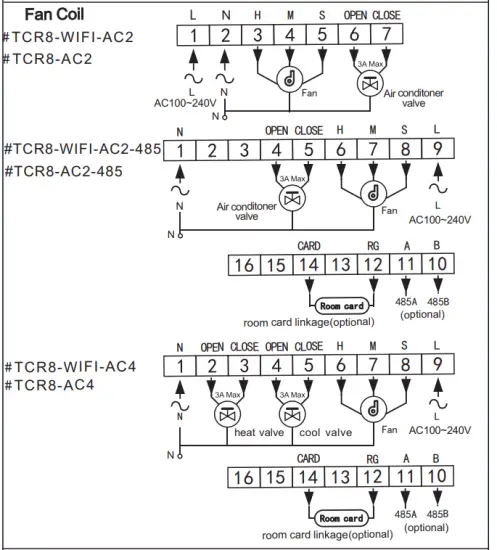

Connecting Diagram

The thermostat operates in full capacity in areas with the altitude of less than 2500 above sea level. Power rating of external load should be less than or equal to 80% rated power of the thermostat in areas with altitude of 2500m to 4200m.
