BEOK TR9B-WiFi LCD Smart Thermostat

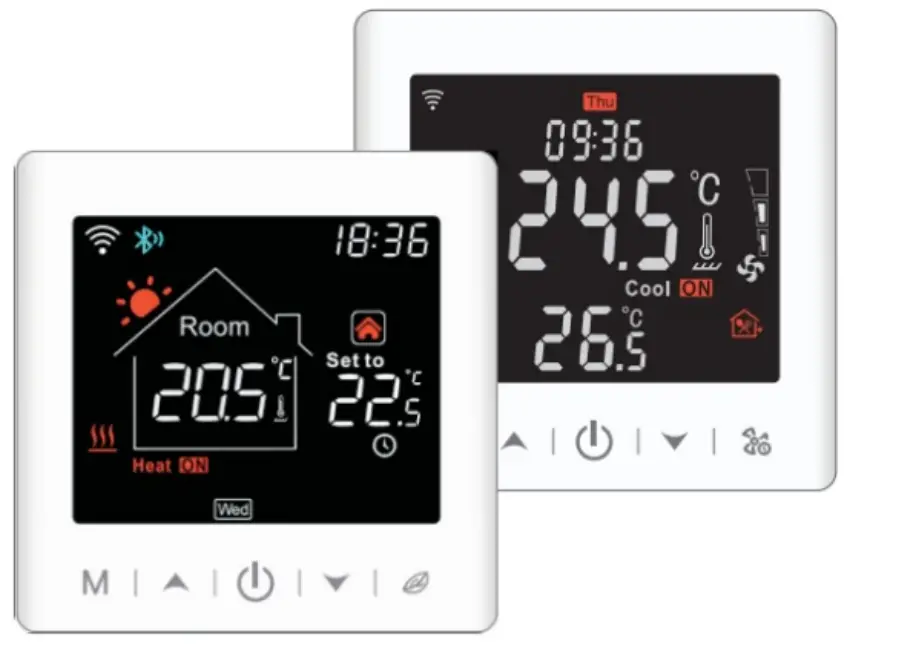

Product Overview

This series of thermostat has Floor Heating, Fan Coil, and Integrated version, meeting the requirements under different scenarios.

Version	System mode	Model	Application
Floor heat ing	Heating	EP	Built-in & ﬂoor sensor, ﬂoor limit sensor + Weekly progra mming
		WP	A NC/NO dual-output + Weekly programming
		WPB	A NC/NO dual-output + Weekly programming+ Potential-free output
Fan Coil	Heating /Cooling / Ventilation	AC2	Timer task + 2-pipe system
		AC2-485	Timer task + 2-pipe system + 485Modbus (optional)
		AC4	Timer task + 4-pipe system + 485Modbus (optional)
Integrated	Heating / Cooling / Ventilatio n/Floor heating / Floor heati ng + Heating	AWY	Floor heating & fan coil, weekly programming + Potential-free output + Timer task + 485Modbus (option al) + Door card (optional)

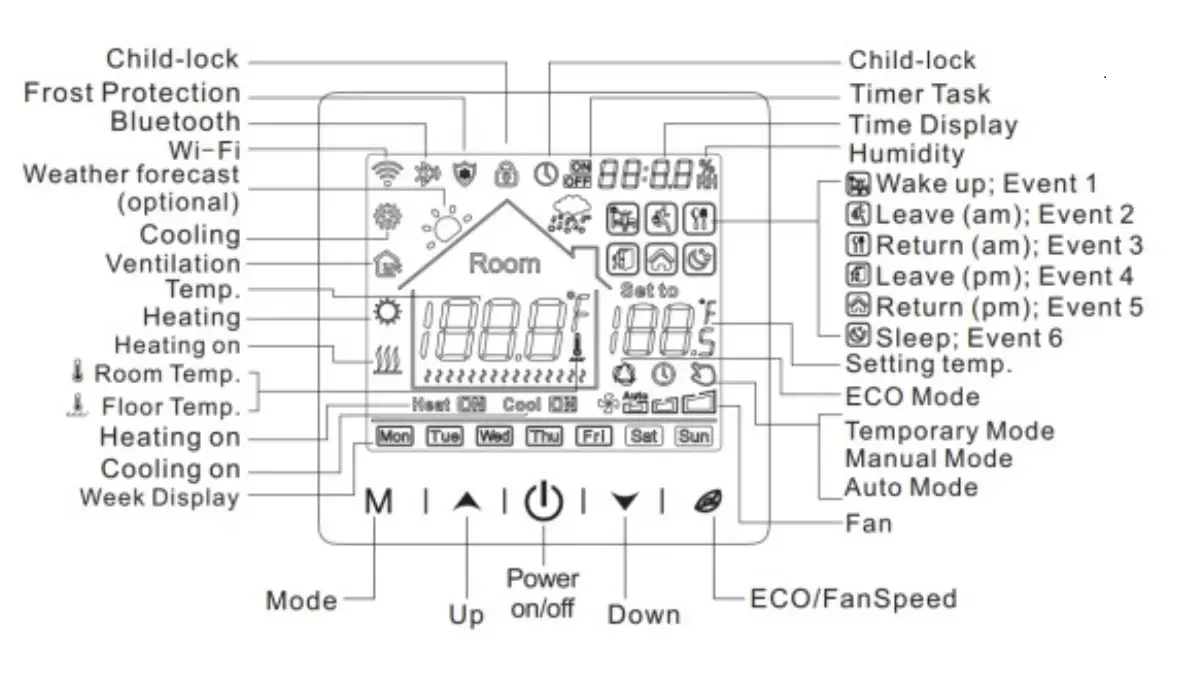

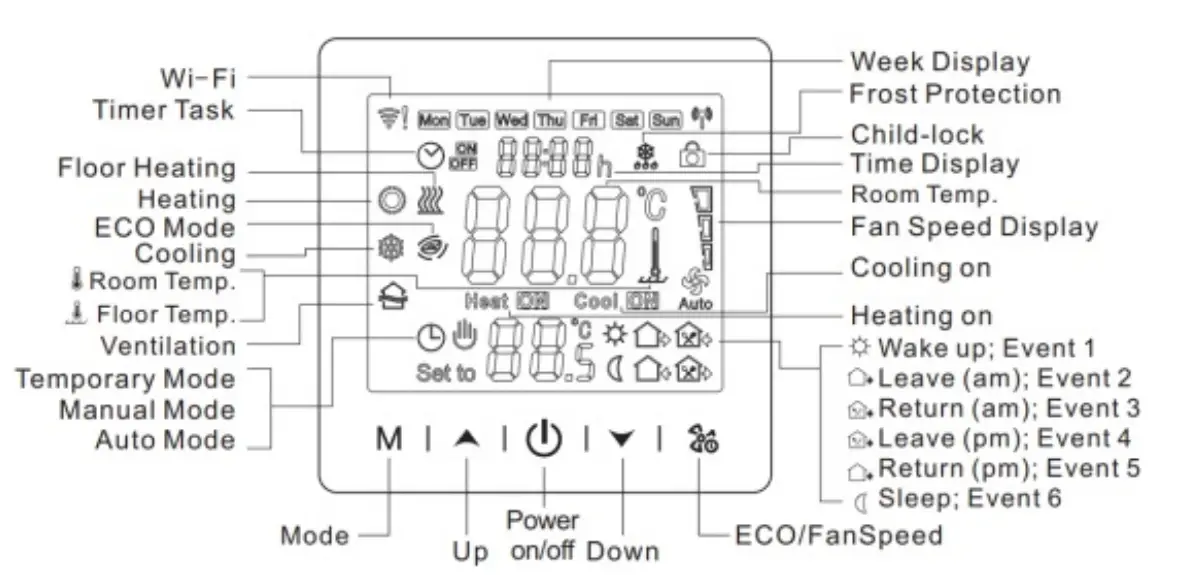

Display Symbols

Temperature Control Mode(Floor Heating/Integrated)

Auto Mode
In the weekly-circled program, up to 6 heating events can be set per day. Heating events, workdays and temperature can be separately customized based on personal routines.
Manual Mode
The thermostat works based on manually-set temperature, disconnecting from auto mode.
Temporary Mode
The thermostat works based on manually-set temperature temporarily and then shifts back to auto mode till next event.
- Customized exclusive temperature plan – up to 6 events allowed to set per day
- Sail-shape curved design – fashion, elegant and enduring
- UItra-large screen -better user interaction experience
- 485 Modbus and room card linkage – customized equipment (optional)

Parameter

Supply voltage: AC100-240V;50-60Hz
Power consumption: 1W Max (Wi-Fi 3W Max)
Temp. setting range: 5-95°C (41-99°F)
Floor limited range: 20-90°C (68-99°F)
Temp. Dif.: 0.5-10°C (1-10°F) Factory setting ±1°C
Ambient temperature: -5-50°C (23-122’F)
Protection level: I P20
Shell material: Anti-Flammable PC

User Operation

Power on/off: Press “ ” shortly to turn on/off the thermostat.
Auto-mode: Press “ M ” for 3 seconds to edit auto-mode settings. (Floor Heating/Integrated)
Timer task: Press “ ” for 3 seconds to edit timer task. (Fan Coil/Integrated)
Time setting: Press “ ” for 3 seconds to set time. (Floor Heating)
Press “ ” twice for 3 seconds to set time. (Automatic time synch for Wi-Fi version)
Temp setting: Press shortly to change setting temperature by 0.5°C.
Child-lock: Press for 3 seconds to activate child-lock.
System mode: Press “ M ” shortly to switch cooling/heating/ventilation. (Fan Coil)
Press “ M ” shortly to switch cooling/heating/ventilation/floor heating/floor heating + heating. (Integrated)
Temp control mode: Press “ ” shortly to switch manual/auto mode. (Floor heating)
Press “ ” shortly to switch manual/auto mode. (Integrated, floor heating)
Fan speed setting: Press “ ” shortly to adjust fan speed.(Fan Cail/Integrated)
ECO mode: Press“ ”shortly to set to ECO mode 18°C(64°F). (Floor heating)

Advanced Setting (Usually for Professional Technicians)

Under power-off, press “ M ” for 3 seconds to enter advanced setting mode, then re-press “ M ” to switch to next mode. Press “ ” to save and exit advanced setting mode.

Code	Meaning		Default Value	Integra ted	Fan Coil		Floor Heating
Code	Meaning		Default Value		AC2- 485 AC4	AC2
00	Postal address	Adjustment range 0x00~0xFA	00	√	√	×	√
01	Temp.calibration	-9.9~9.9℃(-9~9℉)	-3℃	√	√	√	√

02	Dead zone	0.5~10℃(1~10℉)	±1℃	√	√	√	√
03	Temp. upper limit	5~95℃(41~99℉)	50℃	√	√	√	√
04	Temp. lower limit	5~47℃(41~99℉)	5℃	√	√	√	√
05	Frost protection	ON: frost protection on OFF: frost protection oﬀ	OFF	√	√	√	√
06	Temperature unit	℃/℉	℃	√	√	√	√
07	Sensor selection	IN: Controlled by built-in sensor OUT: Limited by ﬂoor sensorALL: Controlled by built-in sensor an d limited by ﬂoor sensor	IN	√	×	×	√
8	Floor limited temp.	20~90℃(68~99℉)	35℃	√	×	×	√

09	Weekly program ming setting	12345: 5/2 week mode 123456: 6/1 week mode 1234567: 7/0 week mode	12345	√	×	×	√
10	Status of potential-free and main power outputs	00: both outputs are normally open 0 1: main power output is normally closed; potential-free output is norma lly open 02: both outputs are normally closed 03: both outputs are normally closed; under power-oﬀ, frost protection is oﬀ either	00	√	×	×	√
11	Delay time of out puts	0~5min	0	√	×	×	√
12	Child-lock	00: Child-lock inactivate when screen oﬀ; lock all when child-lock activate 01: Child-lock activate when screen o ﬀ; lock all when child-lock activate 02: Child-lock activate when screen o ﬀ; lock all except Fan Speed, Up and Down when child-lock activate03: Child-lock activate when screen o ﬀ; lock all except Power on/oﬀ when child-lock activate	00	√	√	√	√
13	Power-on-reset	00: stay power-oﬀ after Power-on-res et 01: stay power-on after Power-on- reset02: recovery after Power-on-reset	02	√	√	√	√

14	door card status	00: turn oﬀ door card function 01: set to ECO temp. after pulling door card out02: stay power-oﬀ after pulling door c ard out	00	√	√	×	×
15	Door card heating ECO temp.	10~21℃(50-69℉)	18℃	√	√	×	×
16	Door card cooling ECO temp.	22~32℃(72-89℉)	26℃	√	√	×	×
17	Fan coil mode setting	00: Cooling and heating 01: Cooling only	00	√	√	√	×
18	weekly programming for Integrated	00: turn on01: turn oﬀ	01	√	×	×	×
19	Reset	Press for 3 seconds to reset	/	√	√	√	√

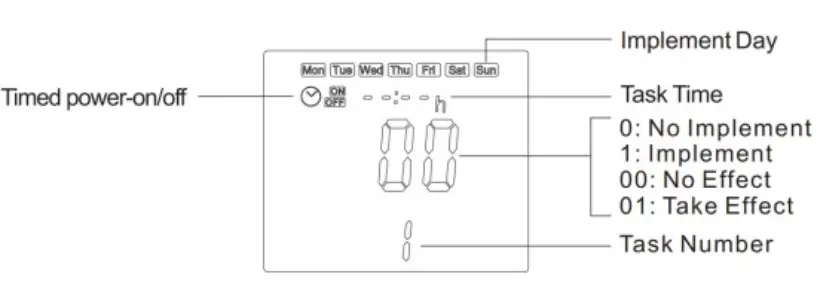

Timer Task Setting (Fan Coil / Integrated )
Press “ ” for 3 seconds to enter timer task setting; press “ M ” to change settings;
press “ ” to adjust parameters; press “ ” to save and exit.

Dimensions

(Unit: mm)

Floor Heating / Fan Coil
#EP
#WP

Mounting Steps

The thermostat adopt pre-guide and limited snap-fit design. It is easy to mount.

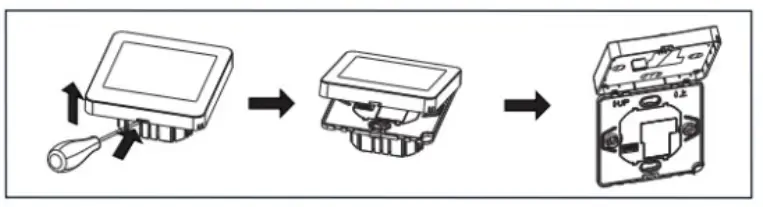

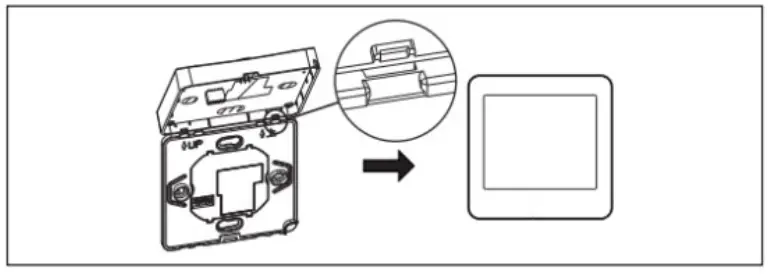

Release front cover by inserting a head screw-driver into bottom crack.
Insert the wires and then fix these wires with screws. Suggested wire-stripping length is 7-9mm.

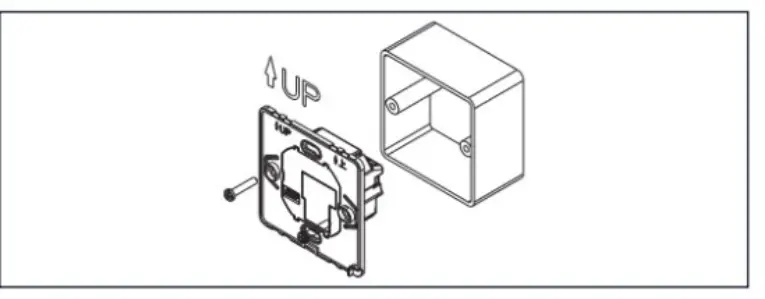

Mount backing plate into wall-cassette, put screws and then fix thermostat. Make sure that the thermostat is fixed without deformation. Suggested torque is 0.2~0.4N.m (2.0~4. 1kgf.cm).
Re-mount the front cover via snap-fit connection.

Sensor failure
Please select work mode of sensors correctly. When it shows EO/E1 error, thermostat will stay power-off till the error is eliminated. EO: built-in sensor is short-circuited or disconnected.
E1: floor sensor is short-circuited or disconnected.

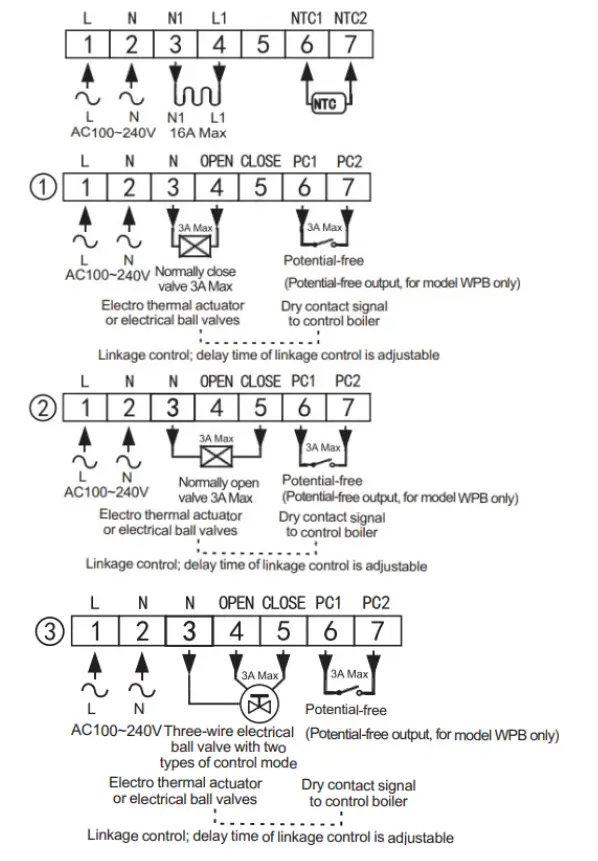

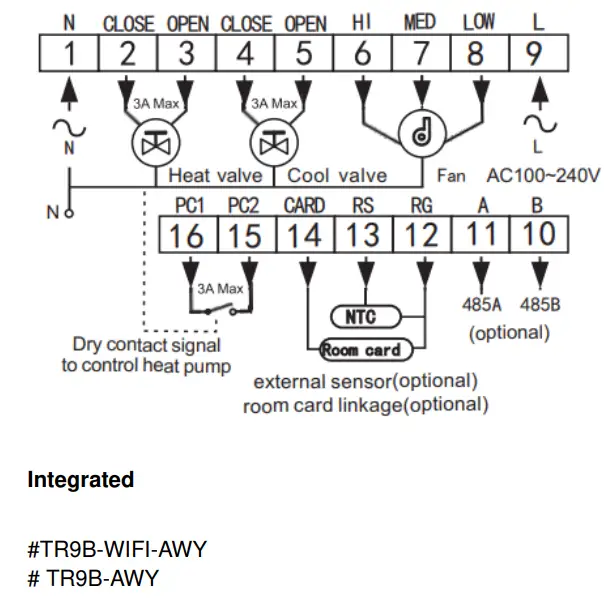

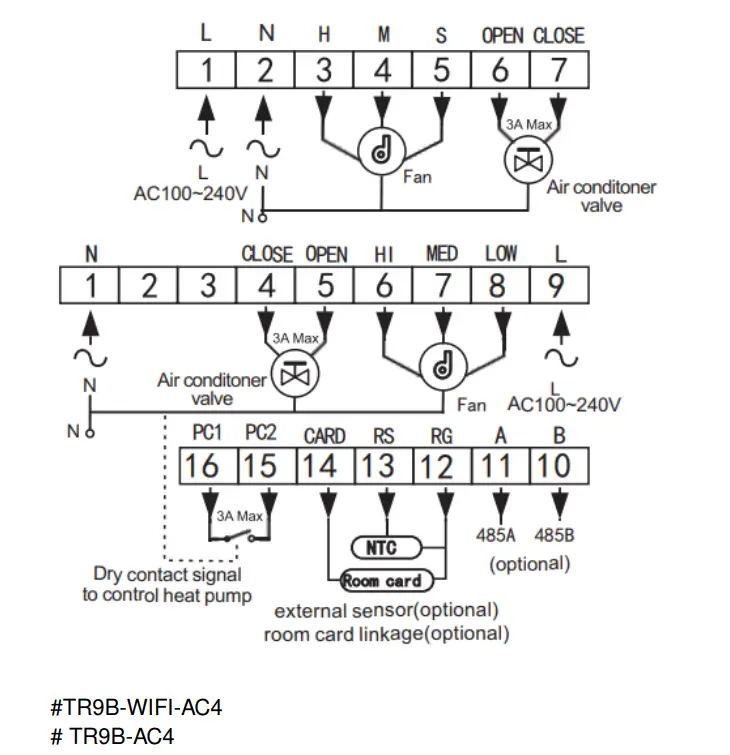

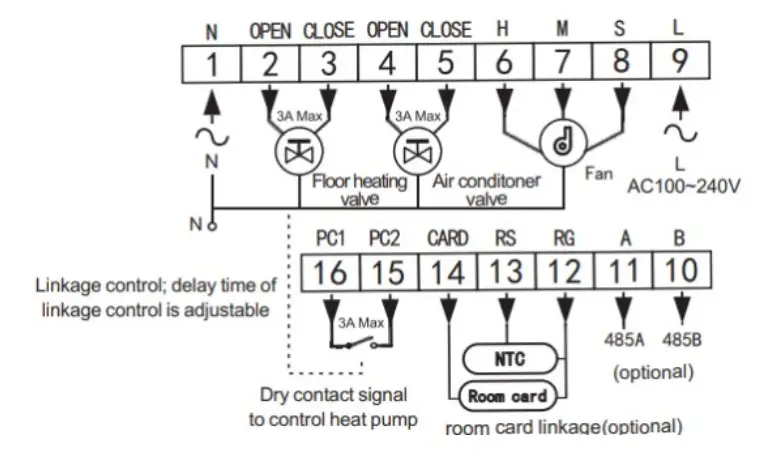

Connecting Diagram

The thermostat operates in full capacity in areas with the altitude of less than 2500 above sea level. Power rating of external load should be less than or equal to 80% rated power of the thermostat in areas with altitude of 2500m to 4200m.
Floor Heating
