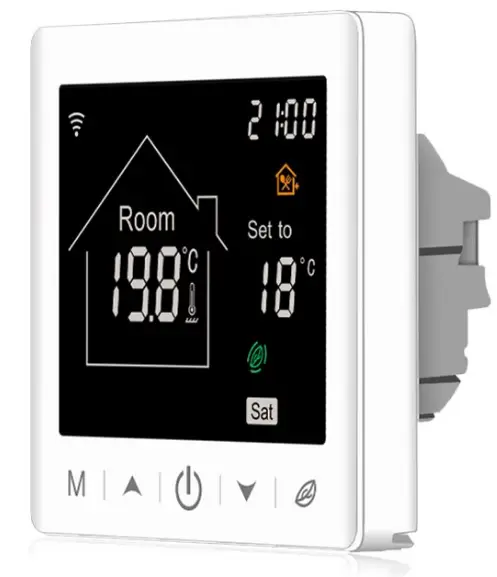

BEOK TR9B-WiFi Ultra-Large Colorful Screen Capacitive Touch LCD Smart Thermostat

Product Overview

This series of thermostats has Floor Heating, Fan Coil, and Integrated version, meeting the requirements under different scenarios.

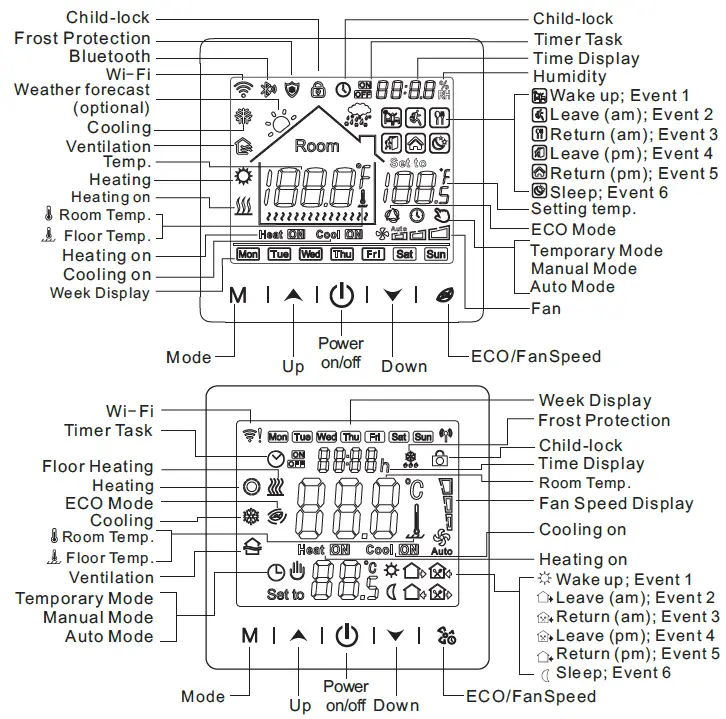

Display Symbols

Temperature Control Mode(Floor Heating/Integrated)

Auto Mode
In the weekly-circled program, up to 6 heating events can be set per day. Heating events, workdays, and temperature can be separately customized based on personal routines.

Manual Mode
The thermostat works based on manually-set temperature, disconnecting from auto mode.

Temporary Mode
The thermostat works based on manually-set temperature temporarily and then shifts back to auto mode till the next event.

• Customized exclusive temperature plan – up to 6 events allowed to set per day
• Sail-shape curved design – fashion, elegant and enduring
• UItra-large screen -better user interaction experience
•  485 Modbus and room card linkage – customized equipment (optional)

Parameter:

• Supply voltage: AC100-240V;50-60Hz
• Power consumption: 1W Max (Wi-Fi 3W Max)
• Temp. setting range: S-95’C (41-99’F)
• Floor limited range: 20-so·c csa-ss·F)
• Temp. Dif. 0.5-1D’C (1-10″F) , Factory setting ±1″C
• Ambient temperature: ~-so·c (23-122’F)
• Protection level: IP20
• Shell material: Anti-Flammable PC

User Operation

• Power on/off:
  Press “shortly to turn on/off the thermostat.
• Auto-mode:
  Press for 3 seconds to edit auto-mode settings. (Floor Heating/Integrated)
• Timer task:
  Press for 3 seconds to edit the timer task. (Fan Coil/Integrated)
• Time setting:
  Press for 3 seconds to set time. (Floor Heating)
  Press twice for 3 seconds to set time. (Automatic time synch for Wi-Fi version)
• Temp setting:
  Press or “ shortly to change setting temperature by 0.5°C.
• Child-lock:
  Press ” + for 3 seconds to activate child-lock.
• System mode:
  Press M shortly to switch cooling/heating/ventilation. (Fan Coil)
  Press “M ” shortly to switch cooling/heating/ventilation/floor heating/floor heating + heating. (Integrated)
• Temp control mode:  Press “M ” shortly to switch manual/auto mode. (Floor heating)
  Press shortly to switch manual/auto mode. (Integrated, floor heating
• Fan speed setting:  Press “ ” shortly to adjust fan speed.(Fan Cail/Integrated)
• ECO mode: Press ”shortly to set to ECO mode 18°C(64°F). (Floor heating)
• Advanced Setting (Usually for Professional Technicians)
  Under power-off, press “ ” for 3 seconds to enter advanced setting mode, then re-press
  “ M” to switch to next mode. Press “ ” to save and exit advanced setting mode.

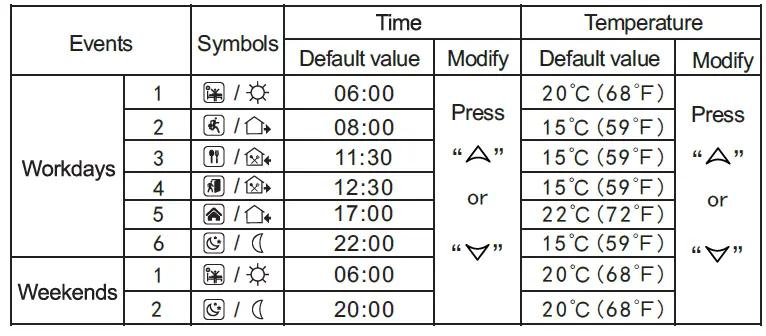

Auto-mode Setting (Floor Heating / Integrated)
Press “M ” for 3 seconds to edit auto-mode setting.

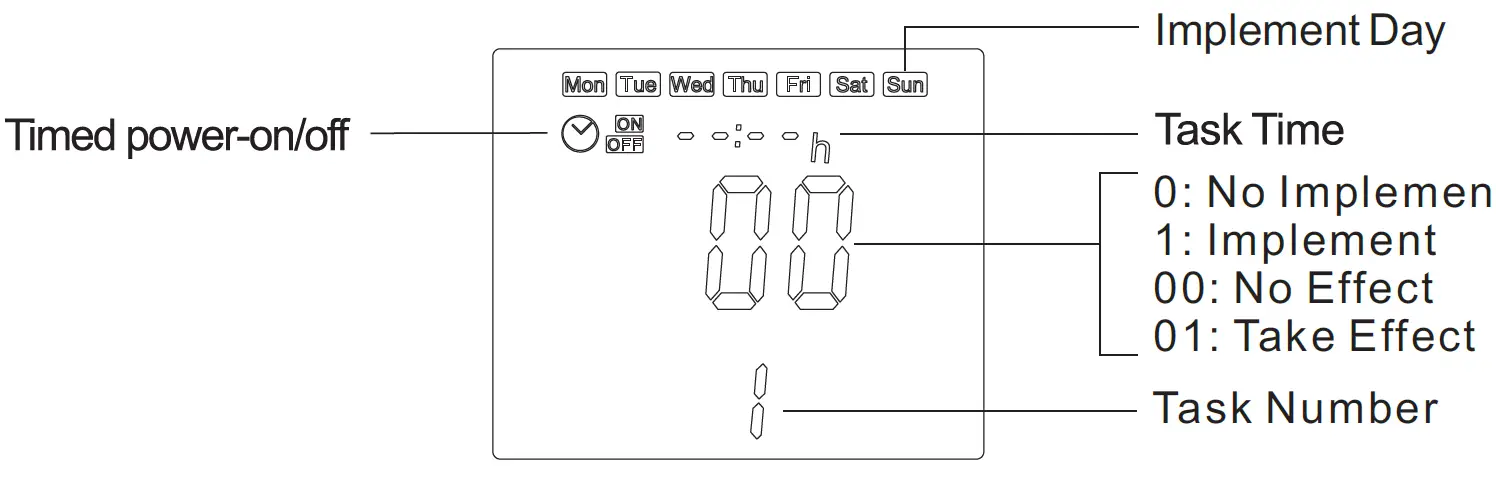

Timer Task Setting (Fan Coil / Integrated )
Press “ ” for 3 seconds to enter timer task setting; press “ M ” to change settings;
Press “ ” or “ ” to adjust parameters; press “ ” to save and exit.

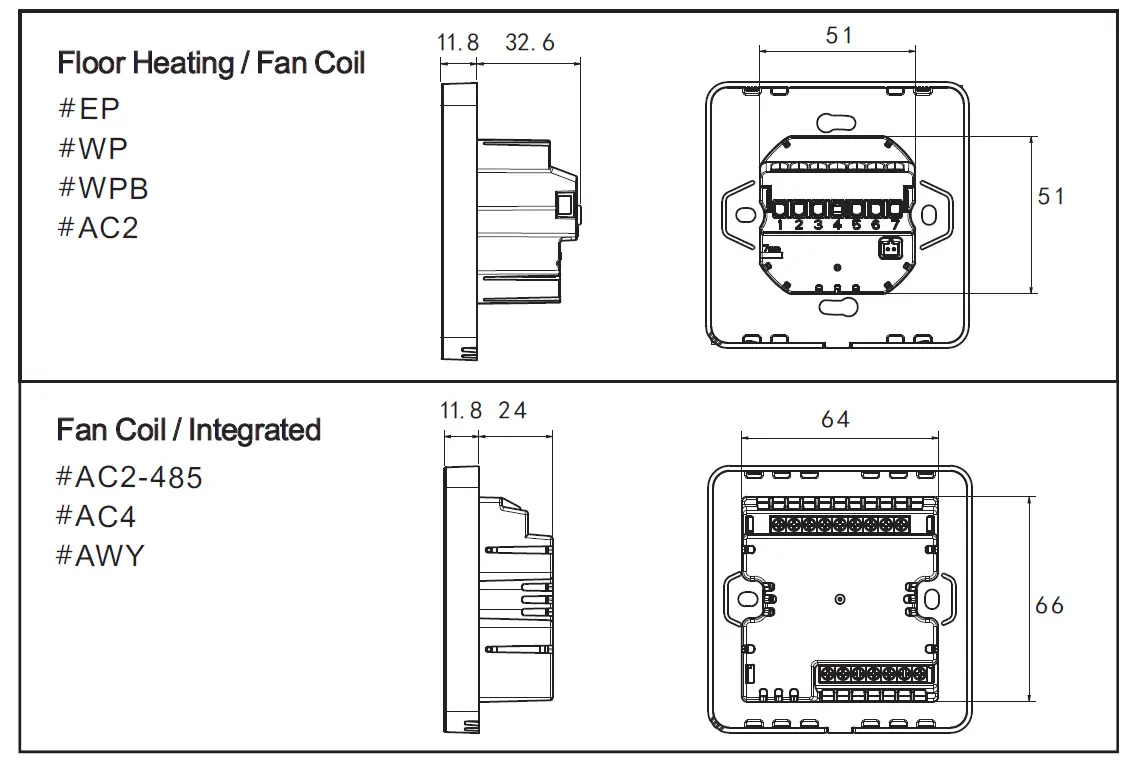

Dimensions (Unit: mm)

Mounting Steps

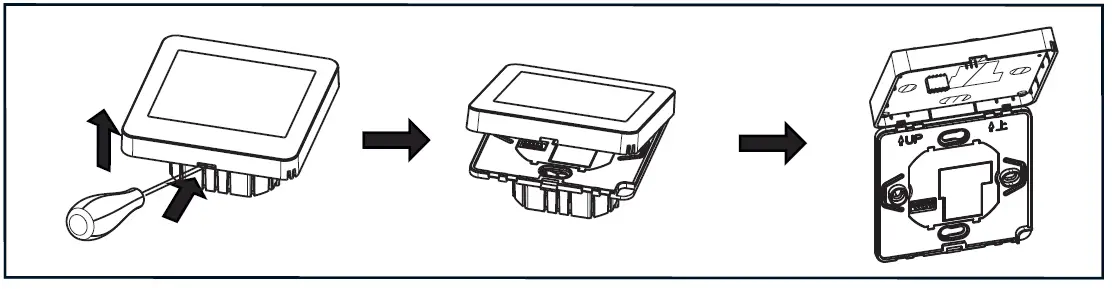

The thermostat adopts the pre-guide and limited snap-fit design. It is easy to mount. 1）Release the front cover by inserting a head screw-driver into the bottom crack.

Insert the wires and then fix these wires with screws. The suggested wire-stripping length is 7-9mm.

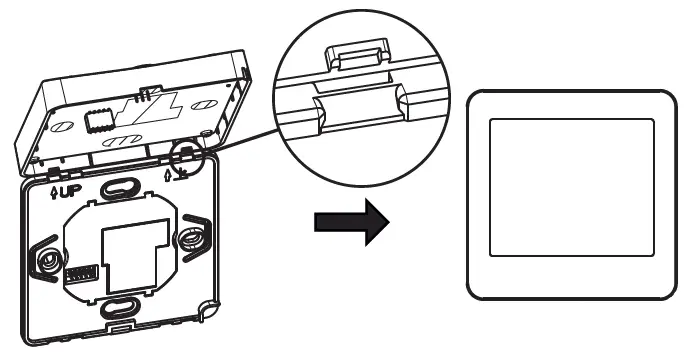

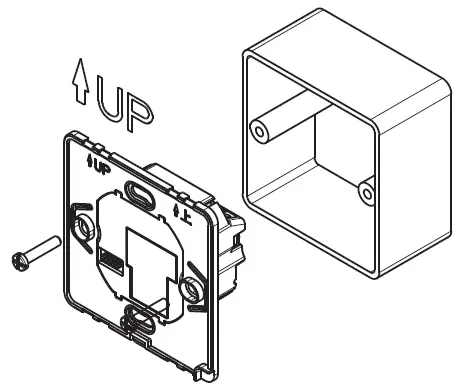

Mount backing plate into wall-cassette, put screws and then fix thermostat. Make sure that the thermostat is fixed without deformation. Suggested torque is 0.2~0.4N.m (2.0~4. 1kgf.cm).

Re-mount the front cover via snap-fit connection.

Sensor failure

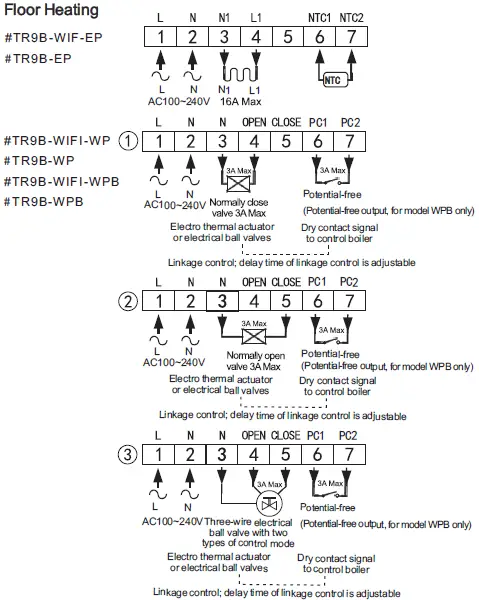

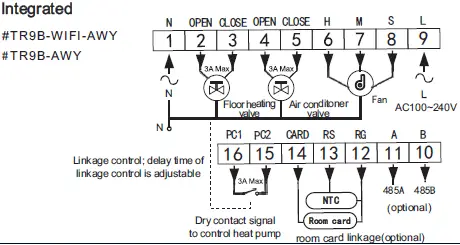

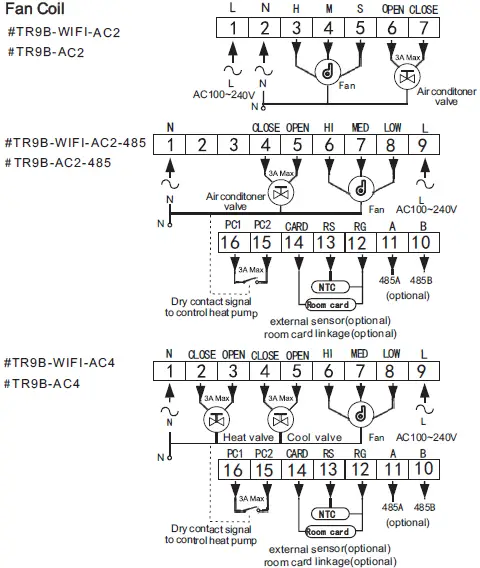

Connecting Diagram
The thermostat operates in full capacity in areas with the altitude of less than 2500 above sea level. Power rating of external load should be less than or equal to 80% rated power of the thermostat in areas with altitude of 2500m to 4200m.
