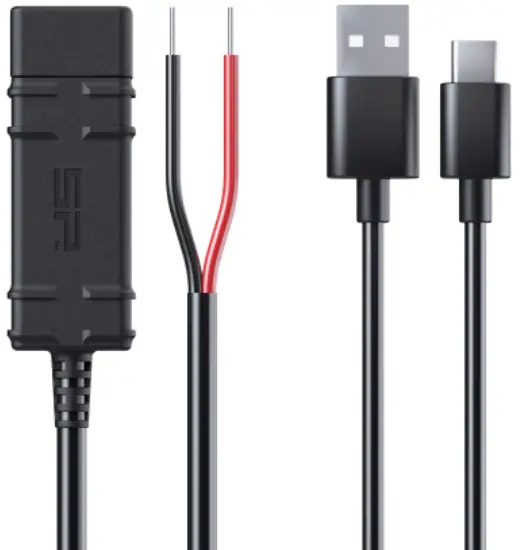

SP CONNECT MAN115 12V Hard Wire Cable Instruction Manual
FEATURES:
USB cable (USB-type A / USB-C)
Direct fast charging Samsung and iPhone
Reverse polarity protected
SPECIFICATIONS:
Input voltage DC 12 -24 V
Operating temperature -20 to + 60 C°
OUTPUT:
Max. power output 18 W
output DC 5 V/2A
output DC 9V/2A
output DC 12V/1,5A

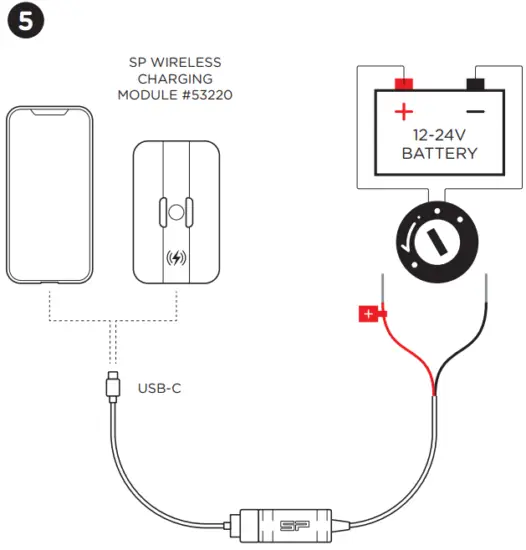

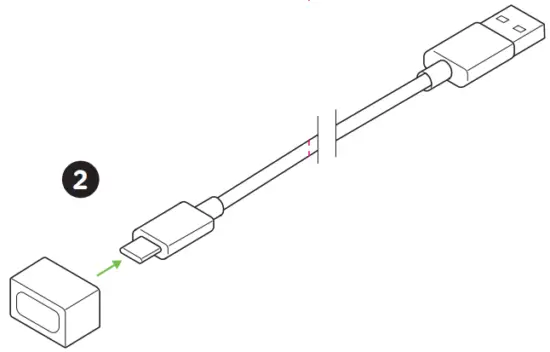

Installation Instruction

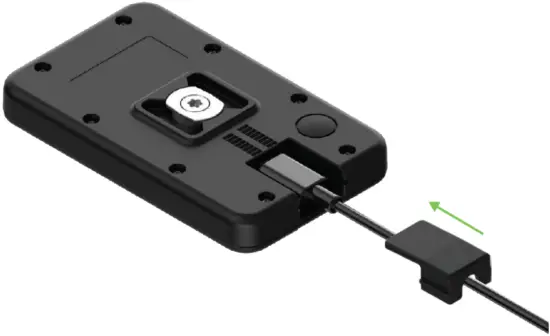

SP WIRELESS CHARGING MODULE
- Attach USB Cable

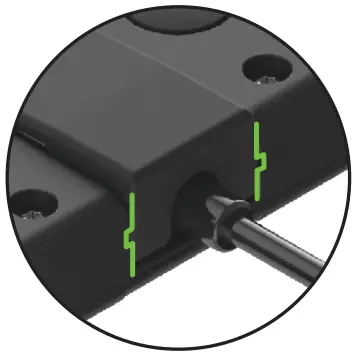

- Close Cable Lock Cap

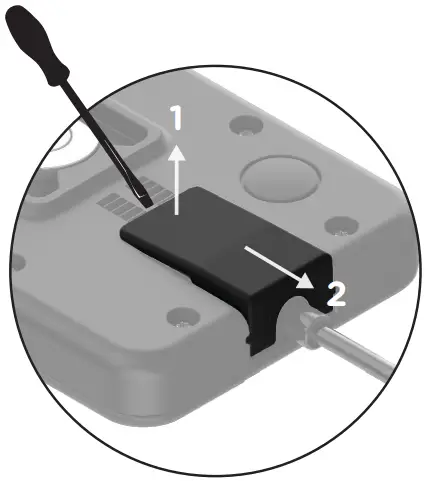

To Remove Cable Lock Cap:
- Lift Cable Lock Cap at Rear
- Push in Direction of Cable
To avoid battery drainage only wire to ignition positive / not steady positive. To be sure not to void your bike‘s warranty visit a authorized workshop.
Unplug Charger when not in use for longer time periods to avoid battery drain.
Use at own risk. In no event shall SP United Holding AG be liable for any direct, indirect, punitive, incidental, special consequential damages, to property, whatsoever arising out of or connected with the use or misuse of this product.
