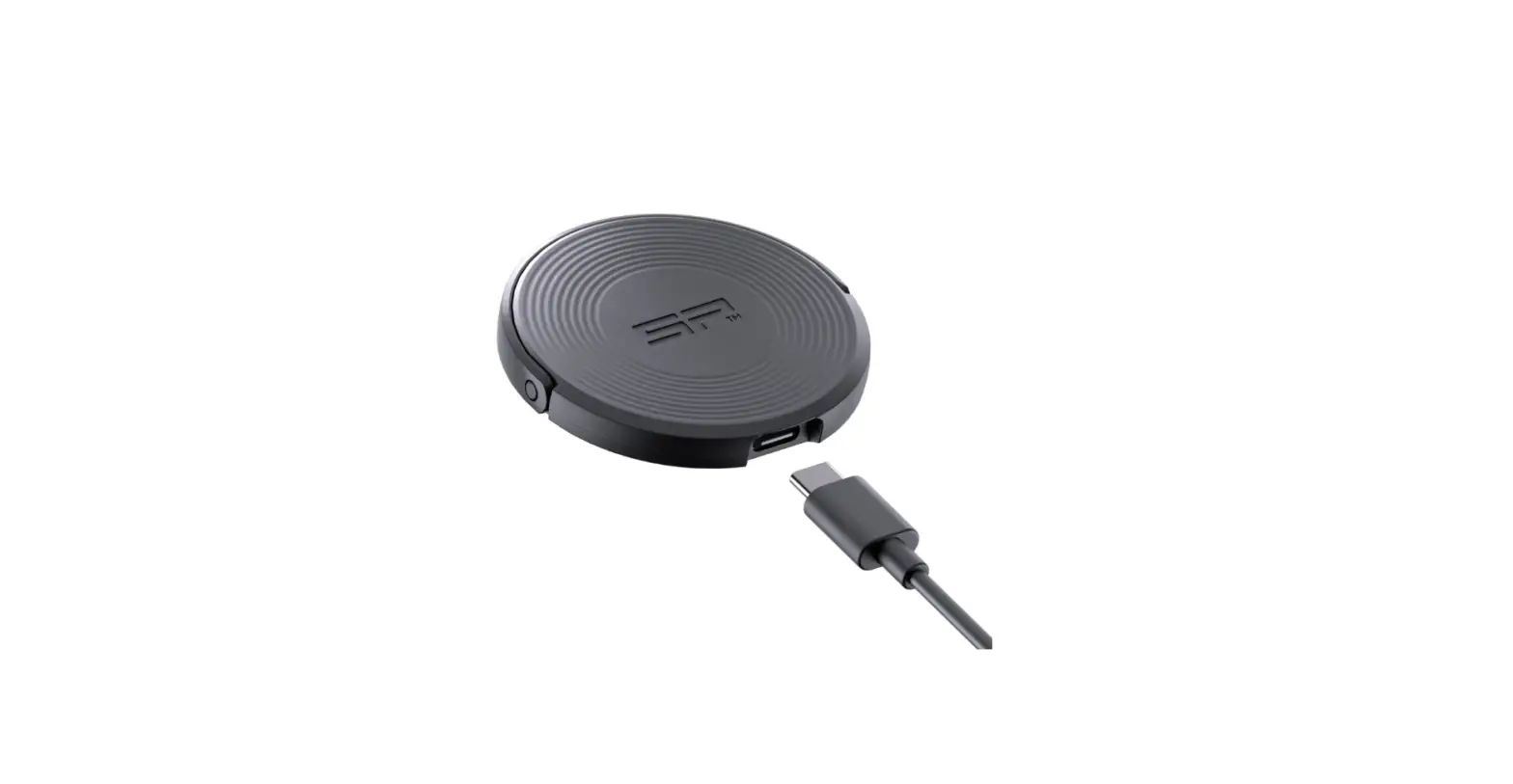

Charging Module
Product Information:
- Input: QC 2.0/3.0
- Wireless Output: Max 15W
- Recommended Operating Temperature: IP65
- Power Consumption: Charge power is variable and depends on
power source, phone model, temperature, etc. - Standby Power Consumption: 8-20 mA
- FCC Compliance: This device complies with Part 15 of the FCC
Rules. - Radiation Exposure: This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled environment.
Product Usage Instructions:
To use the charging module, please follow these
instructions:
- Connect the provided 12V DC cable (part number #52809) or the
6V DC cable (part number #52810) to the input of the charging
module. - Ensure that the charging module is placed in an outdoor
environment with a recommended operating temperature range. - Place your phone on the wireless charging pad of the charging
module. - Make sure there is a minimum distance of 20cm between the
radiator (charging module) and your body to comply with FCC
radiation exposure limits. - The charge power will vary depending on factors such as the
power source, phone model, and temperature. Please wait for the
phone to start charging. - If any error occurs, indicated by a red flashing light, refer
to the error codes mentioned in the user manual for troubleshooting
steps.
Note: The equipment has been tested and found to comply with FCC
rules. However, there is no guarantee that interference will not
occur in a particular installation. If interference is experienced,
try the following measures:
- Try turning the equipment off and on again.
- Ensure the equipment is installed and used according to the
provided instructions. - If interference persists, consult the user manual for further
guidance or contact customer support.
SP Connect is a registered trademark © 2022 SP United / PATENTED SYSTEM / All rights reserved
Technical Specifications
Input
Wireless Output
Recommended Operating Temperature Power Consumption
USB-C: USB-PD USB-A: 5V/2A · 5V/3A
QC 2.0/3.0
Max 15W Charge power is variable and depends on power source, phone model, temperature, etc.
-10–40° C Charge performance will drop above ~40° C
8–20 mA (Standby)
IP65 RATED: No ingress of dust; complete protection against contact (dust tight). Water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful effects. Minimum operating temperature: 0°C / 32°F
IP65
!
EN
ATTENTION!
· Cut off power supply when not in use. · Avoid use in a humid or high
temperature environment if possible. · Don’t hit, disassemble or re-assemble
the product – this may lead to malfunction. · For waterproof connection use compatible SP ConnectTM cables only. · High Temperatures can reduce charge efficiency. · Smartphone power consumption can exceed charge power. Setup phone appropriately!
Setup Tips for Outdoor Navigation
· Outdoor navigation at high temperature reduces charge efficiency.
· Use adaptive screen brightness, consider using night mode, switch off screen occasionally.
· Use locally stored maps to avoid data traffic and power consumption.
· Turn off data traffic if not needed.
· Turn off unnecessary apps running in the background.
· Turn off Wi-Fi antenna while you are moving.
DE
ACHTUNG!
· Stromzufuhr unterbrechen, wenn nicht in Verwendung.
· Einsatz in einer feuchten Umgebung oder bei hohen Temperaturen nach Möglichkeit vermeiden.
· Nicht auf das Produkt einschlagen, zerlegen oder wieder zusammenbauen · dies kann zu Fehlfunktionen führen.
· Für eine wasserdichte Verbindung nur kompatible SP ConnectTM-Kabel verwenden.
· Hohe Temperaturen können die Ladeleistung verringern.
· Der Stromverbrauch des Smartphones kann die Ladeleistung übersteigen. Telefon entsprechend einstellen!
Tipps zur Einrichtung für die Navigation im Freien
· Navigation im Freien bei hohen Temperaturen verringert die Ladeleistung.
· Verwende eine angepasste Bildschirmhelligkeit, erwäge den Nachtmodus und schalte den Bildschirm gelegentlich aus.
· Verwende lokal gespeicherte Karten, um Datenverkehr und Stromverbrauch zu vermeiden.
· Schalte den Datenverkehr aus, wenn er nicht benötigt wird.
· Schalte unnötige Apps aus, die im Hintergrund laufen.
· Schalte die Wi-Fi-Antenne aus, wenn du dich bewegst.
FR
ATTENTION!
· Couper l’alimentation électrique lorsqu’il n’est pas utilisé.
· Si possible, éviter d’utiliser le produit dans un environnement humide ou à des températures élevées.
· Ne pas frapper, démonter ou remonter le produit · cela peut entraîner un dysfonctionnement.
· Pour une connexion étanche, utiliser uniquement des câbles SP ConnectTM compatibles.
· Des températures élevées peuvent réduire la puissance de charge.
· La consommation d’énergie du smartphone peut dépasser la puissance de charge. Régler le téléphone en conséquence!
Conseils de configuration pour la navigation extérieure
· La navigation en extérieur à température élevée réduit l’efficacité de la charge.
· Utilisez une luminosité d’écran adaptative, pensez à utiliser le mode nuit, éteignez l’écran de temps en temps.
· Utilisez des cartes stockées localement pour éviter le trafic de données et la consommation d’énergie.
· Désactivez le trafic de données s’il n’est pas nécessaire.
· Désactivez les applications inutiles fonctionnant en arrière-plan.
· Éteignez l’antenne Wi-Fi lorsque vous vous déplacez.
ES
¡ATENCIÓN!
· Desconecta la fuente de alimentación cuando no la utilices.
· Si es posible, evita utilizarlo en un entorno húmedo o a altas temperaturas.
· No martillees, desmontes o vuelvas a montar el producto, ya que podrías provocar un mal funcionamiento.
· Utiliza sólo cables SP ConnectTM compatibles para una conexión a prueba de agua.
· Las altas temperaturas pueden reducir el rendimiento de la carga.
· El consumo de energía del smartphone puede superar la potencia de carga. ¡Ajusta el teléfono en consecuencia!
Consejos de configuración para la navegación en exteriores
· La navegación en exteriores a altas
temperaturas reduce la eficiencia de la carga.
· Utiliza un brillo de pantalla adaptado, considera el uso del modo nocturno, apaga la pantalla de vez en cuando.
· Utiliza mapas almacenados localmente para evitar el tráfico de datos y el consumo de energía.
· Apaga el tráfico de datos si no es necesario.
· Apaga las aplicaciones innecesarias que se ejecutan en segundo plano.
· Apaga la antena Wi-Fi cuando estés en movimiento.
CHARGING MODULE
EN / DE / FR / ES
FCC Statement
1
2
3
4
5
6
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.
1
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
CLICK
USB Power Source Stromquelle Source de courant Fuente de energía
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications However. there is
no quarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
90°
90°
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
RED
Ready / Bereit / Prêt / Listo
· Reorient or relocate the receiving antenna. · Increase the separation between the equipment and receiver.
2
1
2
BLUE
Charging / Lädt / Chargement / Cargando
· Connect the equioment into an outlet on a circuit different from that to which the receiver is connected.
· Consult the dealer or an experienced radio/TV technician for help.
RED FLASH
Error / Fehler / Erreur / Error
FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equioment should be installed
12V DC CABLE, #52809 6V DC CABLE, #52810
and operated with minimum distance 20cm between the radiator & your body.
