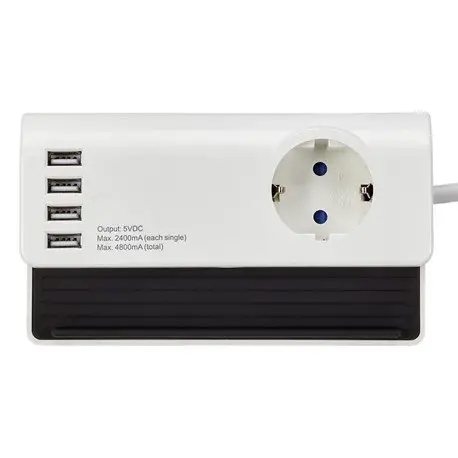

anslut 006249 Charging Station
SAFETY INSTRUCTIONS
- For indoor use only.
- Do not connect two or more power strips together.
- Do not connect appliances that need a current of more than 16 A.
- Do not connect appliances with an output of more than 3680 W.
- Always check that the plug on the connected appliance is fully inserted into the socket on the charging station.
- If the charging station needs cleaning, unplug it from the mains and wipe it with a dry cloth.
- Do not immerse the charging station in water or any other liquid.
- Check that the appliance to be controlled is switched off before plugging it into the charging station.
- The maximum capacity for the USB ports is 2400 mAh/port, alternatively 4800 mAh in all.
SYMBOLS:
Approved as per applicable directives
Recycle discarded products as electrical waste
TECHNICAL DATA
- Rated voltage 230 V ~ 50 Hz
- Rated voltage USB 5 V DC
- Max load 3680W
- Amperage Max16 A
- Connections 4 x USB, 1 x 230 V
- Max capacity USB 2,4 A/port, or 4,8 A in all
PRODUCT DATA SHEET (EU) 2019/1782
| Information published | Value and precision | Unit |
| Manufacturer’s name or trademark, commercial registration number, and address | ANS LUT | |
| Model identifier | 006249 | |
| Input voltage | 230 | V |
| Input AC frequency | 50 | Hz |
| Output voltage | 5 | V |
| Output current | 4,8 | A |
| Output power | 24 | w |
| Average active efficiency | 85 | % |
| Efficiency at low load (10 %) | 0,80 | % |
| No-load power consumption | 0,09 | w |
