ANKER 315 Wireless Charger Instruction Manual

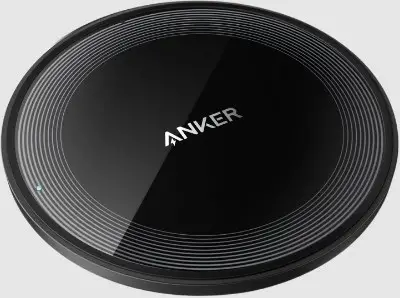

ANKER 315 Wireless Charger

LED IndicatorStatus
Solid blue for 3 seconds, then ofConnected to power
Solid blueCharging your device
Flashing blue
  1. Metal or abnormal object detected
  2. Over-voltage protection activated,indicating you need to switch to a 5V/9VDC adapter.
  • LIGHT ICON You cannot charge your device wirelessly when:
    • using a case with a magnetic/iron plate;
    • using a case with a pop socket;
    • using an ultra-thick (> 5 mm) protective phone case.
  • Connect the wireless charger to a Quick Charge 2.0/3.0 or Power Delivery wall adapter. Do not connect to a 5V/1A wall charger or a USB port on a computer as it may affect the wireless charging function.
  • Do not place any foreign objects between your device and the wireless charger’s surface, including metal pads on a car mount, magnetic cards, keys, coins, NFC cards, or other metal objects, as they could potentially demagnetize the wireless charger, affect the charging speed, or cause overheating.
  • Wireless charging products make charging more convenient than wired chargers, but confined by current wireless technology, their charging speed is slower than that of wired chargers.
  • High temperatures will reduce charging speed and restrict power.  It is recommended that you charge your device in environments with temperatures below 40°C / 104°F.

Important Safety Instructions

ICONS Please refer to the electrical and safety information on the bottom before installing or operating the product.

  • Avoid dropping.
  • Do not disassemble.
  • Do not expose to liquids.
  • This product is suitable for moderate climates only.
  • The maximum ambient temperature during use of this product must not exceed 40°C.
  • Open flame sources, such as candles, must not be placed on this product.
  • Only use a dry cloth or brush to clean this product.

FCC Warning
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

FCC RF Exposure Statement:
This equipment complies with FCC Radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the product and your body. The following importer is the responsible party (for FCC matters only).
Company Name: Fantasia Trading LLC
Address: 5350 Ontario Mills Pkwy, Suite 100, Ontario, CA 91764 Telephone: +1 800 988 7973

IC Warning Statement:
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licenceexempt RSS(s). Operation is subject to the following two conditions:

  1. This device may not cause interference.
  2. This device must accept any interference, including interference that may cause undesired operation of the device.

IC RF exposure statement:

This equipment complies with IC Radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 10cm between the product and your body.
IC RF déclaration d’exposition:
Este equipo cumple con los Iimites de exposici6n a radacion por radiofrecuencia de la IC estipulados para un ambiente no controlado. Este equipo debera instalarse y utilizarse con una distancia minima de 10 cm entre el radiador y el cuerpo.

Declaration of Conformity
Hereby, Anker Innovations Limited declares that this product is in compliance with Directives 2014/53/EU & 2011/65/EU. The full text of the EU declaration of conformity is available at the following internet address:
https://www.anker.com/

To comply with RF exposure requirements, a minimum separation distance of 20 cm must be maintained between the user’s body and the product.

CE MARK GB Declaration of Conformity
Hereby, Anker Innovations Limited declares that this product is in compliance with Radio Equipment Regulations 2017 and The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012. The full text of the GB declaration of conformity is available at the following internet address:
https://www.anker.com/
To comply with RF exposure requirements, a minimum separation distance of 20cm must be maintained between the user’s body and the product.

Specifications

Input5V 2A / 9V 2A
OutputWireless:
10W Max (for phones)
5W Max (for earbuds)
Operating Temperature0°C – 40°C
Radiated H-Field3.3dBμA/m@10m
TX/RX Frequency Range110 kHz~148 kHz (EU / UK only

Anker Innovations Limited Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong Kong The following importers are the responsible parties (contract for EU and UK matters) Anker Innovations Deutschland GmbH Georg-Muche-Strasse 3, 80807 Munich, Germany Anker Technology (UK) Ltd GNR8, 49 Clarendon Road, Watford, Hertfordshire, WD17 1HP, United Kingdom

DISPOSAL ICON This symbol indicates that this product shall not be treated as household
waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
