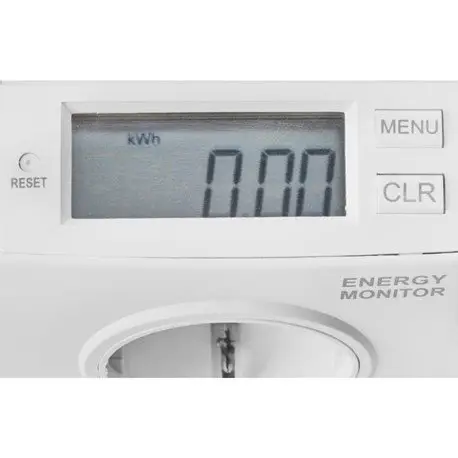

anslut 006252 Electricity Meter
SAFETY INSTRUCTIONS
- For indoor use only.
- Do not connect appliances that need a current of more than 16 A.
- Do not connect appliances with an output of more than 3600 W.
- Always check that the plug on the connected appliance is fully plugged into the socket on the electricity meter.
- If the meter needs cleaning, unplug it from the mains and wipe it with a dry cloth.
- Do not immerse the meter in water or any other liquid.
- Check that the appliance to be controlled is switched off before plugging it into the meter.
SYMBOLS
Approved as per applicable directives
Recycle discarded products as electric waste.
TECHNICAL DATA
- Rated voltage 230 V ~ 50 Hz
- Max load 3600W
- Amperage Max16 A
- Measuring precision W: ± 2.0% kWh:::;;; ±1.0%
- Power consumption : 5;1W
- Ambient temperature 5-40° (
- Max height above sea level 2000 m

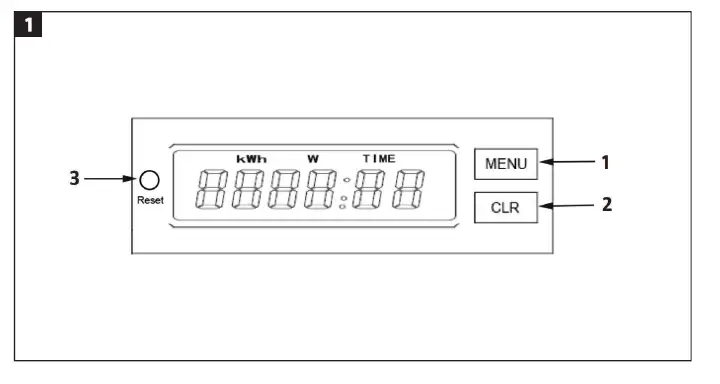

DESCRIPTION
- MENU switches between the display of power consumption (W), accumulated power consumption (kWh) and total run time.
- CLR resets run time and accumulated power consumption.
- Reset of the meter after a fault.
ELECTRICITY METER
OPERATING INSTRUCTIONS
Important! Read the user instructions carefully before use. Save them for future reference. (Translation of the original instructions).
