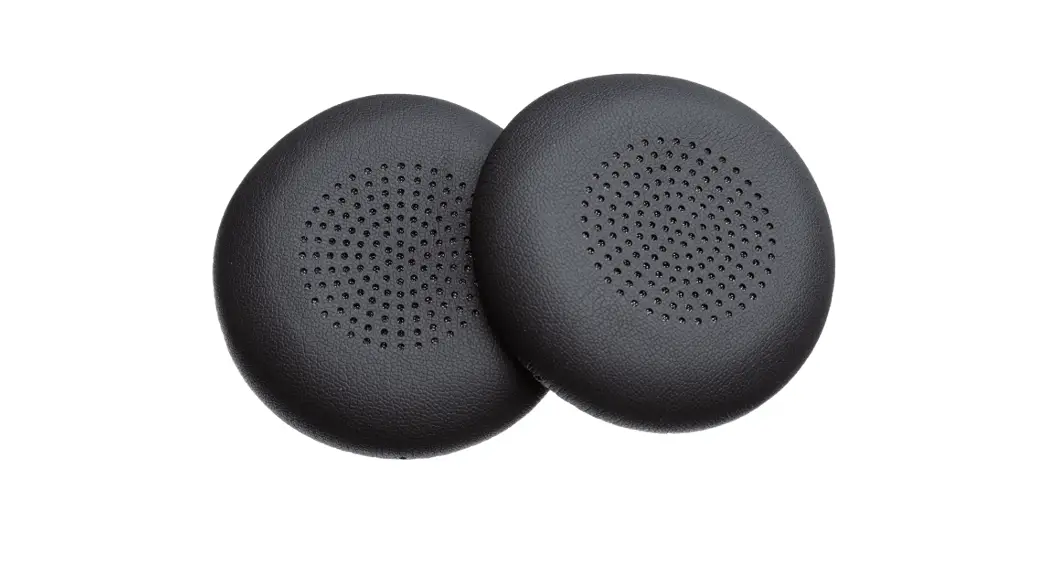

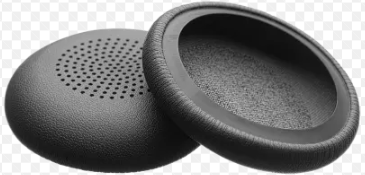

logitech ZONE WIRELESS Plus Replaceable Earpad Covers

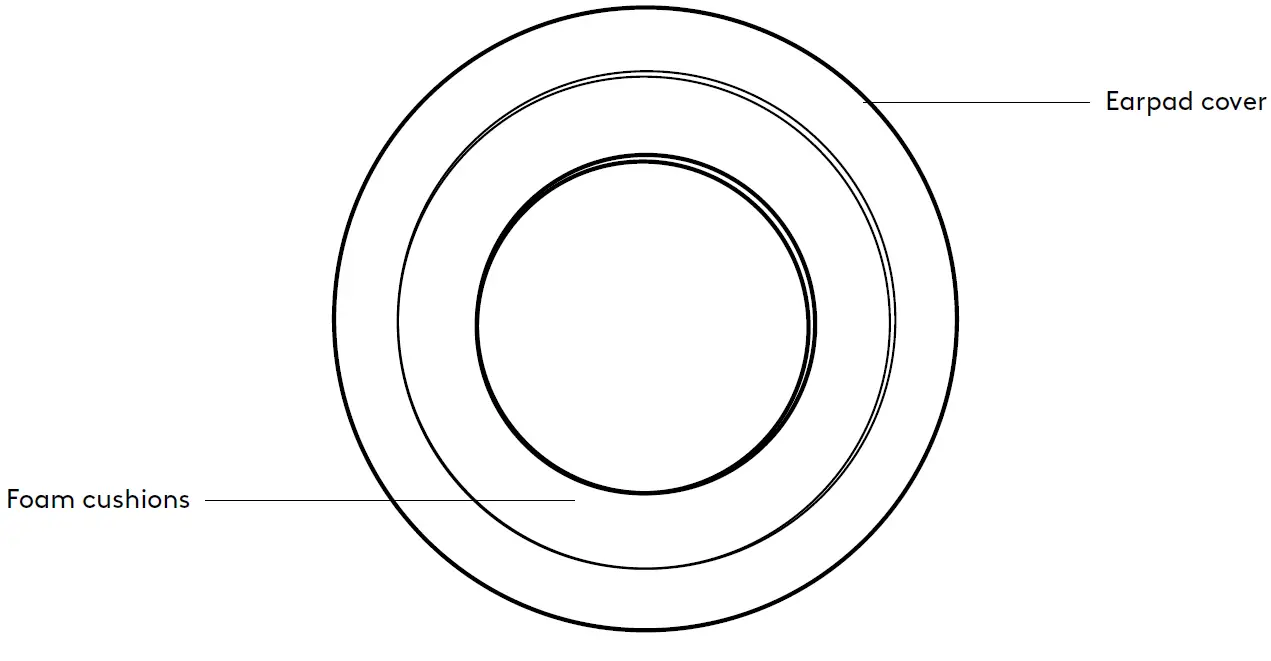

KNOW YOUR PRODUCT

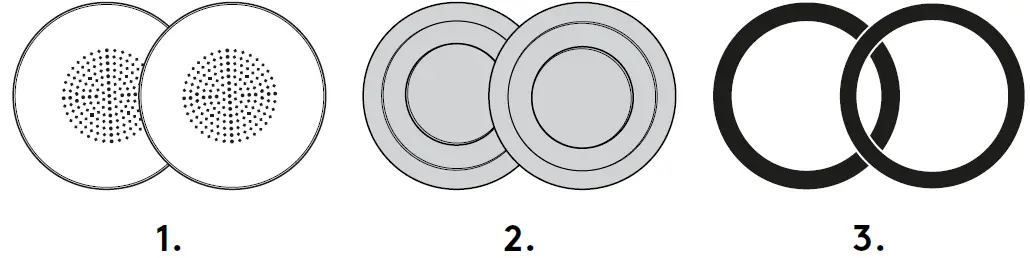

WHAT’S IN THE BOX
- 1 pair (2 pcs) of replaceable earpad covers
- 1 pair (2 pcs) of foam cushions

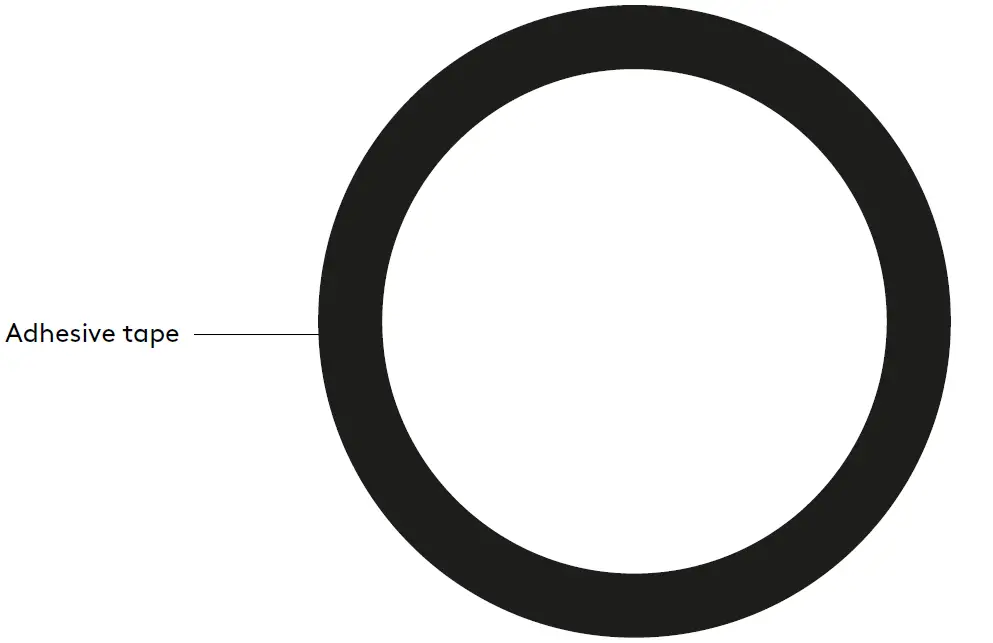

- 1 pair (2 pcs) of adhesive tapes
REPLACING EARPAD COVERS

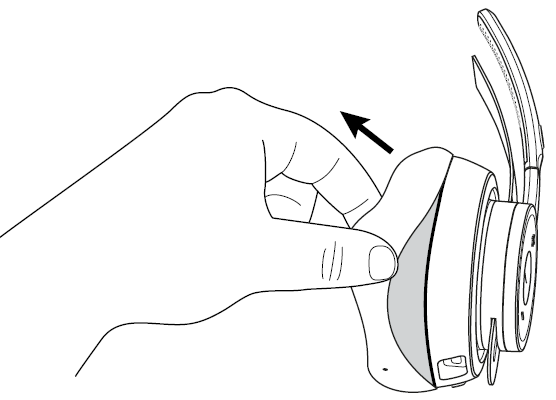

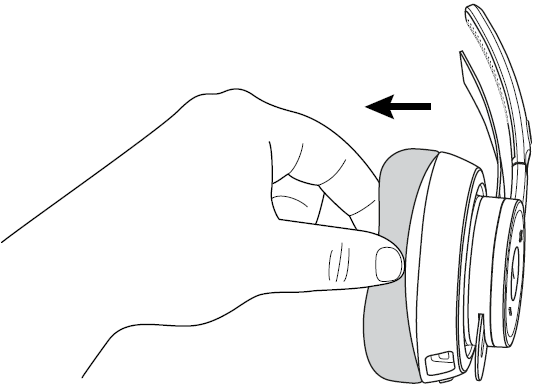

- Take the existing earpad cover off by carefully pinching the cover.

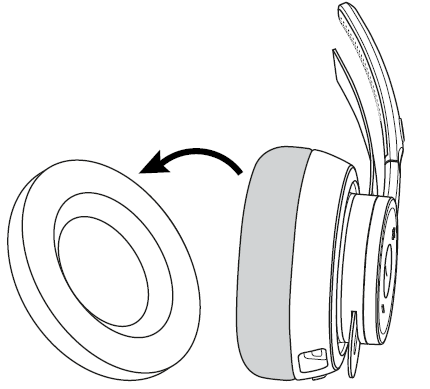

- Remove the earpad cover slowly until it is completely off.

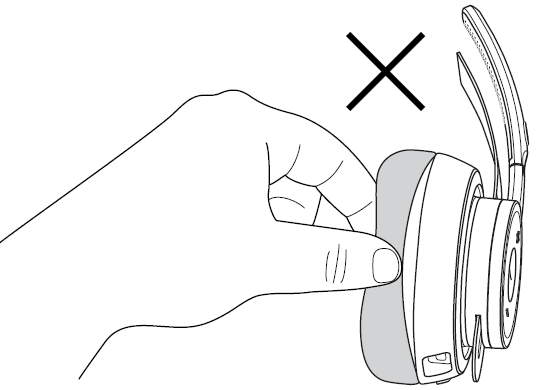

- Make sure not to pinch the foam cushion which can be damaged easily.
- Make sure not to pinch the foam cushion which can be damaged easily.
- If foam cushion is damaged, please follow the steps below.
- Peel the foam cushion off and replace with a new one.

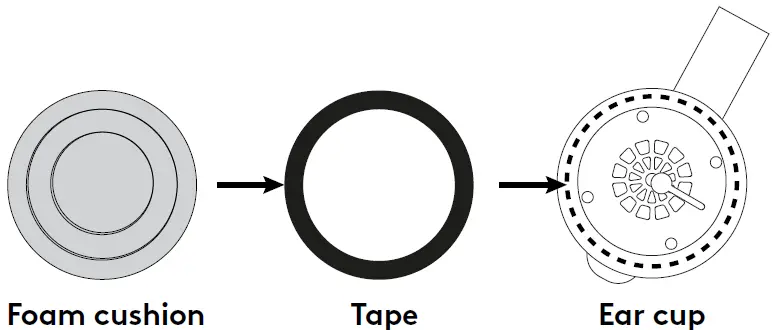

- Place the tape on the top of the ear cup first.
- Then attach the foam cushion to the tape.
- Peel the foam cushion off and replace with a new one.

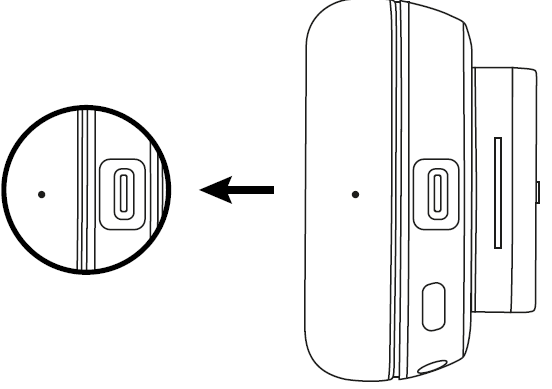

- Grasp the new earpad cover, making sure that the small holes on the side align with the top and bottom of the ear cup. It should align with the USB C port at the bottom.

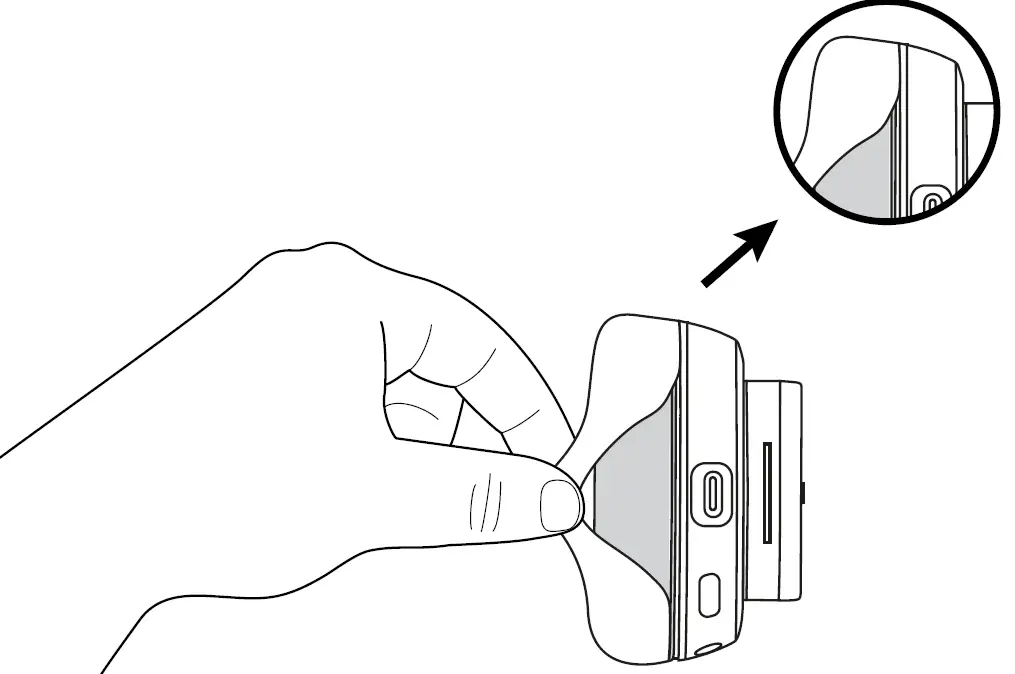

- Starting from the top, slot the edge of the earpad cover inside the gap. Put the edge of the cover into the gap around the earcan.

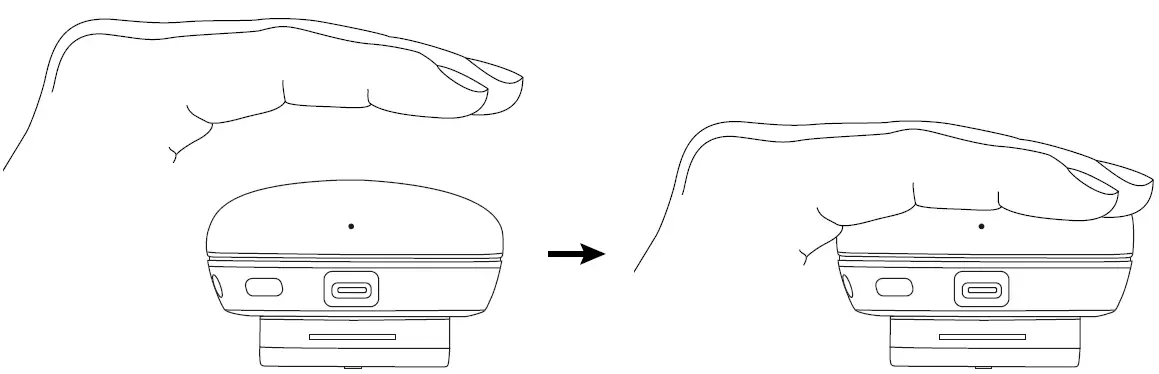

- After completing, gently pat the earcup several times to push the air out.
DIMENSIONS
EARPAD COVERS:
Height x Width x Depth: 70.7 mm x 70.7 mm x 16.4mm
www.logitech.com/support/zone-wireless-earpad-covers
