MeTra SPY-JB320W Large Junction Box

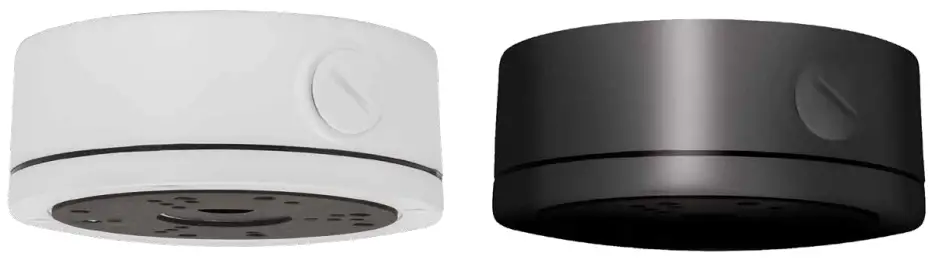

MeTra SPY-JB320W Large Junction Box-fig1

PRODUCT OVERVIEW

Camera installation is even better with Spyclops Junction boxes. Versatile conduit inputs and mount options allow for hidden cables and connections for a clean installation.
Designed for use with all mini dome & bullet Spyclops cameras

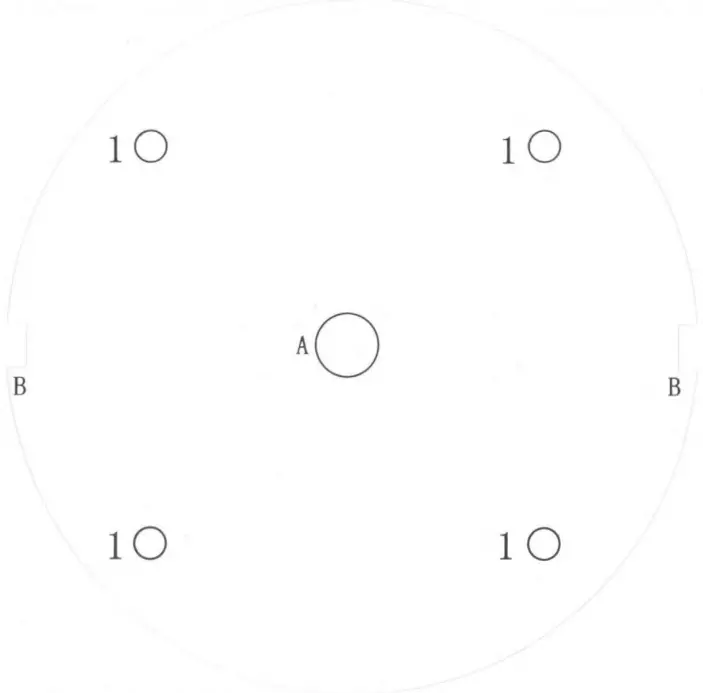

Drill Template

MeTra SPY-JB320W Large Junction Box-fig2

  • Hole A: for cables routed through the ceiling
  • Hole B: for cables routed through the side opening Screw
  • hole 1: for Mounting Base

DIMENSION

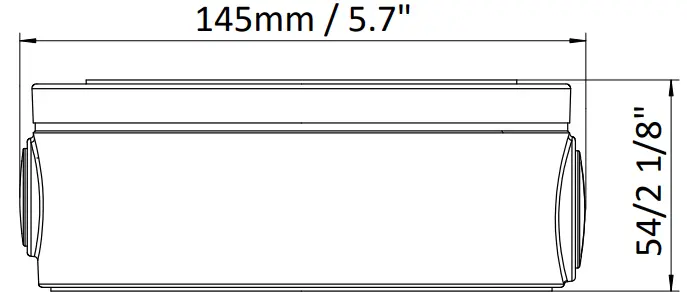

MeTra SPY-JB320W Large Junction Box-fig3

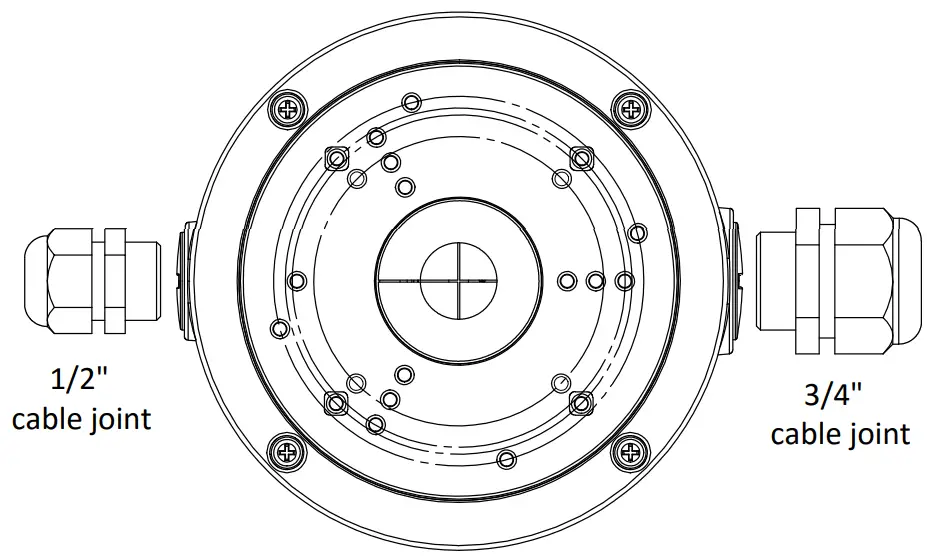

MeTra SPY-JB320W Large Junction Box-fig4

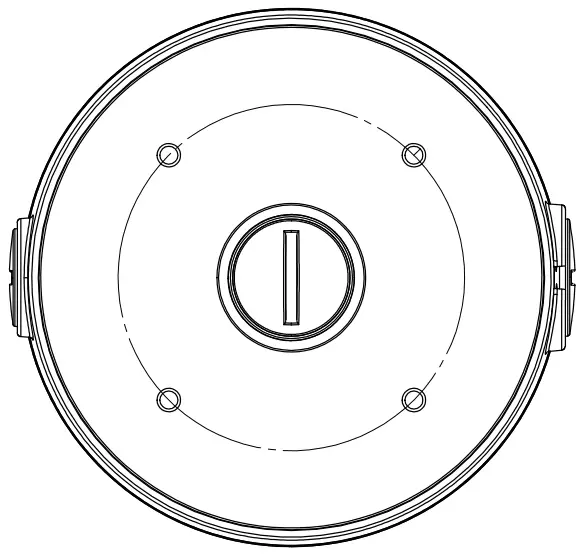

MeTra SPY-JB320W Large Junction Box-fig5

ABOUT COMPANY

  • www.MetraAV.com
  • 386-255-0234
  • © COPYRIGHT 2021 METRA ELECTRONICS CORPORATION 3/21
