PITTSBURGH - logo4 TON HYDRAULIC BODY REPAIR KIT

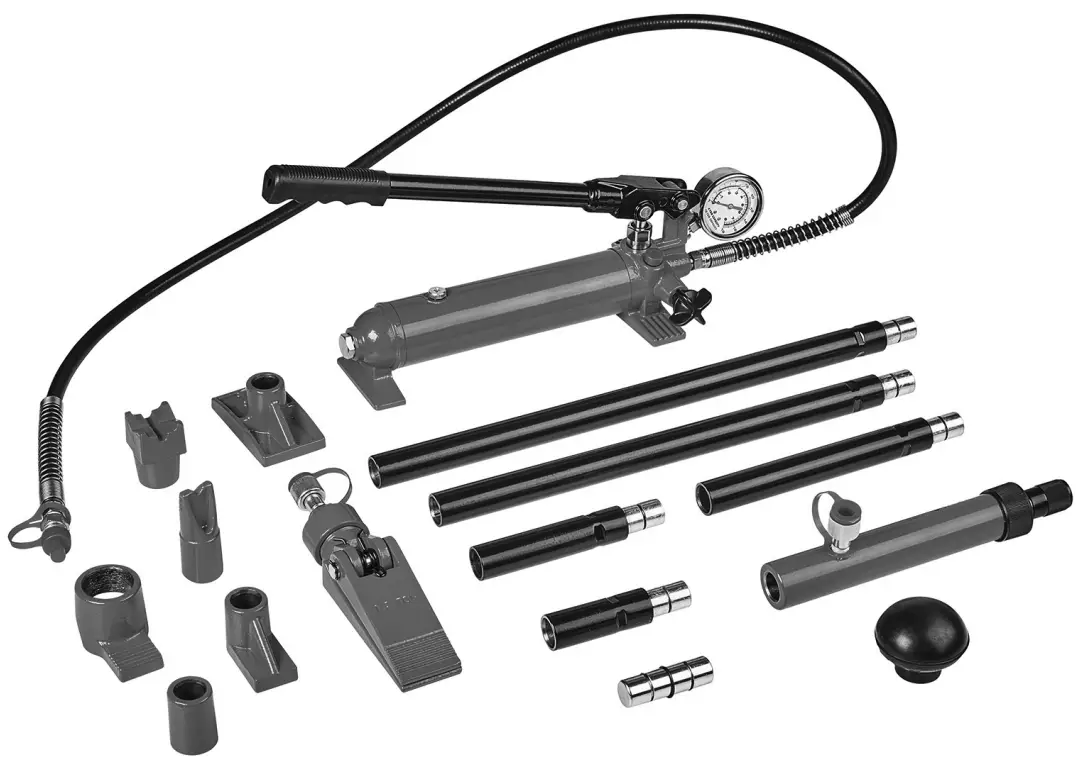

 Portable Hydraulic Equipment Kit
Owner’s ManualPITTSBURGH Portable Hydraulic Equipment Kit

Portable Hydraulic Equipment Kit

Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual (or month and year of purchase if product has no  number). Keep this manual and the receipt in a safe and dry place for future reference.

Item58204
Weight Capacity4 Tons (8,000 lb.)

Visit our website at: http://www.harborfreight.com
Email our technical support at: [email protected]
When unpacking, make sure that the product is intact and undamaged. If any parts are missing or broken, please call 1-888-866-5797 as soon as possible.
© Copyright 2021 by Harbor Freight Tools ® . All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improvements,  actual product may differ slightly from the product described herein. Tools required for assembly and service may not be included.

HARBOR FREIGHT 57880 Central Machinery 20 Inch High Velocity Floor Fan - warning Read this material before using this product. Failure to do so can result in serious injury. SAVE THIS MANUAL.

IMPORTANT SAFETY INFORMATION

HARBOR FREIGHT 57880 Central Machinery 20 Inch High Velocity Floor Fan - warning
Read all safety warnings and instructions.
Failure to follow the warnings and instructions may result in serious injury.
Save all warnings and instructions for future reference.
The warnings and precautions discussed in this manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator.

Work area

  1. Turn off the engine, set the parking brake, and chock the tires before working on a vehicle.
  2. Keep the work area clean and well lighted. Cluttered benches and dark areas increase the risk of injury to persons.
  3. Keep bystanders and children away while operating the tool. Distractions can result in loss of control of the tool.

Personal safety

  1. Stay alert. Watch what you are doing and use common sense when operating the tool. Do not use the tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating the tool increases the risk of injury to persons.
  2. Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair increases the risk of injury to persons as a result of being caught in moving parts.
  3. Use safety equipment. Wear ANSI-approved safety goggles and heavy-duty work gloves during use.

Tool use and care

  1. Do not force the tool. Use the correct tool for the application. The correct tool will do the job better and safer at the rate for which the tool is designed.
  2. Store the tool when it is idle out of reach of children and other untrained persons. A tool is dangerous in the hands of untrained users.
  3. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that affects the tool’s operation. If damaged, have the tool serviced before using. Many accidents are caused by poorly maintained tools.
  4. Use only accessories that are identified by the manufacturer for the specific tool model. Use of an accessory not intended for use with the specific tool model, increases the risk of injury to persons.
  5. Avoid off-center loads. If the Pump seems unusually hard to operate, immediately stop. Adjust the Ram to eliminate or diminish an off-center load. The Ram Toe and Plunger Toe must only be used together to prevent an off-center load.
  6. Protect the Hose. Do not drop heavy objects on the Hose. Avoid kinks in the Hose. Maintain proper clearance to avoid damage to the Hose and Couplers.
  7. Inspect repair before using vehicle. Repairs to structural or frame members must be inspected by a qualified technician to ensure that the structure is still strong enough to safely fulfill its function.

Service

  1. Tool service must be performed only by qualified repair personnel.
  2. When servicing a tool, use only identical replacement parts. Use only authorized parts.

BLAUPUNKT MS46BT Bluetooth CD-MP3 player with FM and USB - icon 3 SAVE THESE INSTRUCTIONS.

WARNING SYMBOLS AND DEFINITIONS
BLAUPUNKT MS46BT Bluetooth CD-MP3 player with FM and USB - icon 3This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
SKIL QC5359B 02 20V Dual Port Charger - warningIndicates a hazardous situation which, if not avoided, will result in death or serious injury.
HARBOR FREIGHT 57880 Central Machinery 20 Inch High Velocity Floor Fan - warningIndicates a hazardous situation which, if not avoided, could result in death or serious injury.
HARBOR FREIGHT 57880 Central Machinery 20 Inch High Velocity Floor Fan - cautionIndicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
HARBOR FREIGHT 57880 Central Machinery 20 Inch High Velocity Floor Fan - notice Addresses practices not related to personal injury.

Specifications

Ram Capacity4 Tons
Ram Travel4-3/4″
Extension Tubes3-1/4″, 5″, 8-1/2″, 16-1/2″, 19-1/2″
Spreader Capacity1⁄2 Ton 3-5⁄8″ Maximum Opening
Plunger/Ram Toe Capacity2 Tons
Rubber Head Capacity1/2 Ton
Hose Length5′

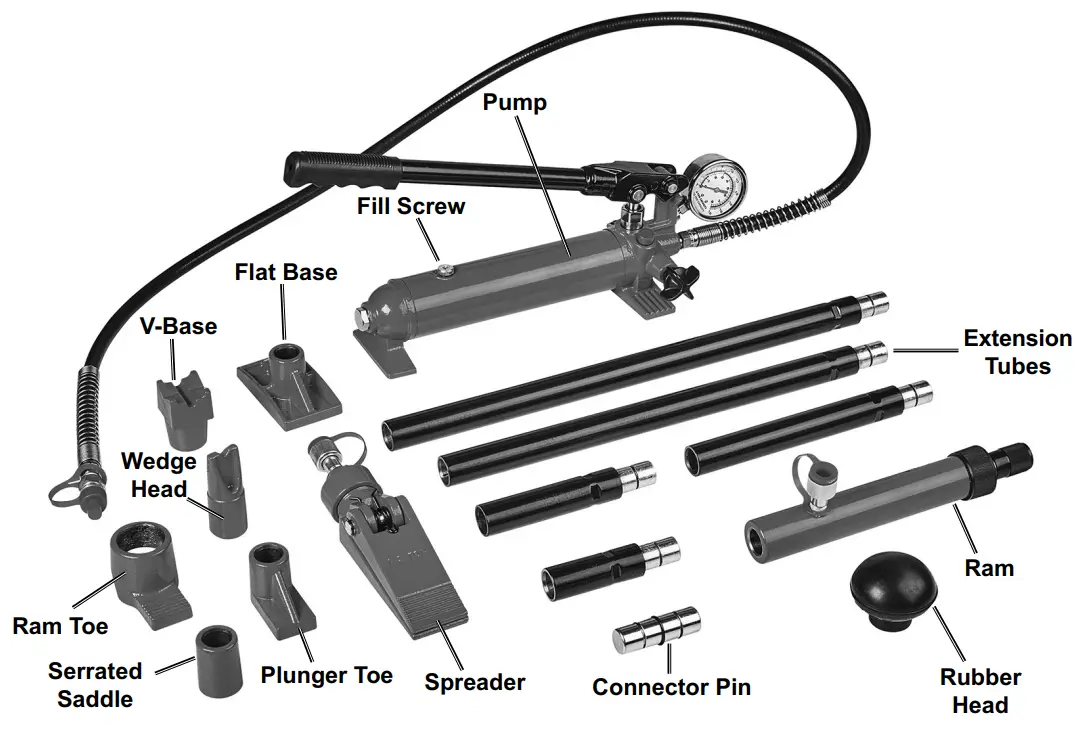

Functions

PITTSBURGH Portable Hydraulic Equipment Kit - Functions

Set Up

BLAUPUNKT MS46BT Bluetooth CD-MP3 player with FM and USB - icon 3 Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product.
NOTICE: To prevent damage, do not overextend the Ram.

Ram Attachments

  1. The Extension Tubes connect in different combinations to reach desired lengths.
  2. The Connector Pin is used to connect the female end of the Ram to a Base.
  3. The Flat Base is used on the stationary side to spread out the force of the Ram.
  4. The V Base is used to spread out force on curved surfaces.
  5. The Serrated Saddle is used on the pushing end to prevent slipping.
  6. The Rubber Head is used for popping dents out of sheet metal such as doors or body panels and to minimize damage to the work surface.
  7. The Wedge Head is used to repair small dents and areas located in angles and tight spaces.
  8. The Ram Toe and Plunger Toe are used together to allow spreading in areas that the Ram cannot fit into.

Note: The Ram Toe and Plunger Toe must only be used together to prevent an off-center load.

Ram Setup

Note: When positioning the Ram use a smaller attachment on the side that is to be bent instead of the stationary side. If the stationary side is in danger of being bent or damaged, place a block of wood or other material behind the Flat Base to distribute pressure  over a greater area.

  1. Unscrew the End Plugs located on the end of the Hose and Ram. Clean the end of the Hose and the inlet on the Ram with a clean cloth.
  2. Attach the Hose to the Ram.

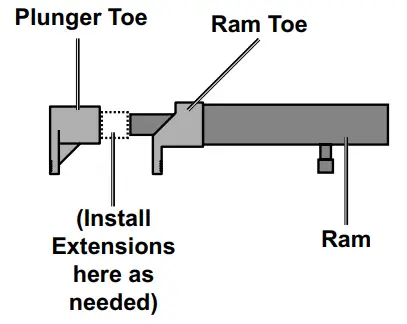

  3. Assemble attachments as shown below:
PITTSBURGH Portable Hydraulic Equipment Kit - Ram SetupPITTSBURGH Portable Hydraulic Equipment Kit - Ram Setup1

Note: If using the Ram Toe and Plunger Toe, thread the Ram Toe onto the Ram completely and align the Plunger Toe to it. The Ram Toe and Plunger Toe must only be used together to prevent off-center load.
Note: When repairing larger body panel dents such as a dented door, fender or quarter-panel use the Rubber Head on the pushing end.

Spreader Setup

The Spreader is used when the Ram is too long to fit between the stationary side and the damaged area.

  1. Clean the end of the Hose and the inlet on the Spreader with a clean cloth.
  2. Unscrew and save the End Plugs located on the end of the Hose and Spreader.

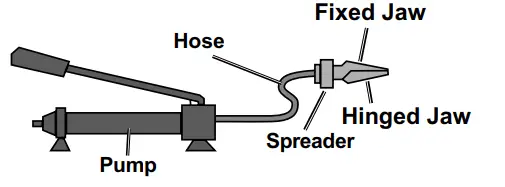

  3. Attach the Hose to the Spreader, as shown below:

PITTSBURGH Portable Hydraulic Equipment Kit - Spreader

Load Limits Using Attachments

Ram Capacity
Using V-Base, Serrated Saddle, or Wedge Head100% of Capacity
If Extension Tube Qty = 150% of Capacity
If Extension Tube Qty = 225% of Capacity
If Extension Tube Qty = 312% of Capacity
If Extension Tube Qty = 46% of Capacity
If Extension Tube Qty = 53% of Capacity
Plunger Toe Capacity
Using ONLY Plunger Toe with Ram100% of Capacity
If Extension Tube Qty = 150% of Capacity
If Extension Tube Qty = 225% of Capacity
If Extension Tube Qty = 312% of Capacity
If Extension Tube Qty = 46% of Capacity
If Extension Tube Qty = 53% of Capacity
Rubber Head Capacity
If Ext Tube Qty = 1, 2, or 3100% of Capacity
If Extension Tube Qty = 450% of Capacity
If Extension Tube Qty = 525% of Capacity

Operation

BLAUPUNKT MS46BT Bluetooth CD-MP3 player with FM and USB - icon 3 Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product.
WARNING! TO PREVENT SERIOUS INJURY: Keep hands away from contact areas and tight spaces. The tool may slip and cause injury.

NOTICE: To prevent damage, do not overextend the Ram.

  1. IMPORTANT! Check the Hydraulic Fluid level, following the instructions in the Cleaning and Maintenance section.
  2. Remove any obstructions that could be damaged or are in the way.
  3. Check that the Pressure Gauge is functioning properly. The Gauge will help ensure that the system is not under load when disconnecting hoses or equipment, as well as estimate the force being placed on the Rams.

Using Ram:

  1. Position the Ram so that the Base is resting against a frame member opposite the damaged area. It must also be in line with the direction in which the damaged area needs to be pushed. The vehicle body part must be stronger than the area to be bent or it  may be damaged. A block of wood or a towel may be used to protect the body part.
  2. Aim the pushing end towards the area that needs to be repaired, and slowly apply pressure with the Pump.
  3. When the damaged area has been bent to the desired position, slowly turn the Relief Valve counterclockwise to release the hydraulic pressure and remove the Ram or Spreader.PITTSBURGH Portable Hydraulic Equipment Kit - Spreader1
  4. Clean all hydraulic ports and cover them with clean End Plugs.

Using Spreader:

  1. Place the Spreader so that the hinged (pushing) jaw is resting against the part to be moved and the stationary jaw is resting against a non-movable base.
  2. Carefully hold the Spreader in position and apply pressure with the Pump.
  3. Once both ends have made contact, move as far away as possible and continue to slowly apply pressure to the damaged area until the desired bend has been made.
  4. When the damaged area has been bent to the desired position, slowly turn the Relief Valve counterclockwise to release the hydraulic pressure and remove the Ram or Spreader.
  5. Clean all hydraulic ports and cover them with clean End Plugs.

Maintenance and Servicing

BLAUPUNKT MS46BT Bluetooth CD-MP3 player with FM and USB - icon 3 Procedures not specifically explained in this manual must be performed only by a qualified technician.

HARBOR FREIGHT 57880 Central Machinery 20 Inch High Velocity Floor Fan - warning
TO PREVENT SERIOUS INJURY FROM TOOL FAILURE: Do not use damaged equipment.
If abnormal noise or vibration occurs, have the problem corrected before further use.

  1. BEFORE EACH USE, inspect the general condition of the tool. Check for:
    • leaking hydraulic fluid,
    • loose hardware or parts,
    • misalignment or binding of moving parts,
    • cracked, bent or broken parts, and
    • any other condition that may affect its safe operation.
  2. Keep the surface of this tool and its accessories free of hydraulic fluid and grease. Use only a mild detergent and damp cloth when cleaning. Do not use a flammable or combustible solvent to clean this tool or its accessories.
  3. Keep hydraulic connections clean. Clean all hydraulic ports and replace End Plugs immediately after use.
  4. Store the Pump with the Relief Valve open.
  5. AFTER USE, wipe dry with a clean cloth. Then, store the Kit in a safe, dry location out of reach of children and other non-authorized people.

Filling Hydraulic Fluid

IMPORTANT! Before first use, check for proper hydraulic fluid level and thoroughly test the equipment. If the equipment does not perform properly after filling to the correct fluid level, bleed excess air from the hydraulic system following the Bleeding Air instructions in this manual.

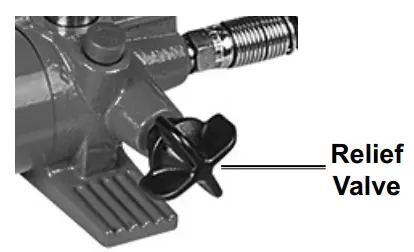

  1. Close the Relief Valve.
  2. Turn Pump upside down so that the hose outlet faces downward.
  3. Lift Pump Handle to its highest position.
  4. Place Pump on a flat surface.
  5. Remove the Fill Screw.
  6. The fluid level should be near the bottom of the opening. If required, add high grade hydraulic fluid.
  7. Replace the Fill Screw. Tighten securely.
  8. Open the Relief Valve.
  9. Move Handle back down to its lowest position.

Changing Hydraulic Fluid

  1. Change the hydraulic fluid yearly.
  2. Remove the Fill Screw and tilt the Pump to drain out the old fluid.
  3. Refill the hydraulic fluid, replace the Fill Screw, and bleed the system several times to ensure all air is out of the system.

Bleeding Air

Bleeding Air from Pump Piston

  1. Place Pump on a flat surface so that Fill Screw is facing upward.
  2. Open the Relief Valve.
  3. Pump the Handle 10 to 15 times to eliminate air in the Piston.
  4. Close the Relief Valve.
  5. If air remains in the Piston, repeat above.

Bleeding Air from Pump Reservoir

  1. Place Pump on a flat surface so that Fill Screw is facing upward.
  2. Make sure the Relief Valve is closed.
  3. Lift Handle to its highest position.
  4. Loosen the Fill Screw. Air will bleed out after loosening.
  5. Tighten the Fill Screw.
  6. Open the Relief Valve.
  7. Move Handle to its lowest position.
  8. Close the Relief Valve.
  9. If air remains in the Reservoir, repeat above.

Bleeding Air from Ram

  1. Place Pump on a flat surface so that Fill Screw is facing upward.
  2. Connect the Pump to the Ram.
  3. Pump the Handle until the Ram is extended out by at least 50 percent.
  4. Position Ram below both Pump and Hose. Keep Hose pointed downward across its whole length.
  5. Position Ram so that the Piston Rod faces downward.
  6. Open Relief Valve on the Pump and fully retract the Ram.
  7. If air remains in the Ram, repeat above.

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS DOCUMENT AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY  REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE  MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL  RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

Parts List and Diagram

Parts List – Full Kit

PartDescriptionQty.
01Pump1
02Ram1
03Spreader1
04Case1
05Extension Tube5
06Ram Toe1
07Plunger Toe1
08Wedge Head1
09V-Base1
10Connector Pin1
11Serrated Saddle1
12Rubber Head1
13Flat Base1

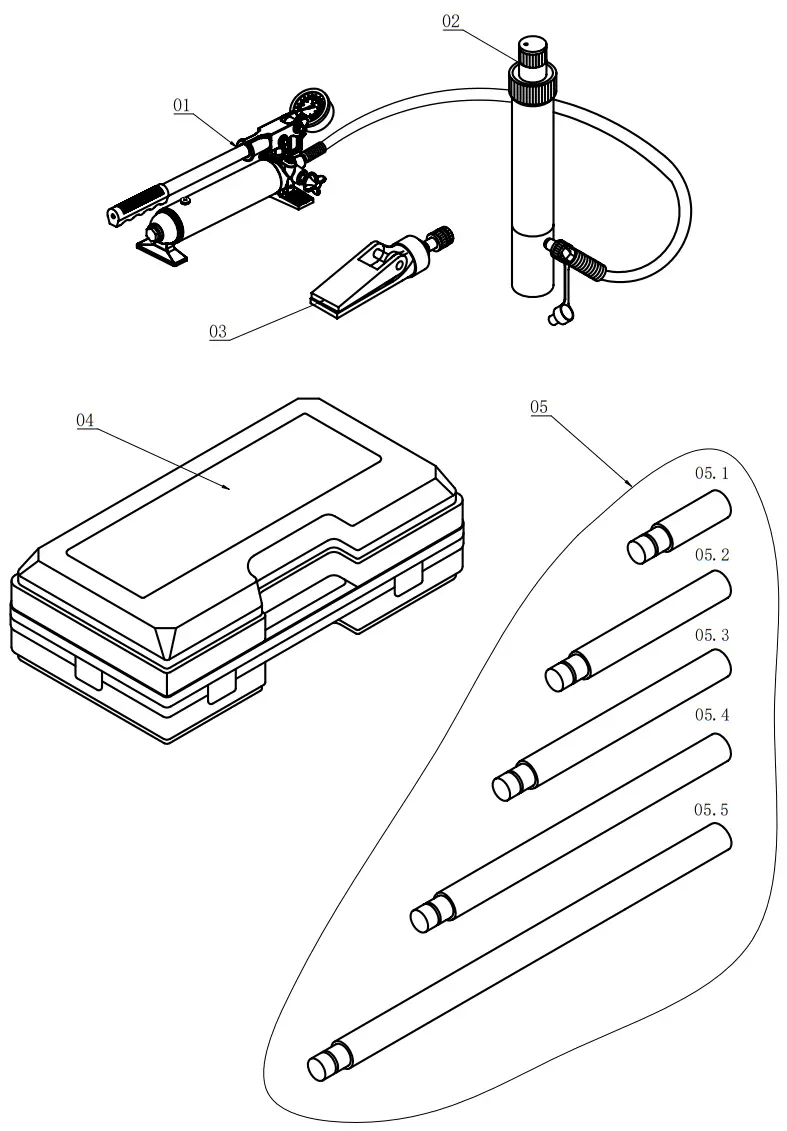

Assembly Diagram – Full KitPITTSBURGH Portable Hydraulic Equipment Kit - Full Kit.

Parts List – Pump

PartDescriptionQty.
P1Screw1
P2O Ring1
P3End1
P4O Ring2
P5Rod1
P6Reservoir1
P7Screw1
P8Filter1
P9Pump1
P10Steel Ball3
P11Steel Ball1
P12Spring1
P13Washer1
P14Screw1
P15Copper Ring1
P16Piston Seat1
P17Dust Ring1
P18Seal Ring2
P19Screw1
P20Piston1
P21Steel Ball1
P22Steel Ball Seat1
P23Spring1
P24Screw1
P25O Ring2
P26Screw1
P27Cap1
P28O Ring1
P29Relief Valve Knob1
P30Oil Hose1
P31Connector1
P32Dust Cap1
P33Magnetic Steel1
P34Handle1
P35Handle Grip1
P36Pin1
P37Retainer Ring2
P38Pin1
P39Gauge1
P40O Ring1
P41Connector1
P42Nut1

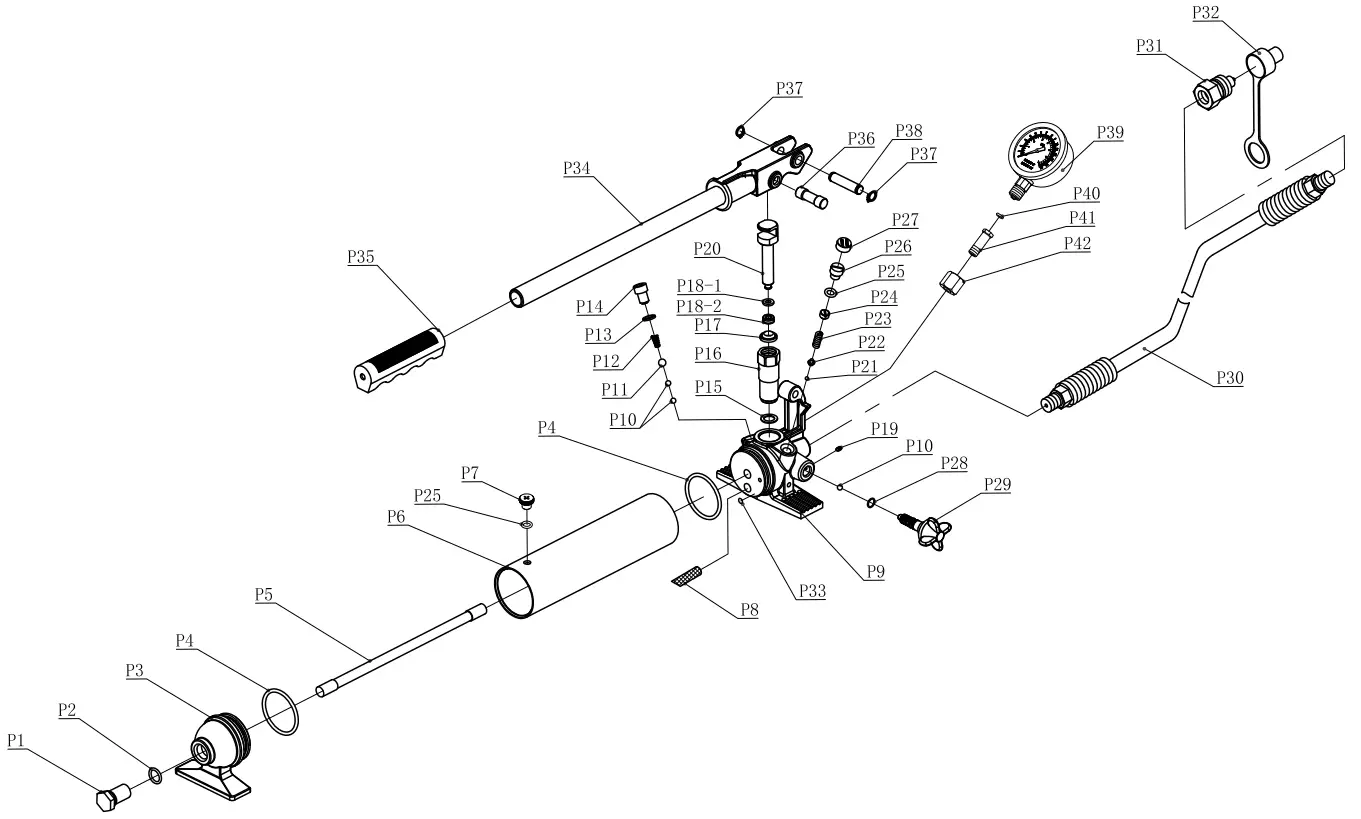

Assembly Diagram – Pump

PITTSBURGH Portable Hydraulic Equipment Kit - Pump



Parts List – Ram

PartDescriptionQty.
RO1Cover1
R02Retainer Ring1
R03Piston Rod1
R04Limit Ring1
R05Washer1
R06Nut1
R07Seal Ring1
R08Retainer Ring1
R09Spring1
R10Screw1
R11Protect Cover1
R12Limit Ring1
R13Cylinder1
R14Screw1
R15Connector1
R16O Ring1
R17Dust Cap1
R18Seal Ring1

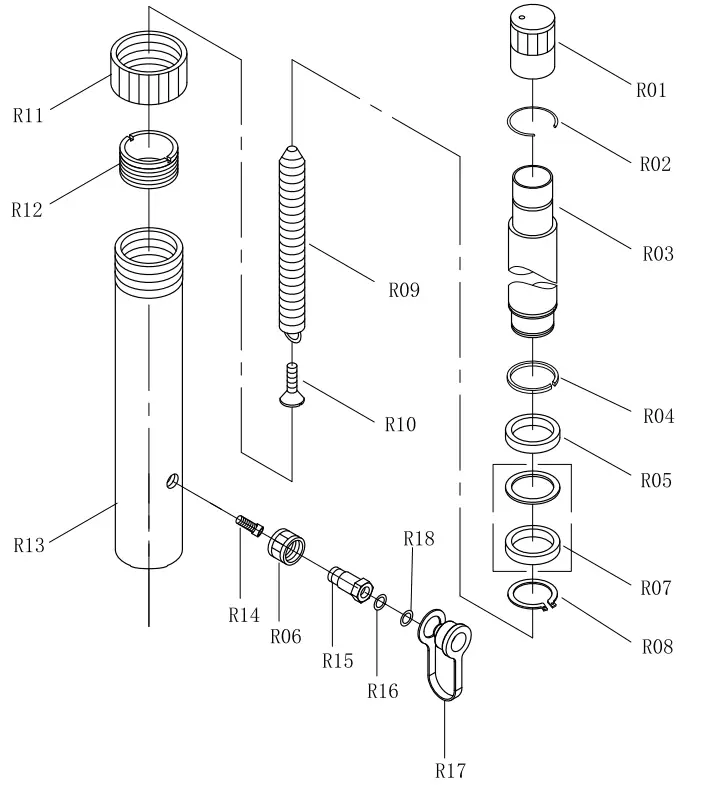

Assembly Diagram – Ram

PITTSBURGH Portable Hydraulic Equipment Kit - Ram

Parts List – Spreader

PartDescriptionQty.
S1Pin1
S2Retaining Ring2
S3Movable Jaw1
S4Spring1
S5Fixed Jaw1
S6Piston1
S7Seal Ring1
S8O Ring1
S9Top Nut1
S10Nut1
S11Connector1
S12O-Ring1
S13Seal Ring1
S14Dust Cap1

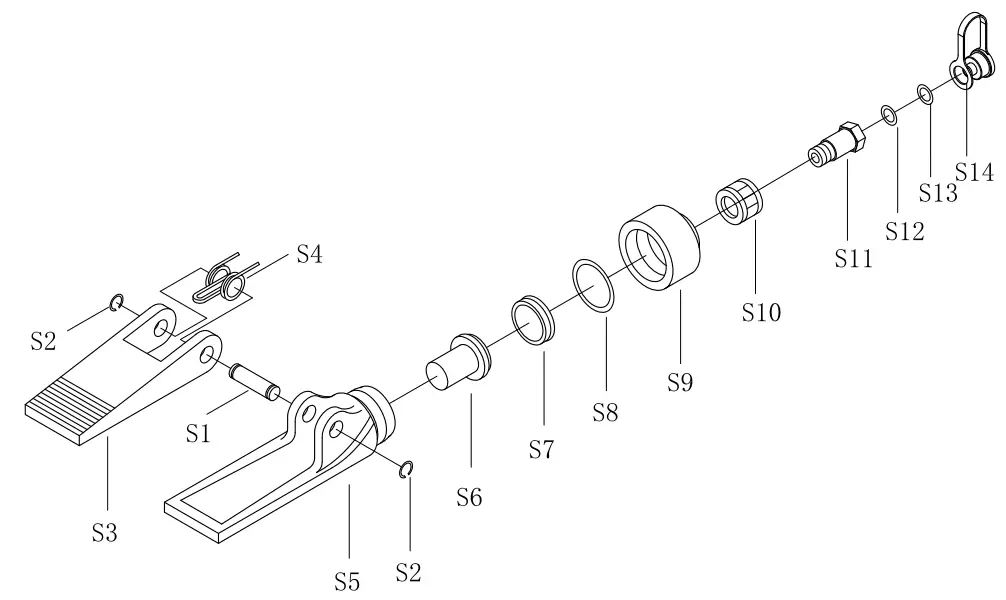

Assembly Diagram – Spreader

PITTSBURGH Portable Hydraulic Equipment Kit - Spreader2

Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. Specify UPC 193175434173 when ordering parts.

Limited 90 Day Warranty

Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date  of purchase. This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear and tear, or to lack of maintenance. We  shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special or consequential damages arising from the use of our product. Some states do not allow the exclusion or limitation of incidental or consequential damages,  so the above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise. If our inspection verifies the defect, we will either  repair or replace the product at our election or we may elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will return repaired products at our expense, but if we determine there is no defect, or that the defect  resulted from causes not within the scope of our warranty, then you must bear the cost of returning the product. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

PITTSBURGH - logo

26677 Agoura Road • Calabasas, CA 91302 • 1-888-866-5797

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.


Related Manuals
