Assembly & Installation Instructions
SHL-P-111
Dear Customer,
Thanks for your purchase.
If you have any problem about the product, please send an email to [email protected]. We will try our best to make you completely satisfied.
Best regards,
Customer Service Team
Assembly Steps

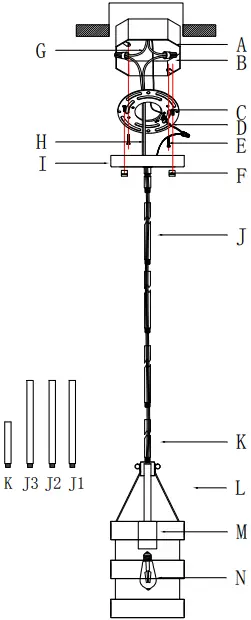

- I.K.J → L
- E.D → A
- G.H → B
- F.I → C
- N →M
↓

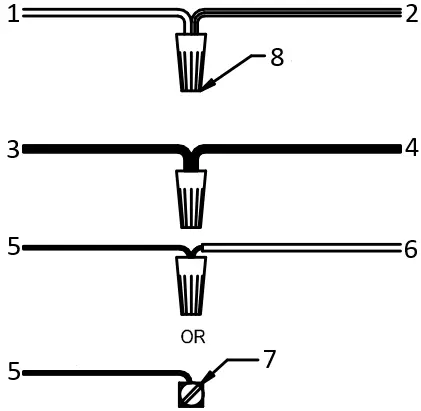

- WHITE SUPPLY WIRE
- WHITE OR IDENTIFIED FIXTURE WIRE
- BLACK SUPPLY WIRE
- PLAIN OR BLACK FIXTURE WIRE
- BARE, OR GREEN GROUND WIRE FROM SUPPLY
- BARE, OR GREEN FIXTURE GROUND WIRE
- GREEN GROUND SCREW
- UL LISTED Wire nuts
Parts included
Code | Part Description | QTY |
A | Junction box | 0 |
B | Wire nuts | 3 |
C | Mounting screws | 2 |
D | Mounting bracket | 1 |
E | Studs | 2 |
F | Ball nuts | 2 |
G | Leading wires | 0 |
H | Wires | 2 |
I | Canopy | 1 |
J | 12″ Tubes | 3 |
K | 6″ Tube | 1 |
L | Frame | 1 |
M | Sockets | 1 |
N | Lighting bulb | 0 |
