Hidealite 7508558 Moon Slim Emergency Light Module Instruction Manual

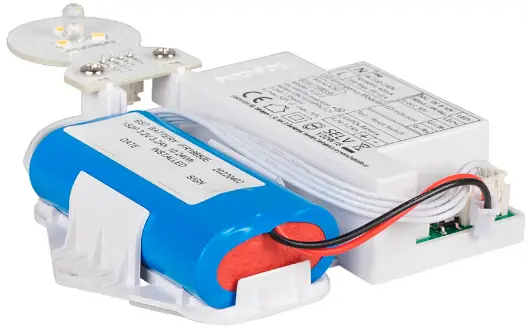

hidealite 7508558 Moon Slim Emergency Light Module

SPECIFICATION

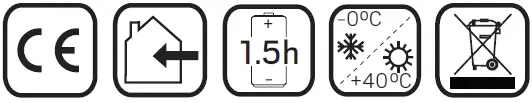

For an explanation of symbols see www.hidealite.se.

SAFETY INSTRUCTIONS

Read these instructions carefully before commencing installation and retain them for future reference. The luminaire should be installed by a licensed electrician and in accordance with local regulations. Make sure that the power is off before installation or maintenance.

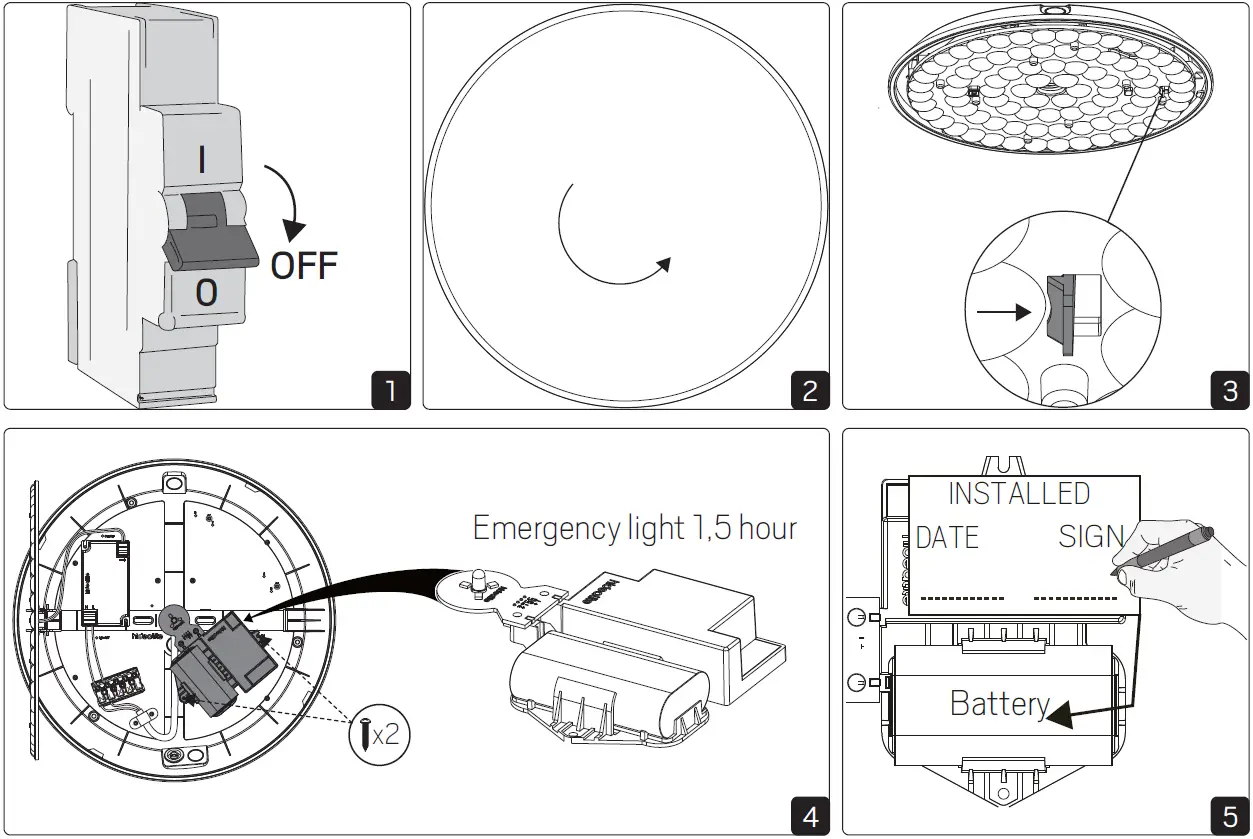

Installation

Suggestion

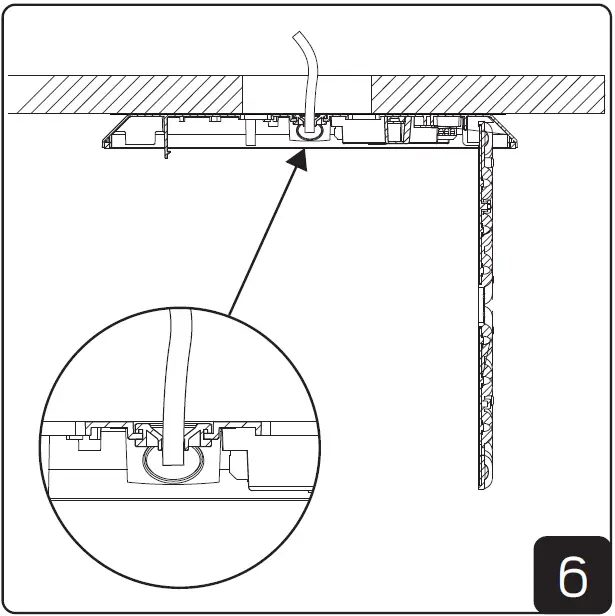

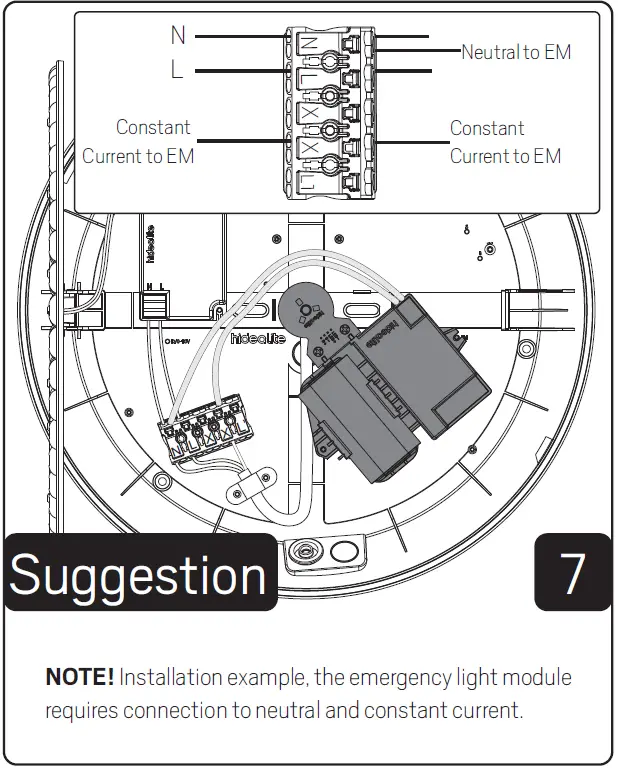

NOTE! For installation example, the emergency light module requires connection to neutral and constant current.

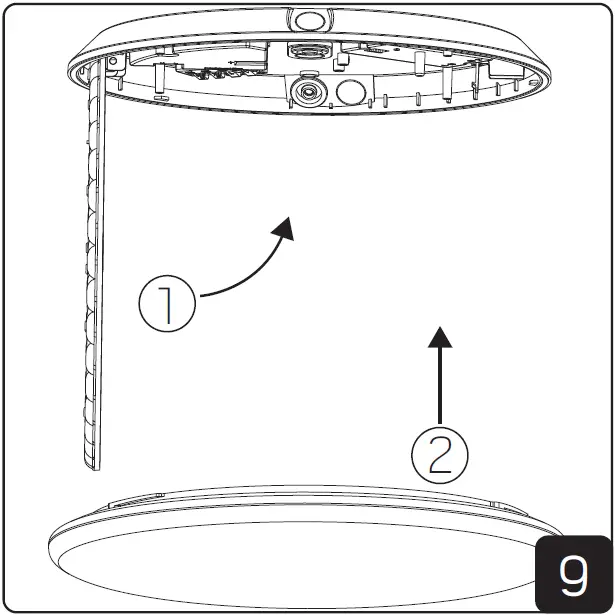

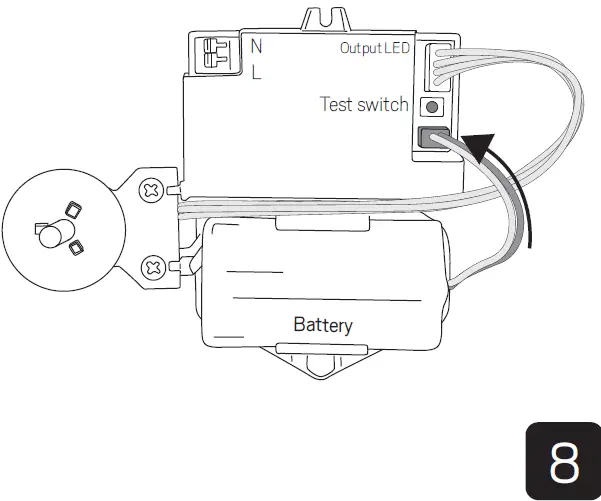

Connect battery

When voltage is applied – the emergency light module starts self-test.

Flashing green light:
The battery is charging/in normal operation.

Permanent green light:
Battery fully charged/normal operation.

Troubleshooting

Flashing red light

1. Check the connection cable between the battery and the module.

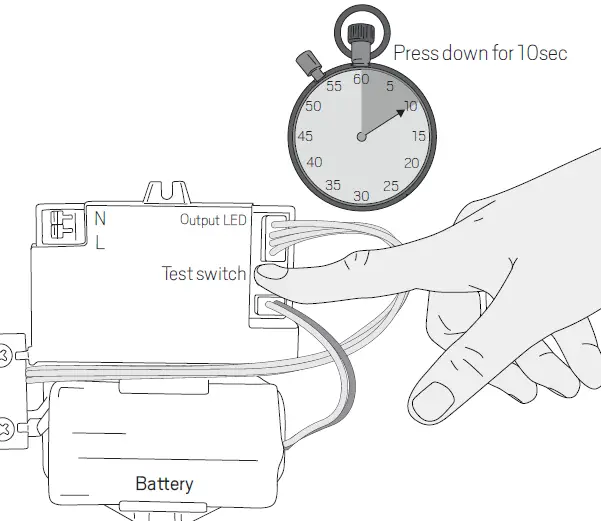

2. Press and hold the test button for 10sec.
3. The emergency light module resets and starts the self-test.

Flashing/Permanent green:
Normal operation on module and battery

Flashing red light:
Battery not connected/Battery defective. Replace battery – Press and hold the test button for 10sec.

Solid red light:
Defective emergency light module. Replace the emergency light module and battery.

The emergency light module performs an automatic self-test every 30 and 180 days.

Manual self-test:

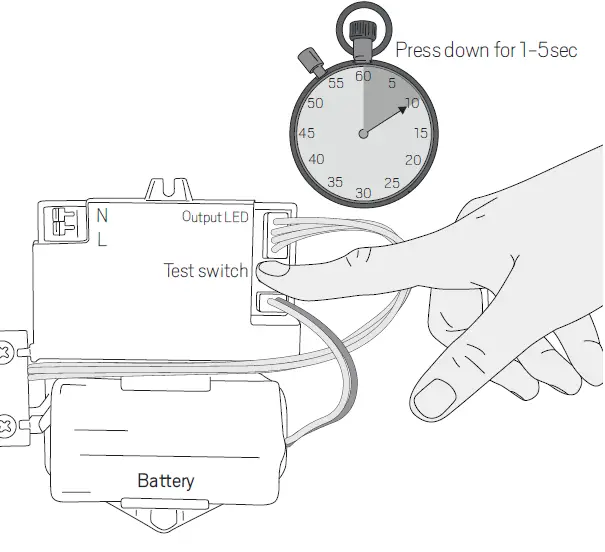

1. Press and hold the test button for 1-5sec.
2. LED of the emergency light module lights up.

Every 30 days – automatic self-test
Every 180 days – The LED of the emergency light module lights up for 1,5 hours for a complete battery and module test.
