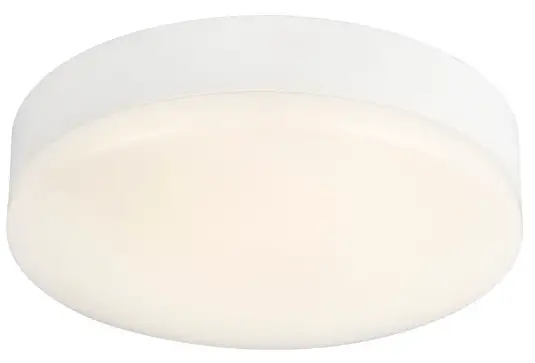

hidealite Moon Slim IP44 2300lm

For explanation of symbols see www.hidealite.se

This product contains a light source of energy efficiency class D to Regulation (EU) No 2019/2015.

Accessories

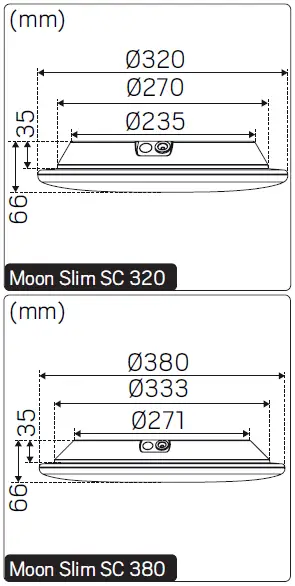

Accessories for Moon Slim SC 320 & 380

SAFETY INSTRUCTIONS

Read these instructions carefully before commencing installation and retain for future reference. The luminaire should be installed by a licensed electrician and in accordance with local regulations. Make sure that the power is off before installation or maintenance.

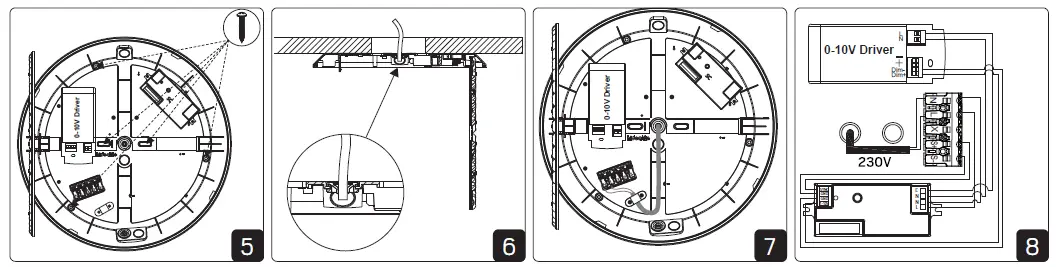

Installation

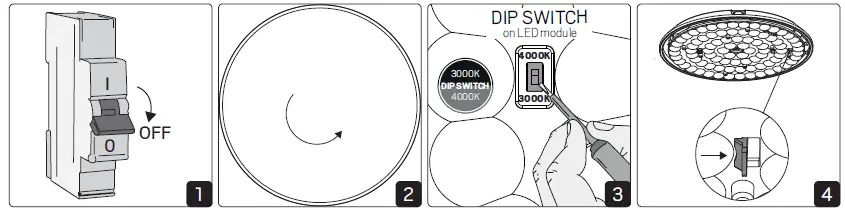

NOTE! Only change when fixture is OFF

Make sure that L and N are correctly connected, otherwise the sensor will break

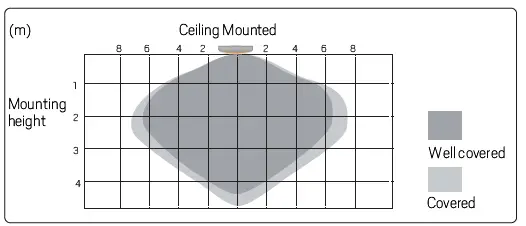

Range – Ceiling mounting pattern (Unit: m)
Highest mounting height is 4m

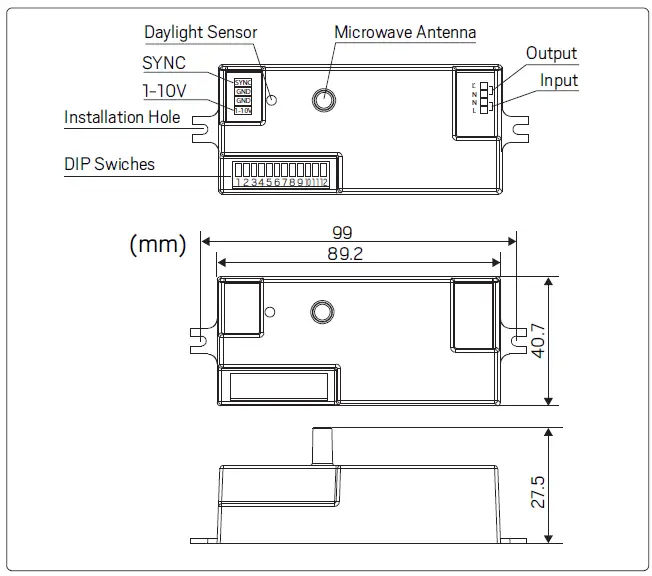

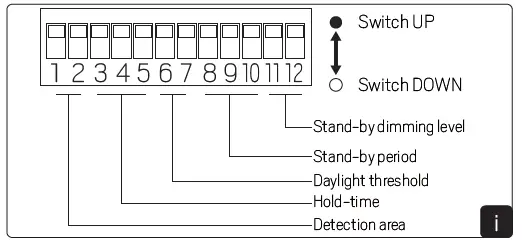

Detection area – Detection area can be reduced by selecting the combination on the DIP switches to fit precisely each application .

Hold Time – Refers to the time period the lamp remains at 100% illumination after no motion detected.

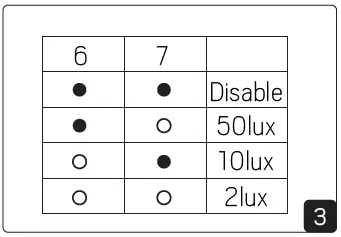

Daylight sensor – The sensor can be set to only allow the lamp to illuminate below a defined ambient brightness threshold.
When set to Disable mode, the daylight sensor will switch on the lamp when motion is detected regardless of ambient light level.
50lux: twilight operation, 10lux, 2lux: darkness operation only. Note that daylight sensor is active only when lamp totally switches off.

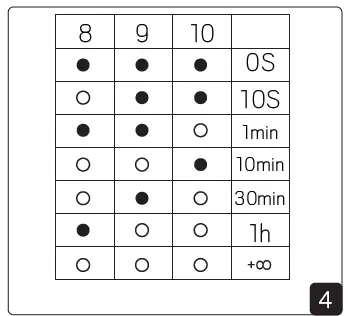

Stand-by period – Refers to the time period the lamp remains at a low light level before it completely switches off in the long absence of people. When set to “+ ” mode, the low light is maintained until motion is detected.

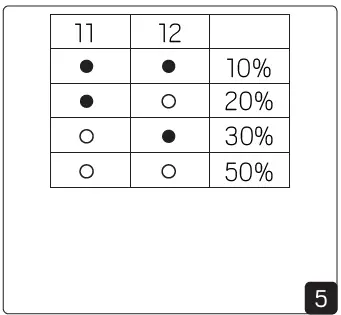

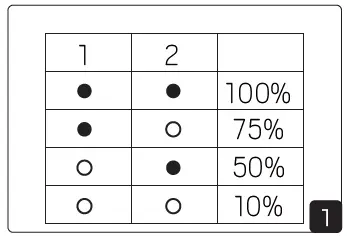

Stand-by dimming level – The low light level you would like to have after the hold time in the long absence of people.

With insufficient ambient light, the sensor switches on the lamp when motion is detected.

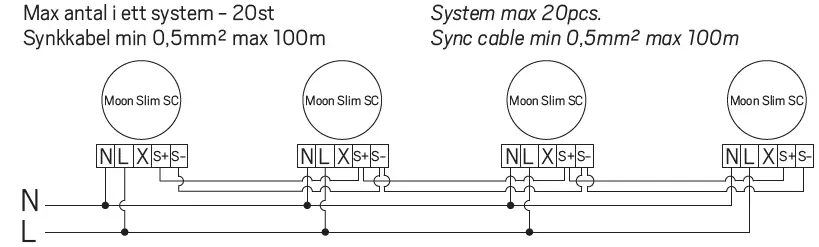

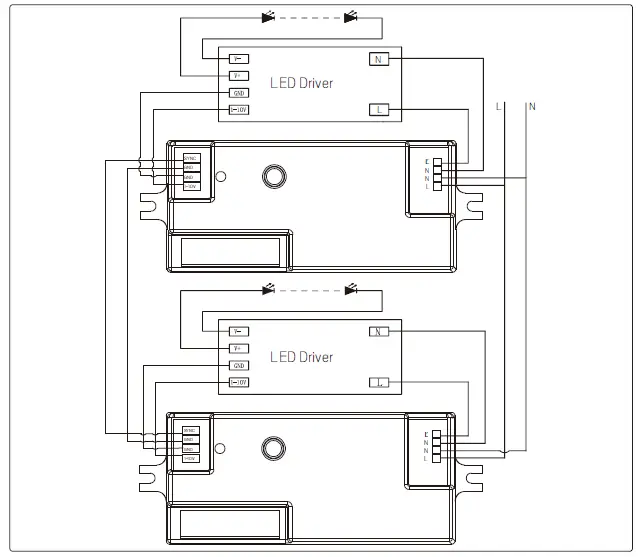

DIAGRAM

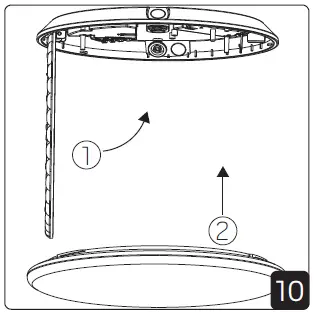

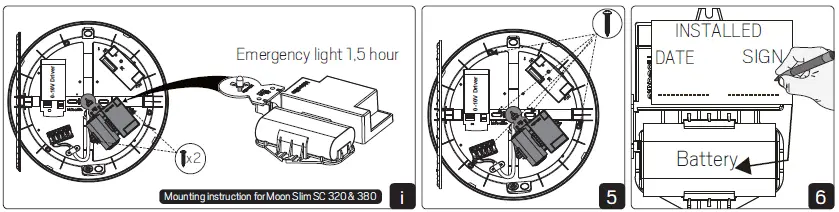

Installation Moon Slim SC EM 320 & 380 and 320 & 380 with EM accessories

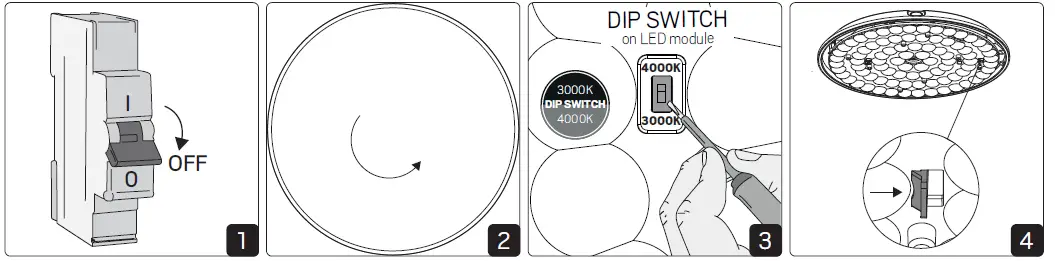

NOTE! Only change when fixture is OFF

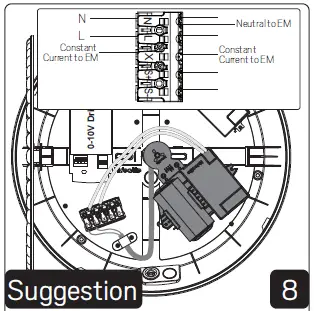

Suggestion

NOTE! Installation example, the emergency light module requires connection to neutral and constant current.

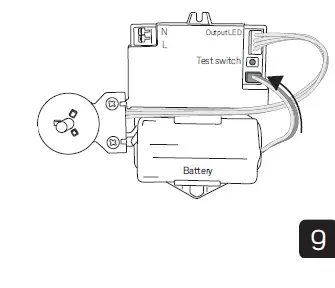

Connect battery
When voltage is applied – the emergency light module starts self-test.

Flashing green light:
Battery is charging/normal operation

Permanent green light:
Battery fully charged/normal operation

Emergency light module performs automatic self-test every 30 and 180 days.

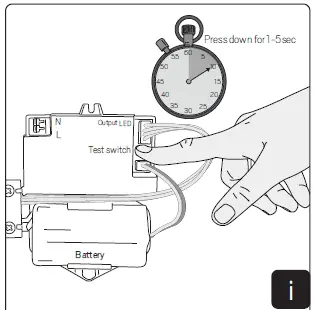

Manual self test:

1. Press and hold the test button for 1-5sec.
2. LED of the emergency light module lights up.
   Every 30 days – automatic self-test
   Every 180 days – The LED of the emergency light module lights up for 1,5 hours for a complete battery and module test.

Troubleshooting

Flashing red light

1. Check the connection cable between the battery and the module.
2. Press and hold the test button for 10sec.
3. The emergency light module resets and starts self-test.

Flashing / Permanent green:
Normal operation on module and battery

Flashing red light:
Battery not connected/Battery defective.

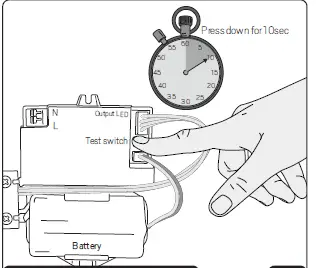

Replace battery – Press and hold the test button for 10sec.

Solid red light:
Defective emergency light module
Replace emergency light module and battery

Replaceable (LED only) light source by a professional

Replaceable control gear by a professional
