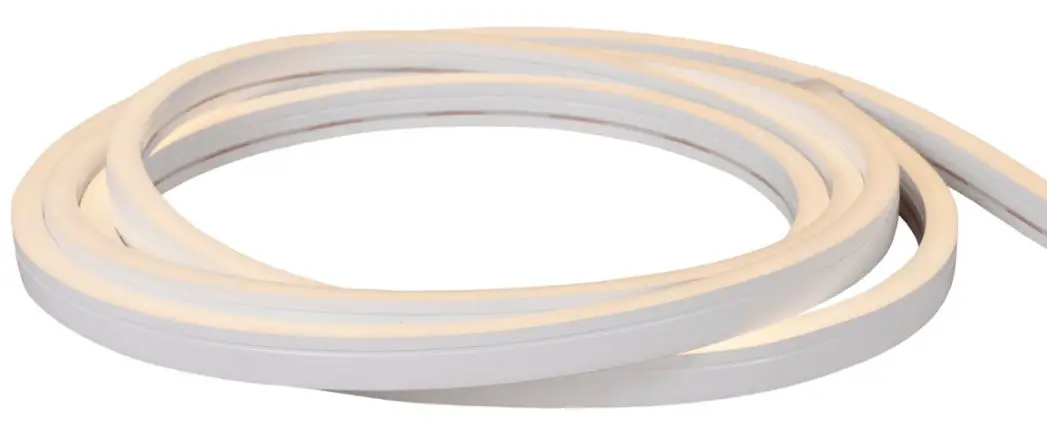

hidealite 7507403 LEDstrip 24V Neon Side IP67

OVERVIEW

E-nr	Snro	El.nr	GTIN	Name	Effect	Max. length	LEDs/m
7507403	4143724	3207001	7392971141671	LEDstrip 24V Neon Side IP67 3000K 5m	50W	17m	120LEDs/m
7507404	4143725	3207002	7392971141688	LEDstrip 24V Neon Side IP67 3000K lpm	10W	17m	120LEDs/m
7507405	4143726	3207003	7392971141695	LEDstrip 24V Neon Side IP67 4000K lpm	10W	17m	120LEDs/m
7507406	4143727	3207004	7392971141701	LEDstrip 24V Neon Side IP67 RGB 5m	55W	13m	96LEDs/m
7507407	4143728	3207005	7392971141718	LEDstrip 24V Neon Side IP67 RGB lpm	11W	13m	96LEDs/m

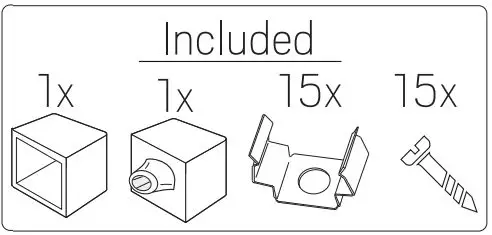

Accessories

E-nr	Snro	El.nr	GTIN	Name
7507414	4143735	3207012	7392971141787	Profil Neon Side IP67 2m*
7507416	4143737	3207014	7392971141800	Clips Neon Side IP67 15pcs
7507419	4143740	3207017	7392971141831	Connection kit LEDstrip Neon Side IP67 Single Colour
7507420	4143741	3207018	7392971141848	Connection kit LEDstrip Neon Side IP67 RGB

SAFETY INSTRUCTIONS

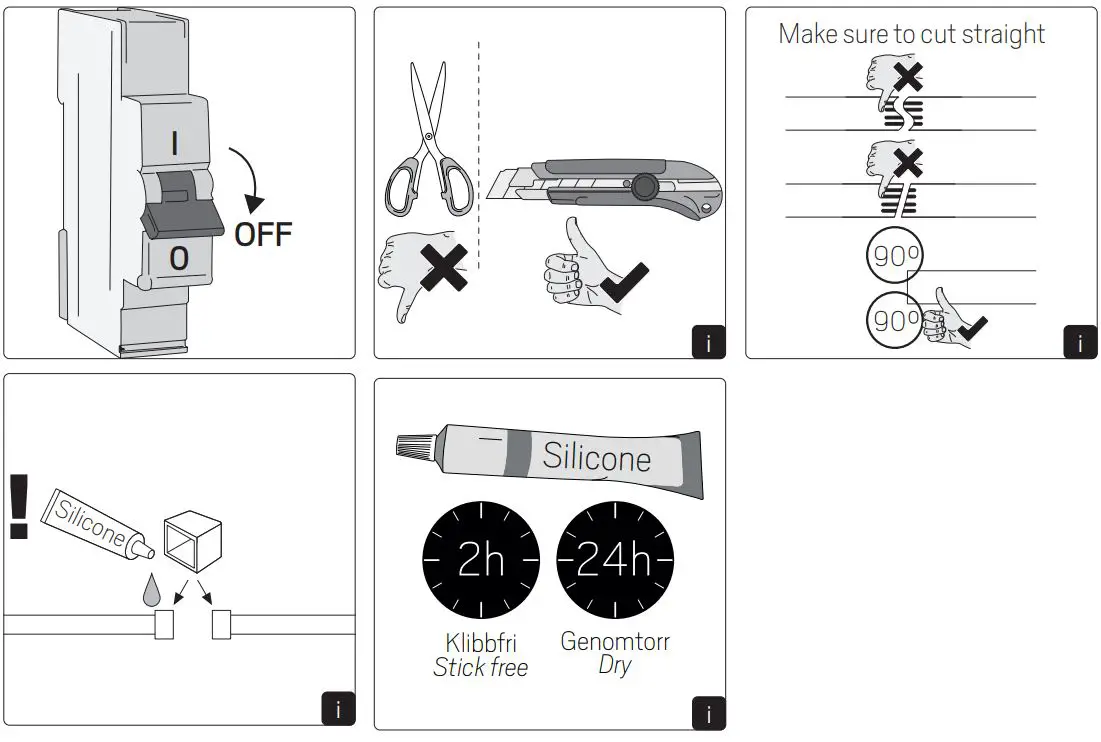

Read these instructions carefully before commencing installation and retain for future reference. The luminaire should be installed by a licensed electrician and in accordance with local regulations. Make sure that the power is off before installation or maintenance.
