Linea-HE 19.2W
LINEAR LED
Product code
ML06
Instruction Manual
Linea-HE 19.2W LED Strips and Bendable Neons
Notes
- This strip requires constant voltage with 24V DC safety input.
- Do not connect the strip (low voltage 12V, 24V) directly to 240V.
- Maximum running length of the strip without voltage drop is 5m. For longer lengths contact Mondo lux.
- Make sure when one end of the strip is connected to the driver, the other end is disconnected. Otherwise, there is a risk of damaging the strips.
- Driver power calculation: (Length of LED) x (Power) x (1.1) = Minimum power requirement of the driver.
- Do not attempt to touch the LED chips. The static electricity of the fingers might damage them.
- Cut through the scissors symbol on the LED strip, for desired lengths.
- LED strip comes with 3m adhesive tape, making the installation easy on any surface.
- Available as a 5m continuous roll, in aluminum foil bag.
- Heavy items must not be placed on the packaging box.
- If you have any questions about this product, please contact Mondo lux.
Handling Instructions

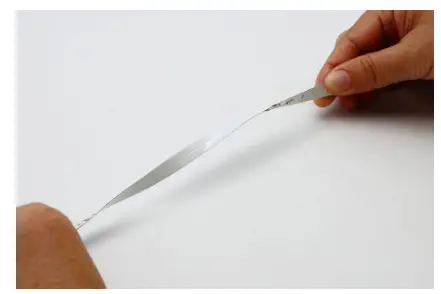

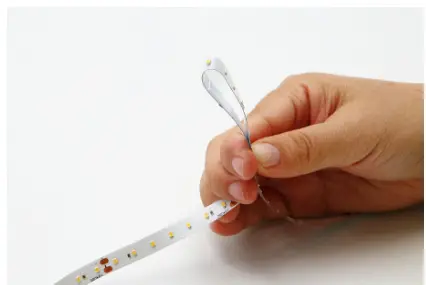

 Do not twist the LED strip. |  Do not bend the LED strip beyond 90° curvature and 120mm radian. |

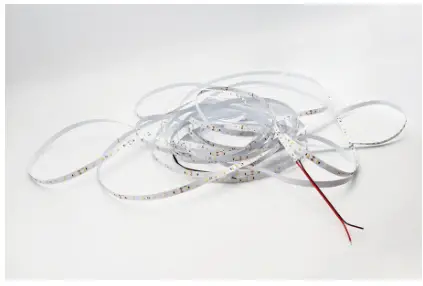

 Do not remove LED strip completely from the roll, before installation. |  While cutting the LED strip, do not bend at any point other thanthe scissors symbol. Make sure the curvature is maintained below 120mm and the LED strip is facing upwards. |
