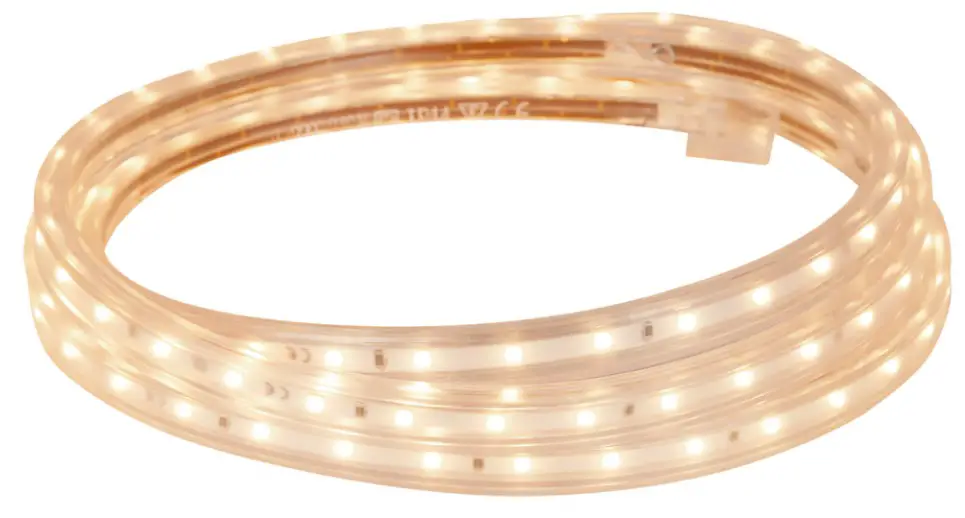

hidealite LEDstrip HV FDIM Instructions
| E-nr | Snro | El.nr | GTIN | LED color | Dimensions roll/mm | Output max/m | Max. length |
| 7503612 | 4203064 | 3226996 | 7392971131009 | 2100K | 10 000x12x7mm | 13,5W/m | 50m |
| 7503613 | 4203065 | 3226997 | 7392971131016 | 2100K | rmx12x7mm | 13,5W/m | 50m |
| 7503614 | 4203066 | 3226998 | 7392971131023 | 3000K | 10 000x12x7mm | 13,5W/m | 50m |
| 7503615 | 4203067 | 3226999 | 7392971131 | 3000K | rmx12x7mm | 13,5W/m | 50m |
SAFETY INSTRUCTIONS

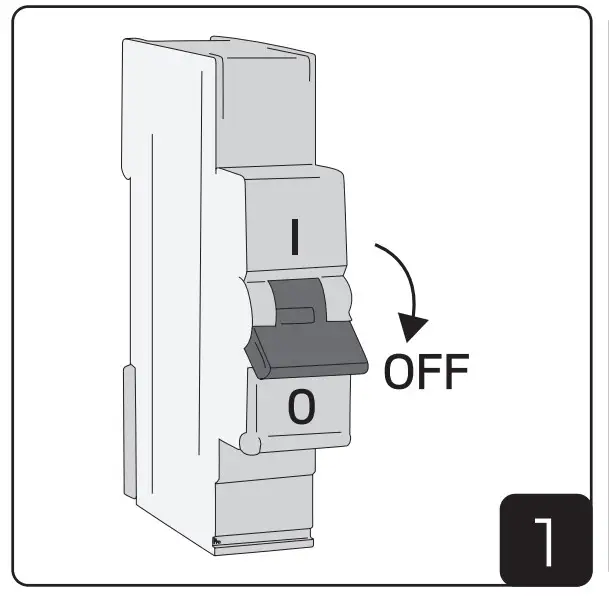

Read these instructions carefully before commencing installation and retain for future reference. The luminaire should be installed by a licensed electrician and in accordance with local regulations. Make sure that the power is off before installation or maintenance. List of recommended dimmers can be found at www.hidealite.uk
For explanation of symbols see www.hidealite.se

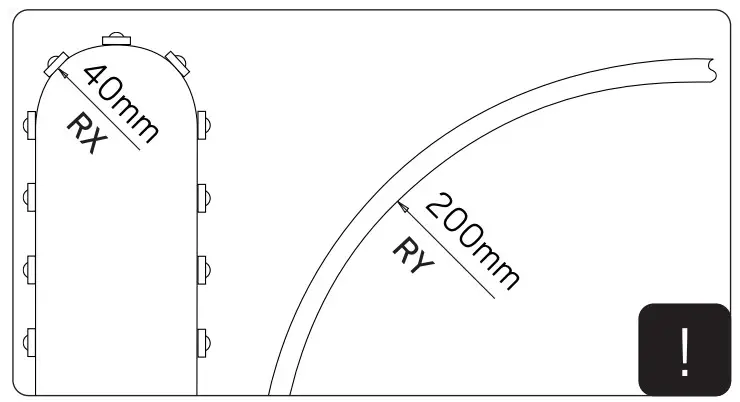

Maximum bending radius
Accessories

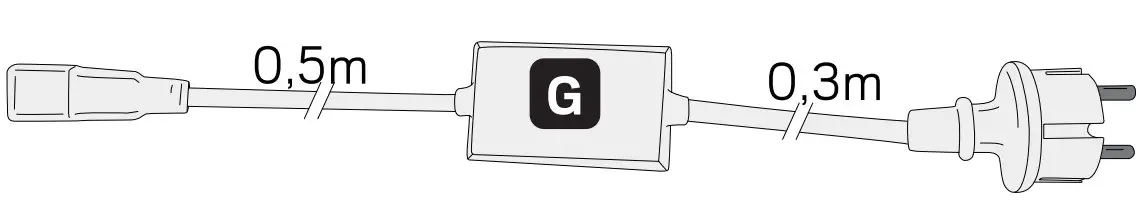

Connection kit HV IP44 230V, Connection kit HV FDIM IP44 230V
E-nr: 75 021 89, 75 039 15 Snro: 42 894 88, 42 030 19 El.nr: 32 120 55, 32 269 91

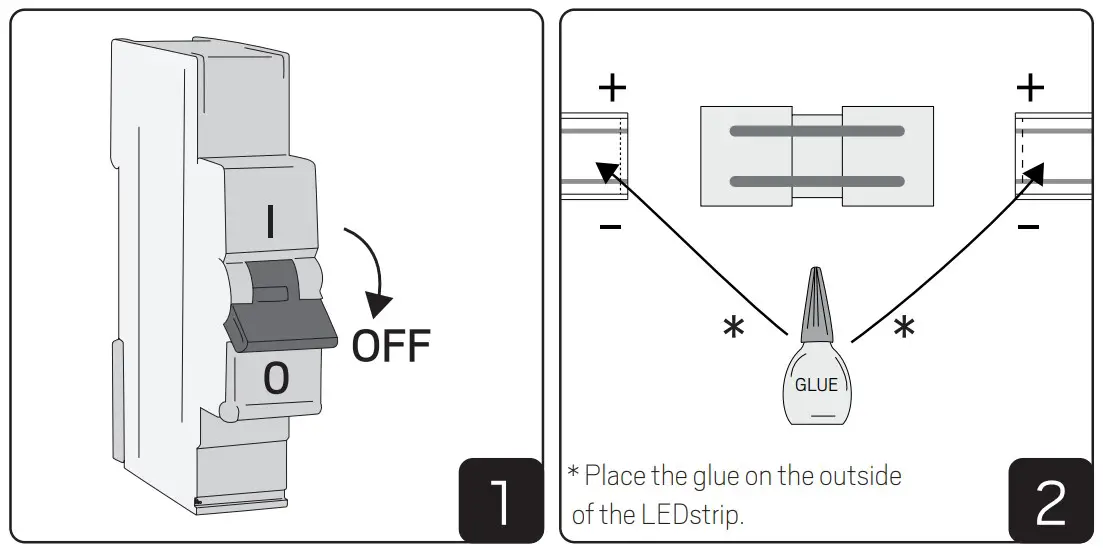

Joint HV IP44 230V
E-nr: 75 021 86
Snro: 42 894 85
El.nr: 32 120 52

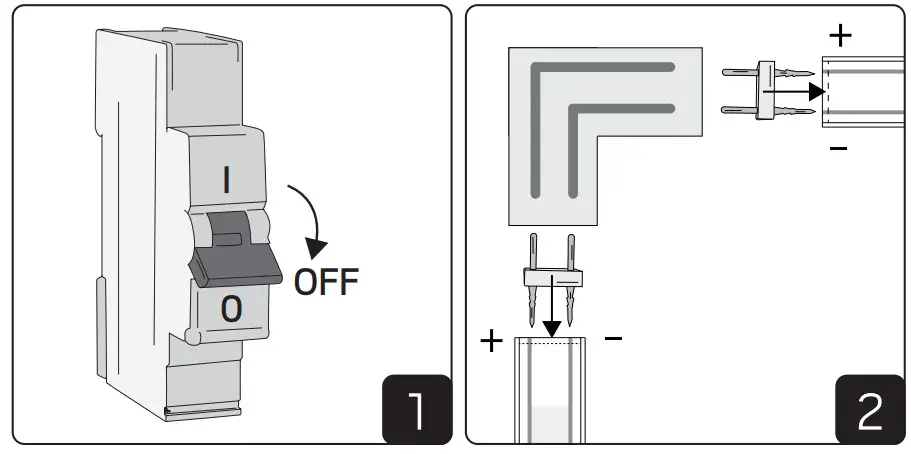

Joint 90° HV IP44 230V
E-nr: 75 021 87
Snro: 42 894 86
El.nr: 32 120 53

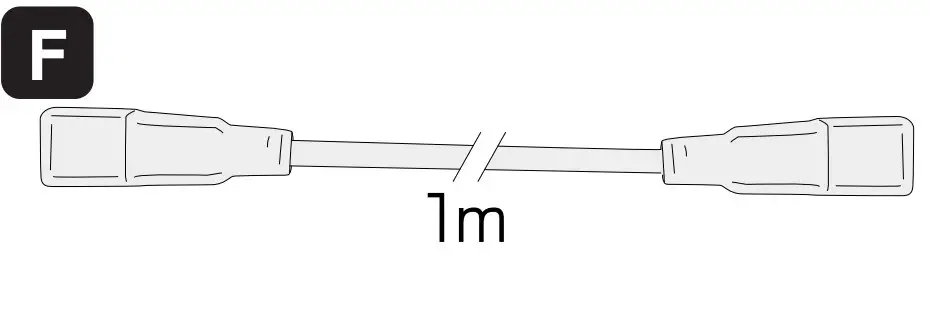

Extensioncable HV IP44 1m
E-nr: 75 021 88 Snro: 42 894 87 El.nr: 32 120 54
End cap HV IP44 230V
E-nr: 75 021 90
Snro: 42 894 89
El.nr: 32 120 56
End cap HV IP44 230V
E-nr: 75 021 90
Snro: 42 894 89
El.nr: 32 120 56

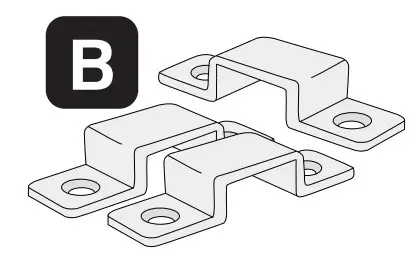

Clips HV IP44 230V
E-nr: 75 021 92
Snro: 42 894 92
El.nr: 32 120 70

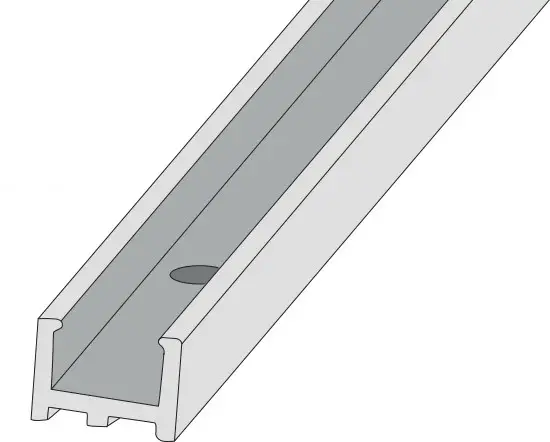

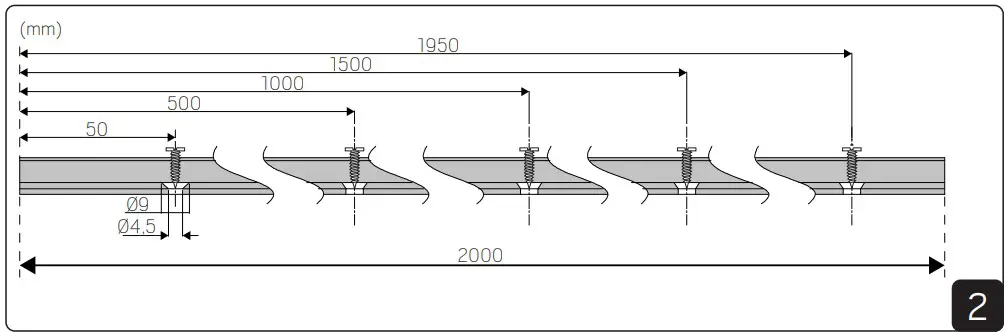

Profil U Plast 15mm 2m
E-nr: 75 036 34
Snro: 42 030 74
El.nr: 32 360 46

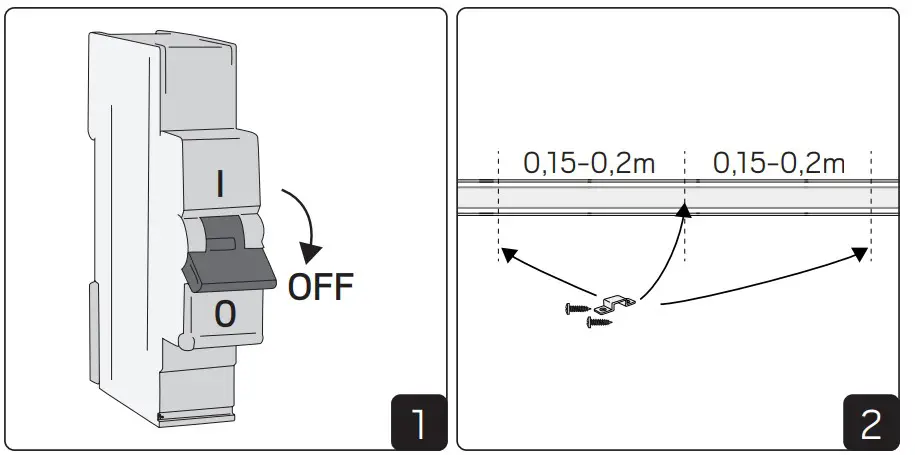

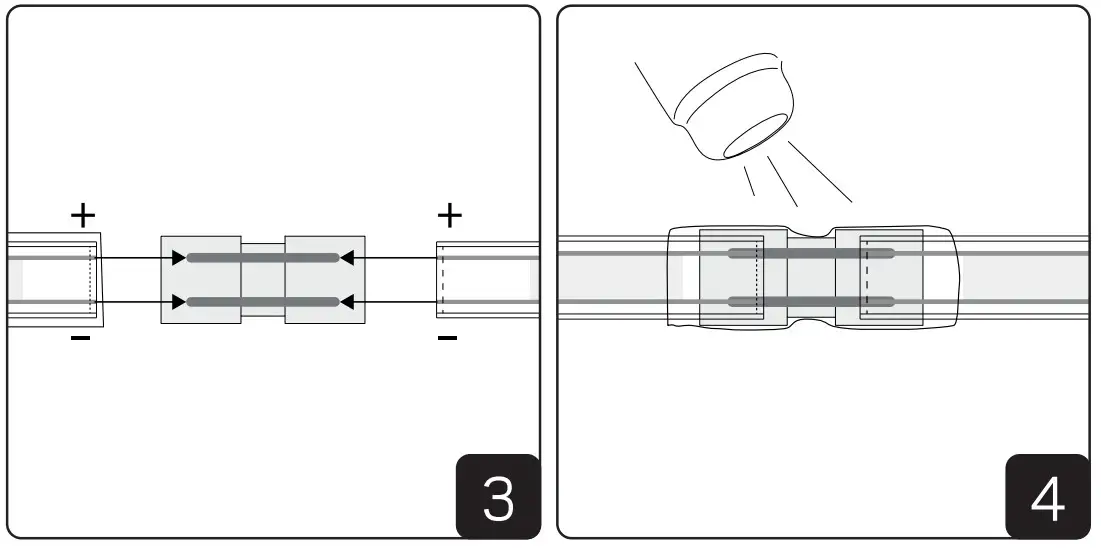

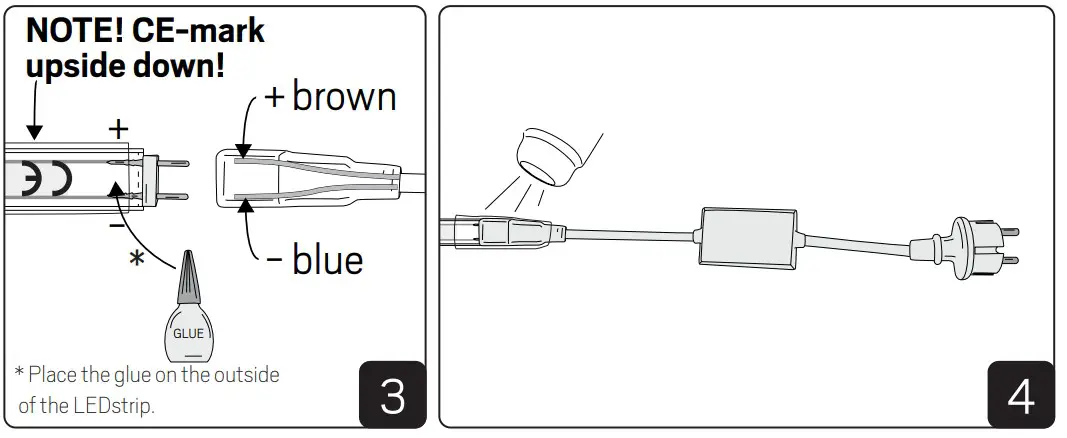

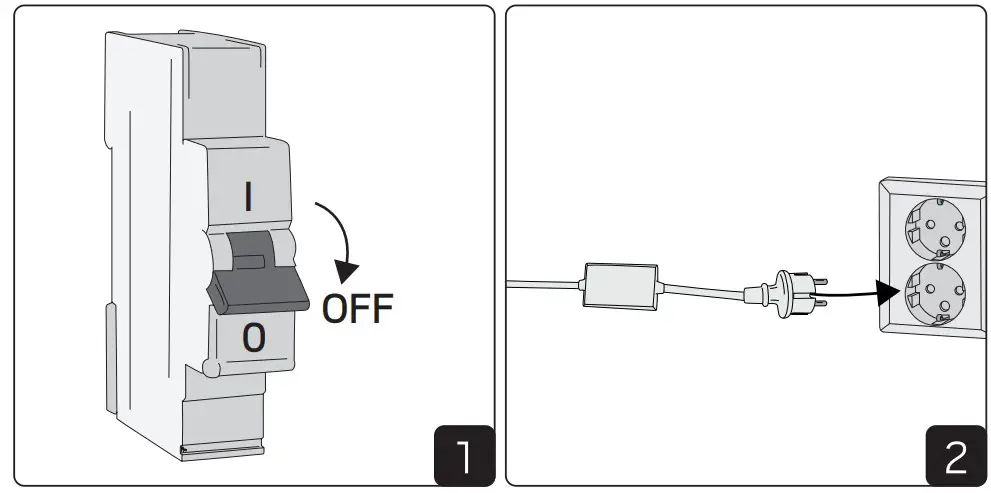

Installation

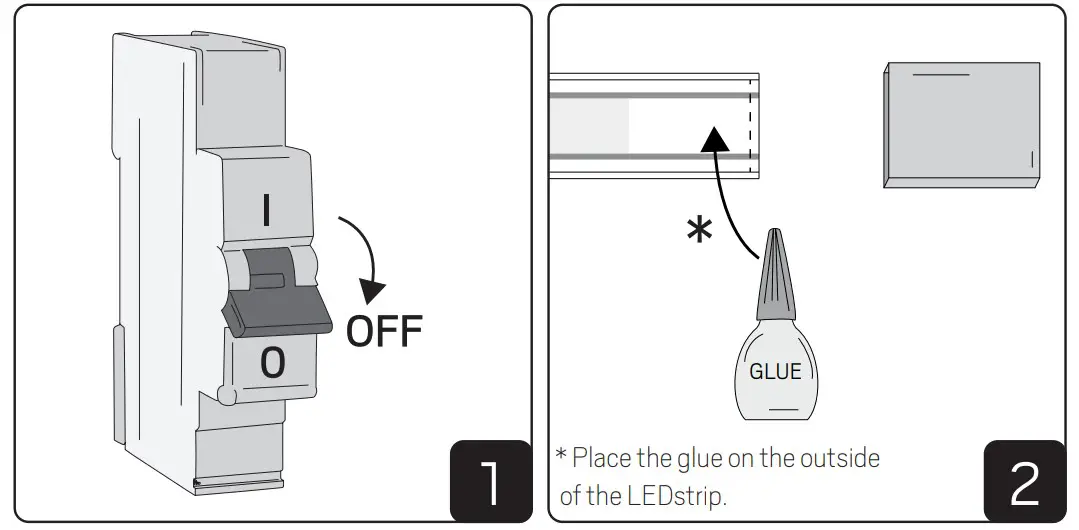

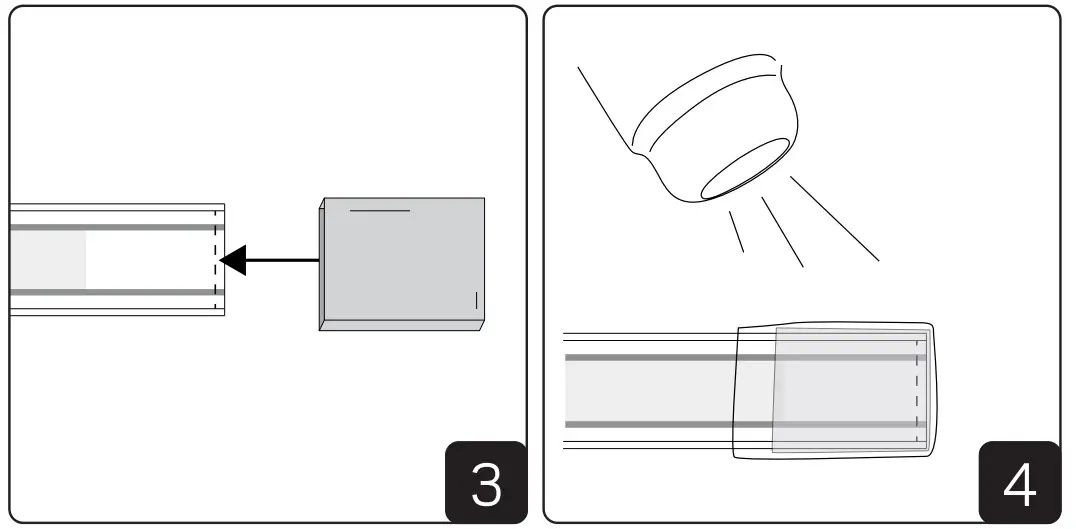

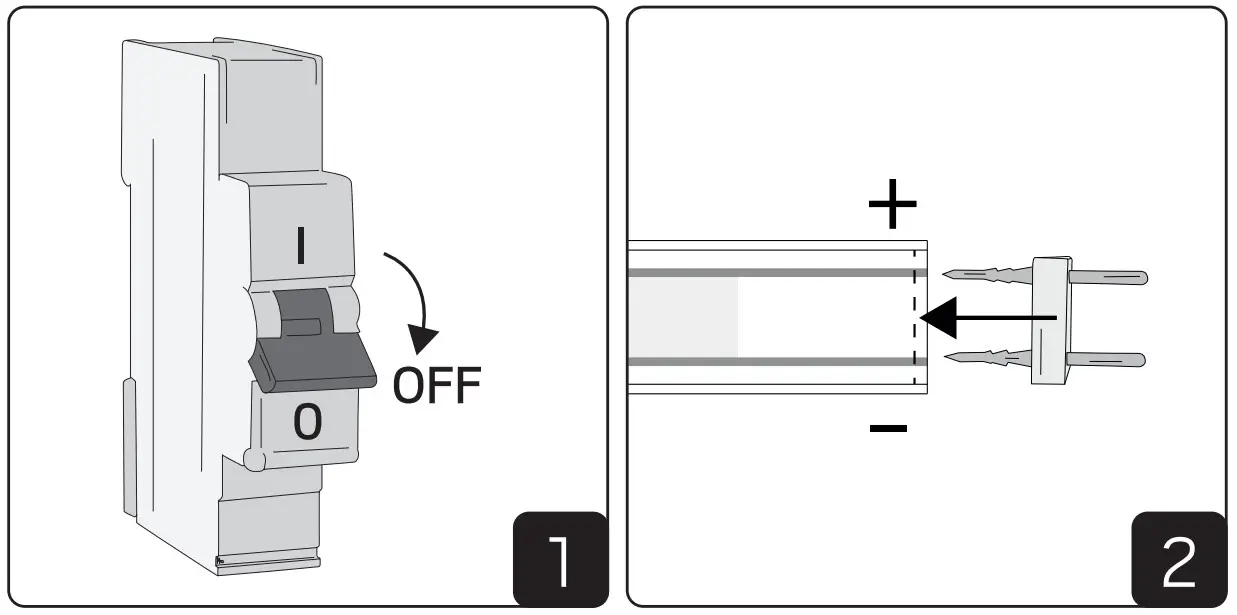

Installation Accessories B

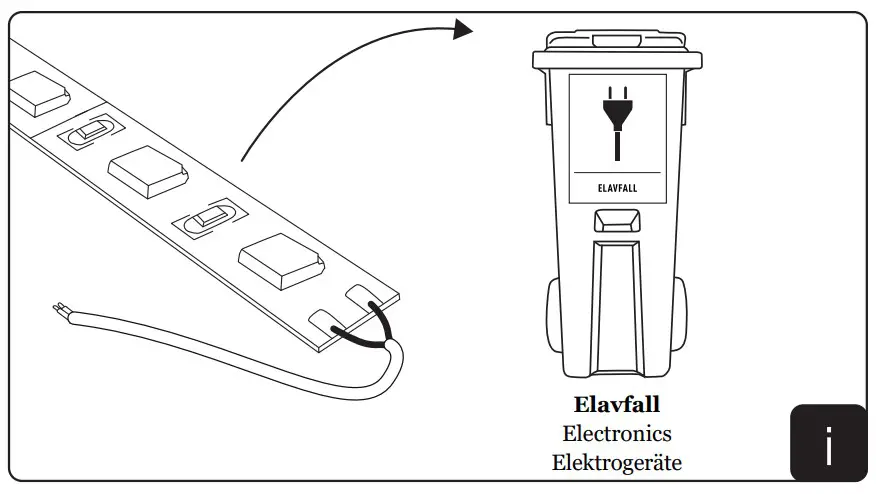

Recycle

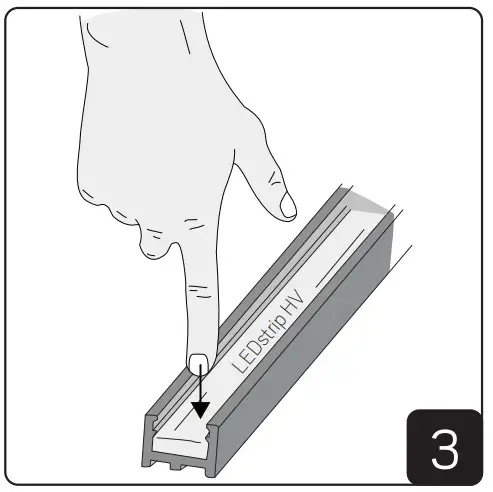

Installation Accessories
