Tran Led Dw-he24/3.0 Strip User Guide

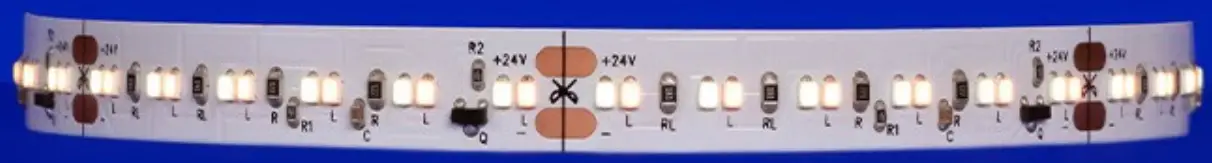

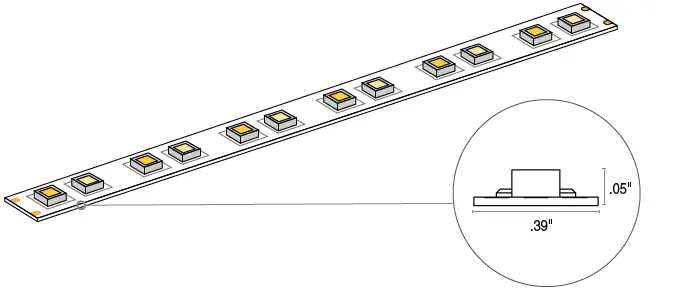

TRAN LED DW-HE24/3.0 Strip

BUILDING A FIXTURE

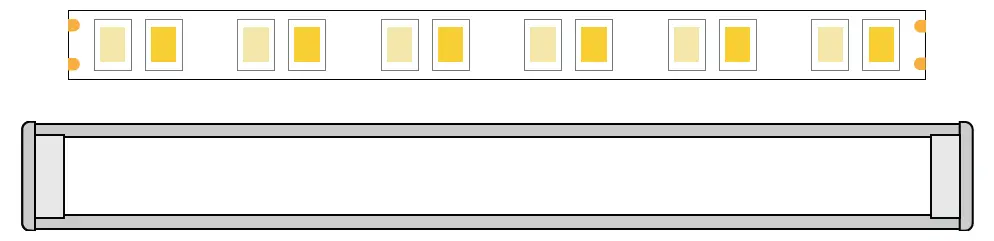

1. Fill out the ordering code on the STRIP cutsheet, choosing “MATCH” for ILLUMINATED LENGTH (in).The strip you just created will now be fitted and installed into an extrusion. The strip and extrusion will not be equal in length; the strip will stop just short of the extrusion’s endcaps.

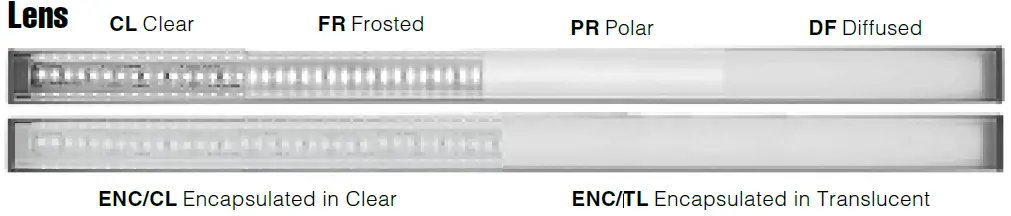

2. Fill out the ordering code for the EXTRUSION cu sheet and choose a non-encapsulated lens (Clear, Frosted, Polar, or Diffused).

RATED

DRY

• 2″ Cutpoints
• Field Cuttable
• Lengths up to 384″

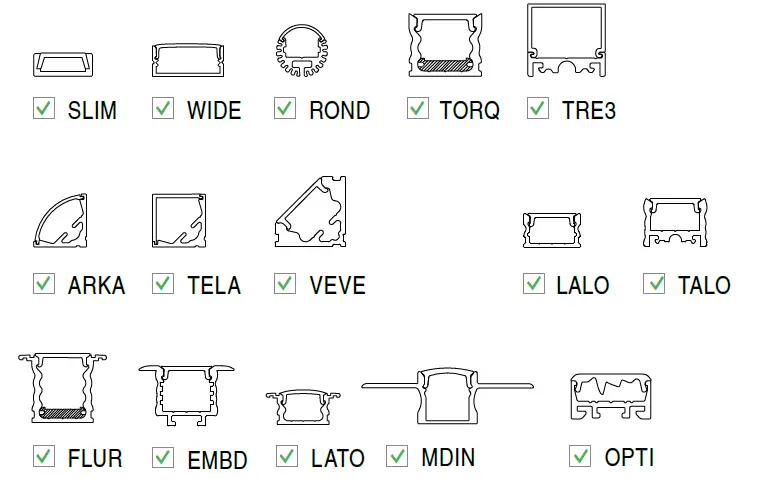

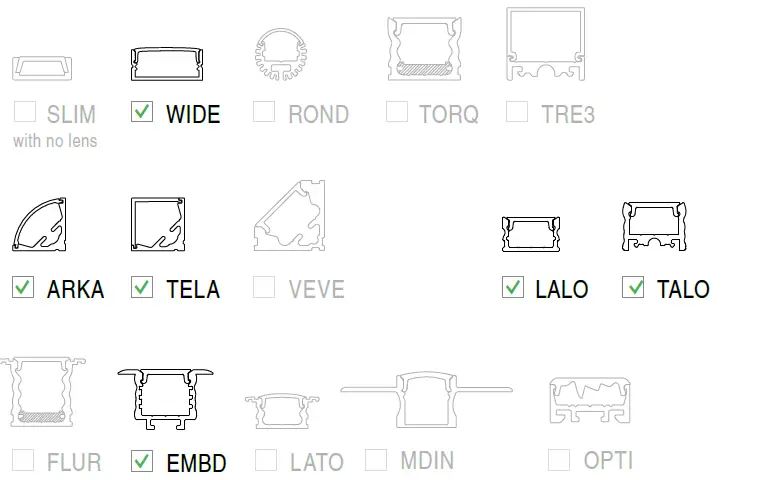

COMPATIBLE EXTRUSIONS

DAMP

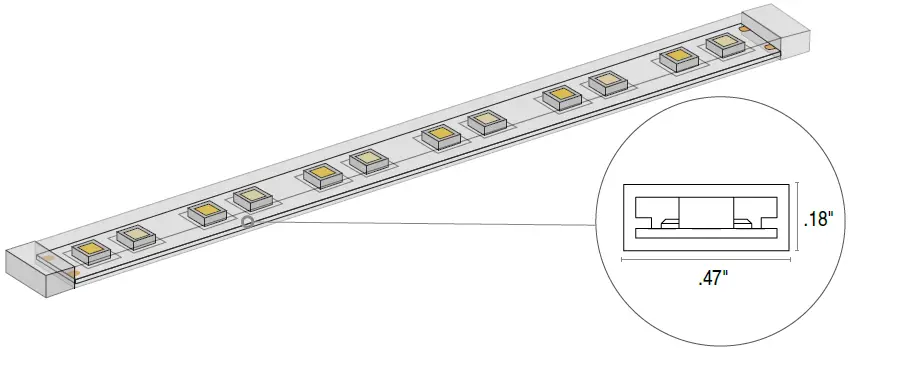

• Encapsulated in Polyurethane
• 2″ Cutpoints
• Lengths up to 180″

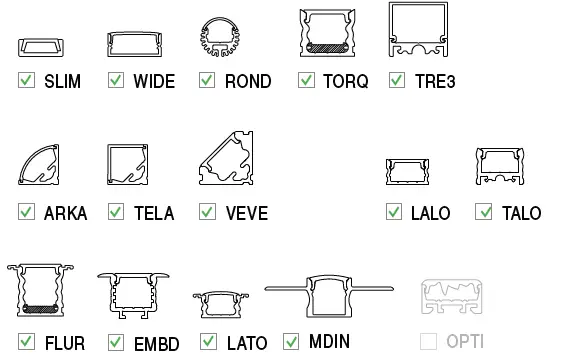

COMPATIBLE EXTRUSIONS

WET

• Enclosed in silicone sleeving
• 2″ Cutpoints
• Lengths up to 360″

COMPATIBLE EXTRUSIONS

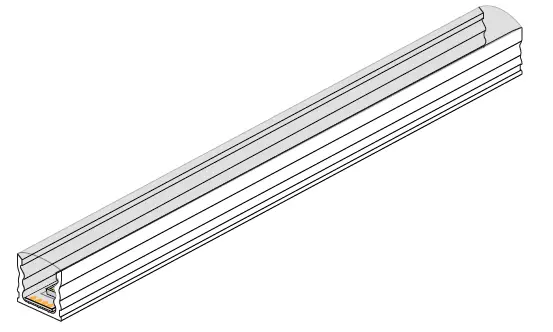

RATED

• ENC
• Encapsulated extrusion in Polyurethane
• Lengths up to 98.43″
• NOT FIELD CUTTABLE

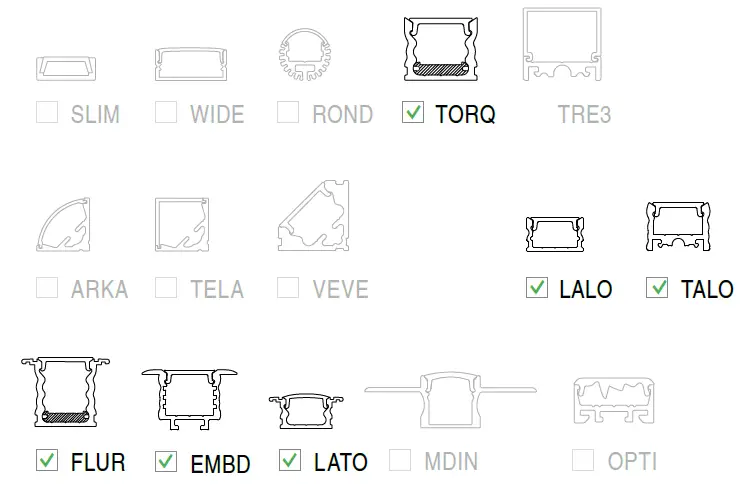

COMPATIBLE EXTRUSIONS:

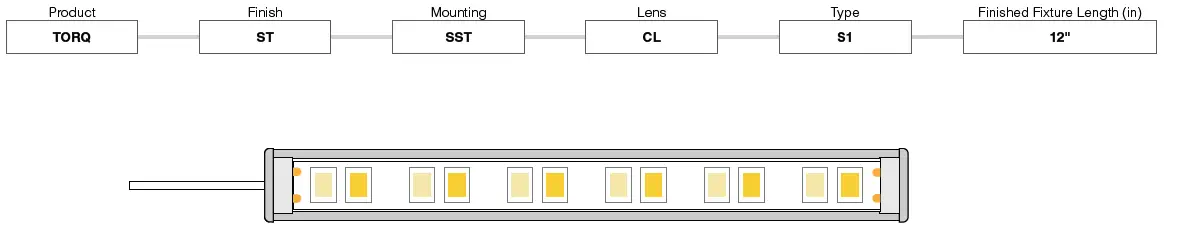

BUILDING AN ENCAPSULATED FIXTURE

1. Fill out the ordering code on the STRIP cutsheet, choosing “MATCH” for ILLUMINATED LENGTH (in).The strip you just created will now be fitted and installed into an extrusion. The strip and extrusion will not be equal in length; the strip will stop just short of the extrusion’s endcaps.
2. Fill out the ordering code for the EXTRUSION cu sheet and choose a non-encapsulated lens (Clear, Frosted, Polar, or Diffused).

CONNECTORS/WIRE

BARE WIRE

• Belden Wire 24 AWG
• Outdoor rated
• 24″ Standard length

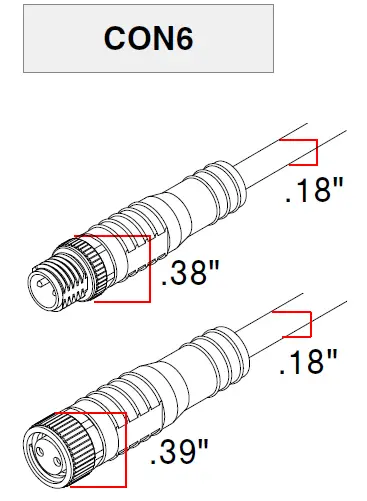

CONNECTOR 6″

• 22 AWG
• Indoor rated
• 6″ Standard length

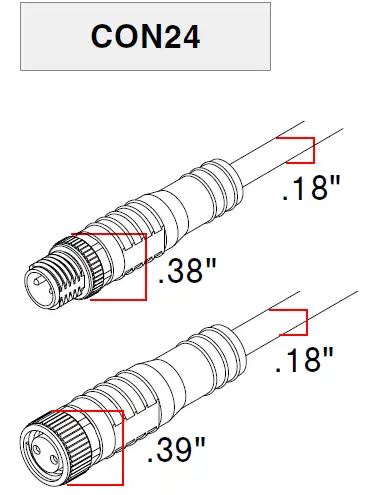

CONNECTOR 24″

• 22 AWG
• Indoor rated
• 24″ Standard length

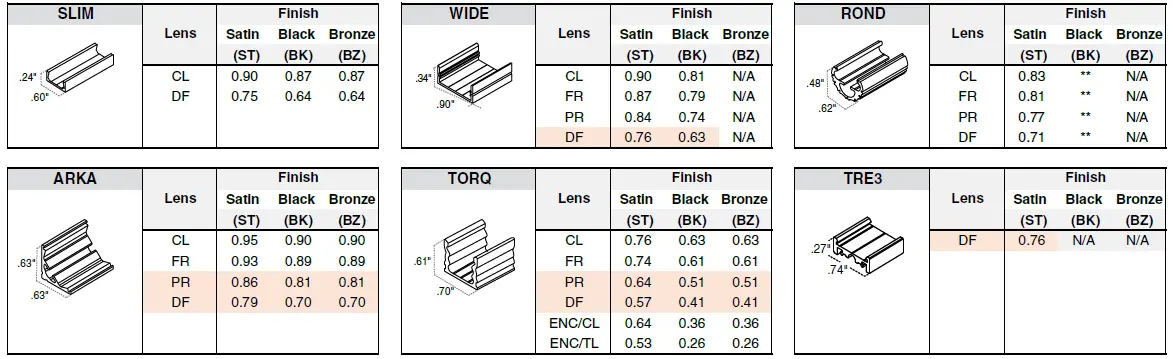

Finish

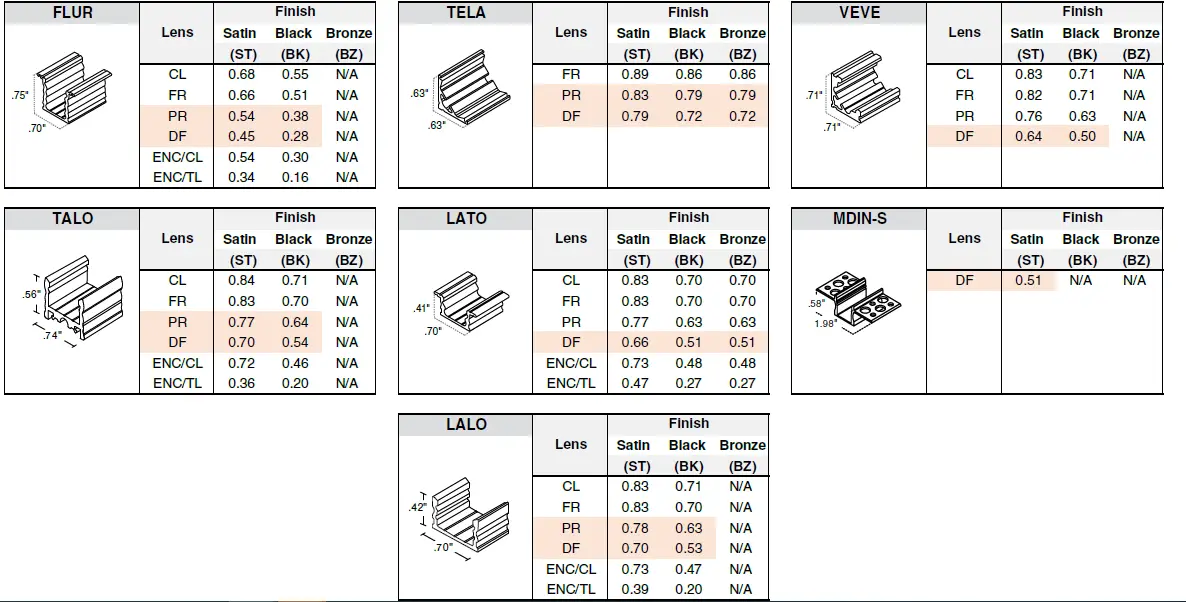

Lumen Multiplier Formula
Bare LED Lumens x Extrusion Finish/Lens Value

Example:
178 lm/ft x 0.61 = 108.58 lm/ft
DW-HE24/3.0 at 3000K x TORQ Extrusion in Black with FR Lens

NOTES: Data subject to change, all data has +/- 5% tolerance

Diode free or near Diode free

• © 2022 Q-Tran Inc. All rights reserved
• 155 Hill St. Milford, CT 06460
• 203-367-8777
• [email protected]
• www.q-tran.com

Specification subject to change. Rev-03-23-22
