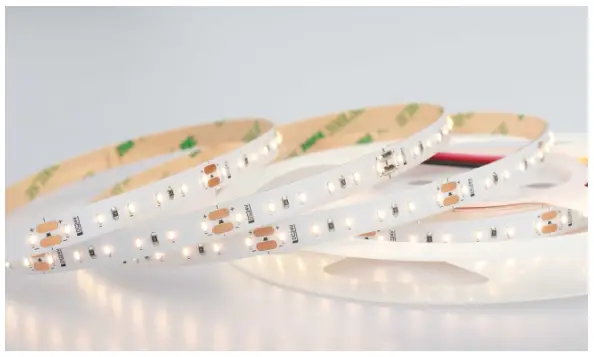

LEDYI 2010smd LED Strip User Manual
Description
12V and 24V for option, flexible LED strip (3LED/step =25mm, 6LED/step =50mm) with 3M adhesive tape on the back for easy installed.912lm/m at 9.6W/m. 120° beam angle. Very good color reproduction with CRI>90 “One Bin Only” within 5 MacAdam guarantees constant color temperature and high light quality at a lifetime of 54,000 hours (L ).Double-layer 70 FPC(2Oz) for good heat dissipation.
Dimensions & Waterproof
Product Specification
| Dimension | 5000x8x1.4mm |
| Chip Type | 2010SMD |
| Chip Density | 120LEDs/m |
| Step LEDs | 3LEDs(12V)/6LEDs(24V |
| Step Length | 25mm/50mm |
| Voltage(V) | DC12V/DC24V |
| Current(A/m) | 0.8A/0.4A |
| Power(W/m) | 9.6W |
| Beam Angle | 120° |
| Operation Temperature | -20°C~50°C |
Product Photometrics
(Data base on IP20 CRI>90)
| CCT (K) | Lumen (lm/m) | Efficacy (lm/w) | CRI | R9 | TM-30-15 | |
| Rf (Fidelity) | Rg (Gamut) | |||||
| 2300-2500K | 660 | 68.75 | 91.47 | 76.83 | 90.81 | 101.82 |
| 2600-2800K | 780 | 81.25 | 91.33 | 78.86 | 92.80 | 100.81 |
| 2900-3100K | 852 | 88.75 | 92.65 | 84.93 | 90.80 | 103.96 |
| 3800-4300K | 840 | 87.50 | 93.42 | 85.95 | 90.95 | 100.00 |
| 5900-6400K | 912 | 95.00 | 92.52 | 90.95 | 91.96 | 101.89 |

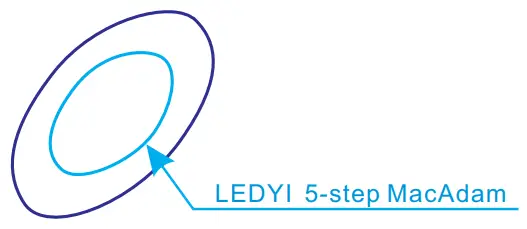

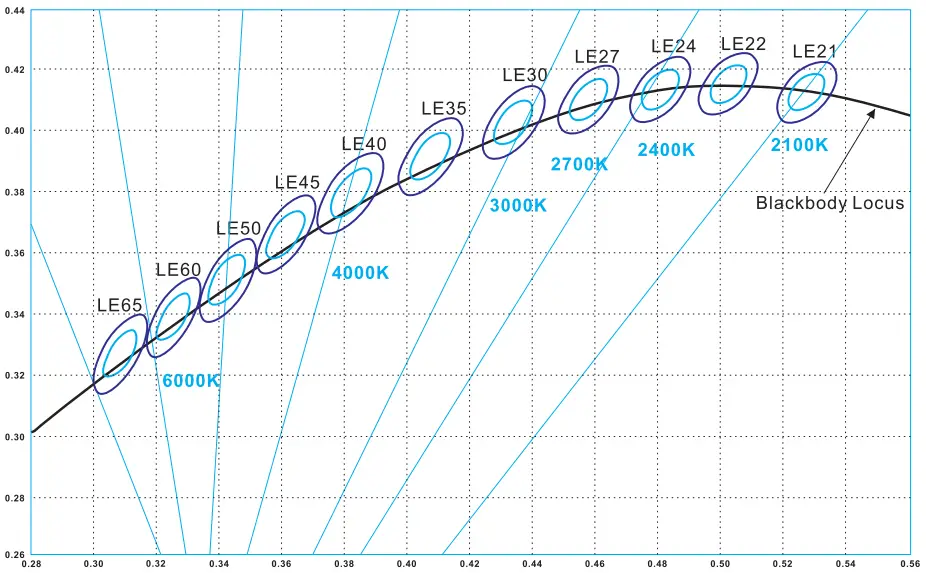

Bining
Graphic Description:
IP20: bare, max. light output and the best color consistency, indoor use.
IP52: Silicone coating, ~5% less output and 3rd best color consistency, indoor use, for damp environments.
IP65: Silicon tube / Heat shrink tube / Extrusion tube / U milky tube + clear cover, ~3% less output and 2nd best color consistency, Indoor use or semi-outdoor use, for raining environments.
IP67: Silicone tube + silicon filling , ~7% less output and 4th best color consistency, outdoor use, max length is 10 meters.
IP67E: Solid silicone extrusion, ~7% less output and 4th best color consistency, outdoor use, max length up to 50 meters.
IP68: PU(Polyurethane),~7% less output and 4th best color consistency, under the water, within 2 meters deep.

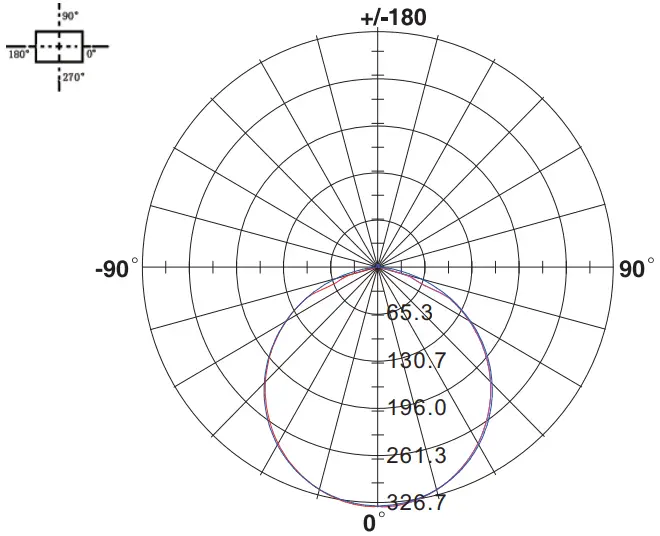

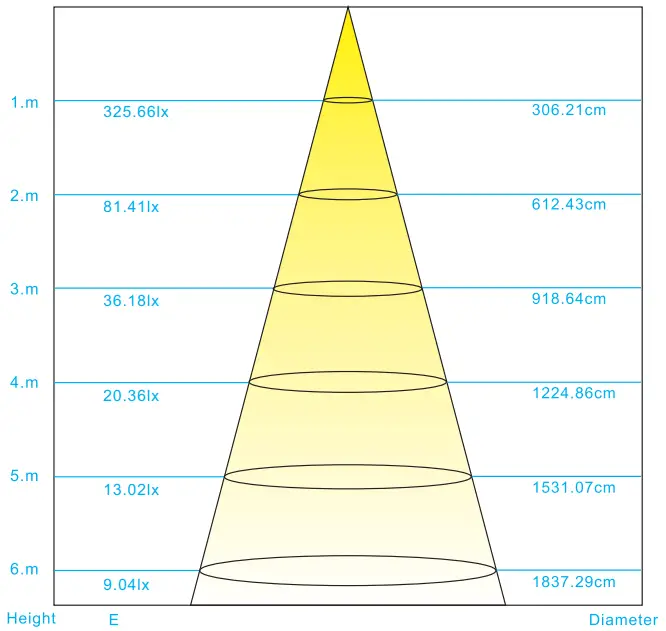

Light Distribution Curve
[Data base on 1m IP20 6000K CRI>90, Unit:cd]
Luminaire
Beam Angle:116.30°

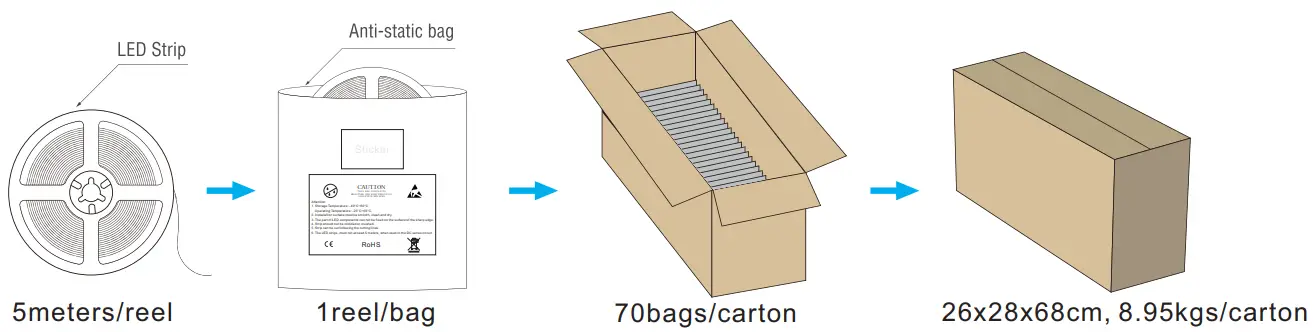

Packing Information
(Data base on IP20)
