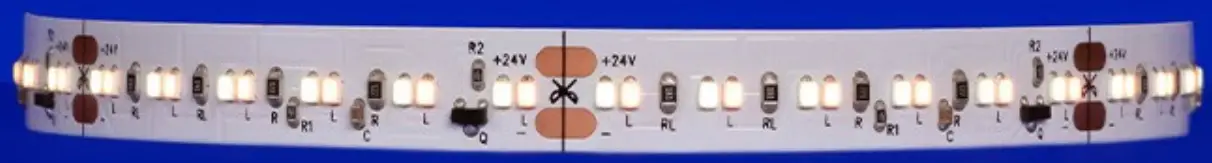

TRAN LED WD24/6.0 Strip

BUILDING A FIXTURE

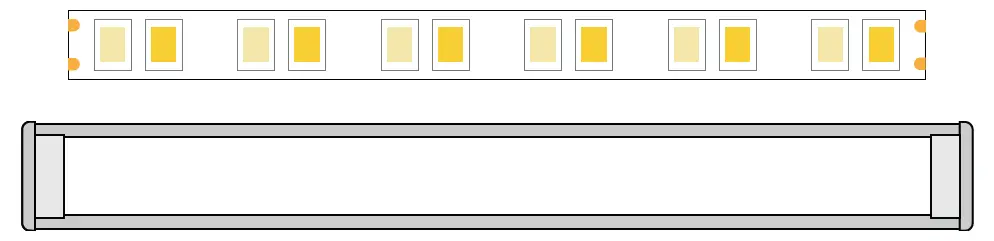

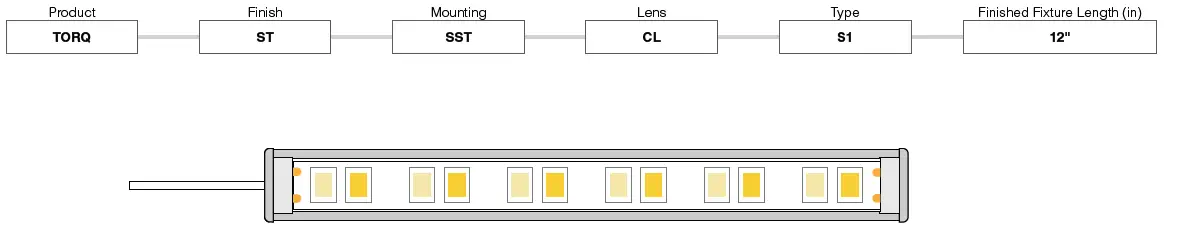

1. Fill out the ordering code on the STRIP cutsheet, choosing “MATCH” for ILLUMINATED LENGTH (in).The strip you just created will now be fitted and installed into an extrusion. The strip and extrusion will not be equal in length; the strip will stop just short of the extrusion’s endcaps.

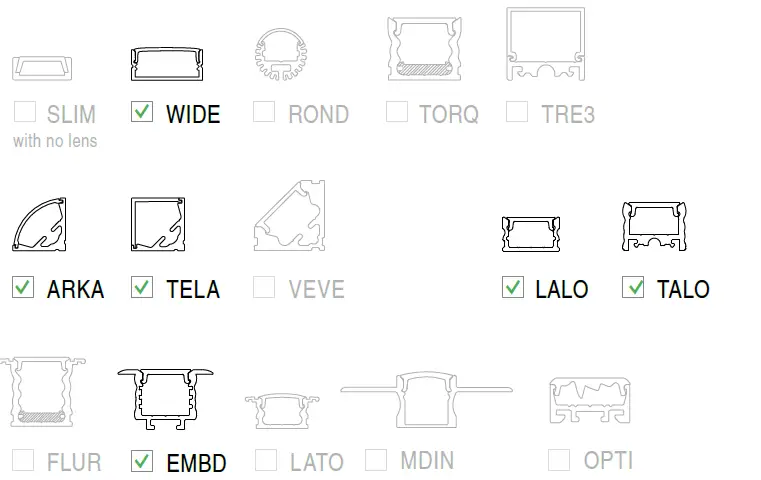

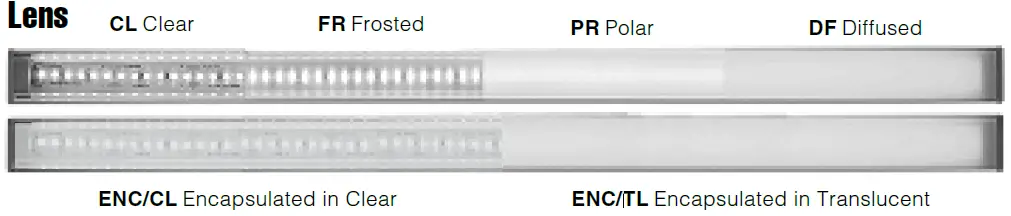

2. Fill out the ordering code for the EXTRUSION cu sheet and choose a non-encapsulated lens (Clear, Frosted, Polar, or Diffused).

RATED

DRY

• 2″ Cutpoints

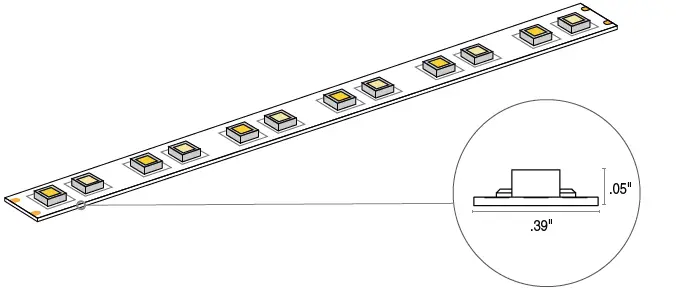

• Field Cuttable
• Lengths up to 192″

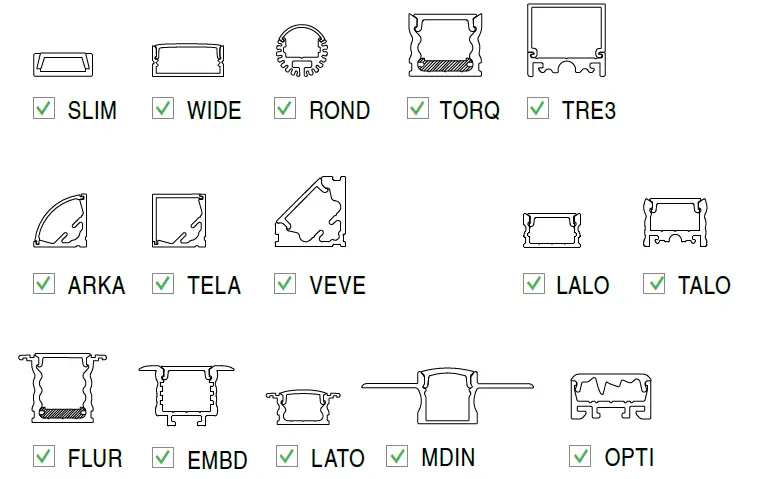

COMPATIBLE EXTRUSIONS

WET

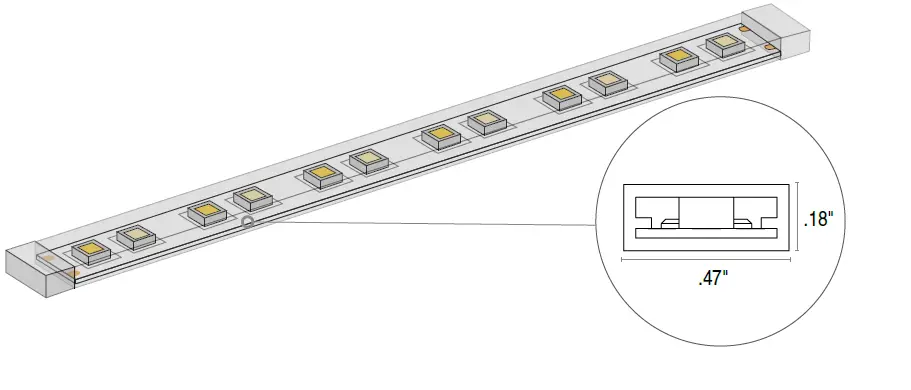

• Enclosed in silicone sleeving
• 2″ Cutpoints
• Lengths up to 192″

COMPATIBLE EXTRUSIONS

CONNECTORS/WIRE

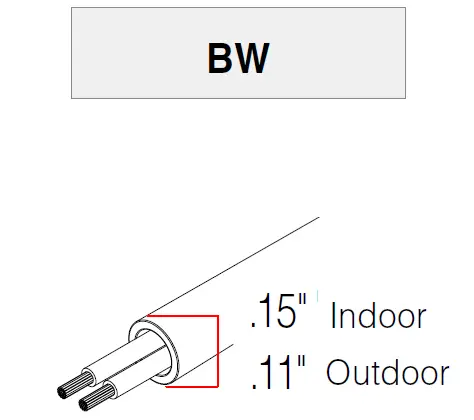

BARE WIRE

• 22 AWG
• Indoor/Outdoor rated
• 24″ Standard length

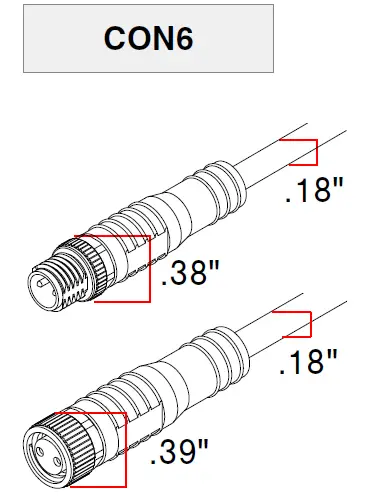

CONNECTOR 6″

• 22 AWG
• Indoor rated
• 6″ Standard length

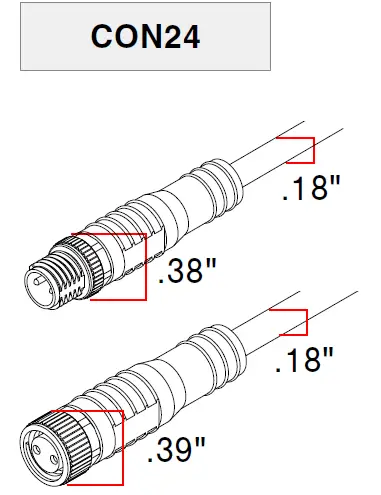

CONNECTOR 24″

• 22 AWG
• Indoor rated
• 24″ Standard length

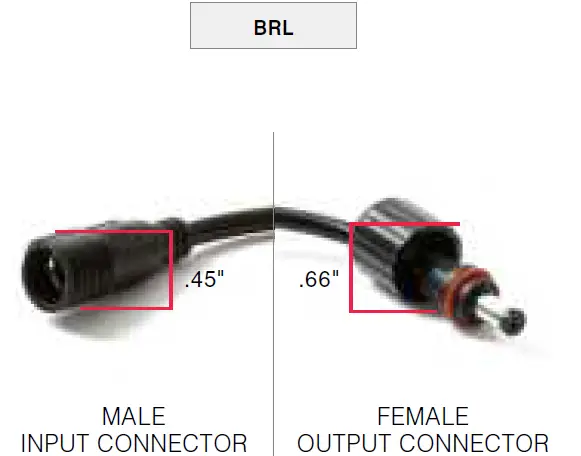

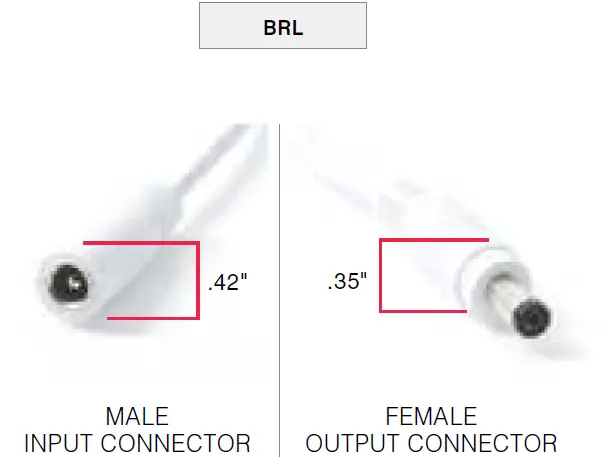

DRY BARREL

• 22 AWG
• Dry rated
• 6″ Standard length

WET BARREL

• 22 AWG
• Wet rated
• 6″ Standard length

Finish

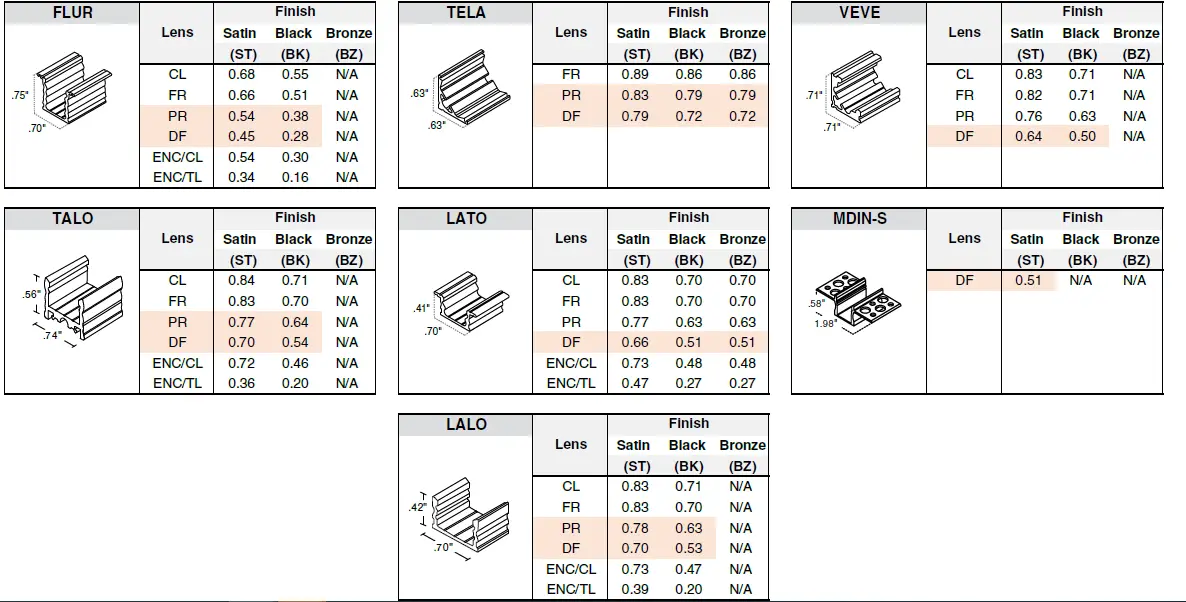

Lumen Multiplier Formula

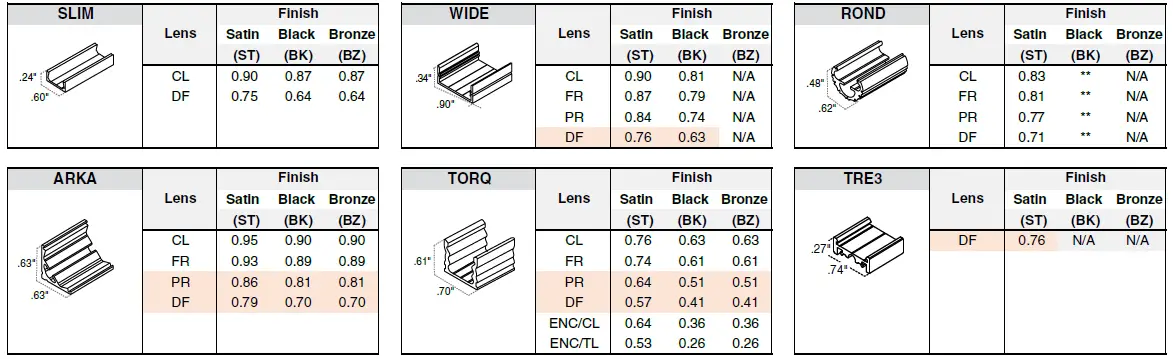

Bare LED Lumens x Extrusion Finish/Lens Value

Example:
527 lm/ft x 0.74 = 389.98 lm/ft
WD24/6.0 at 3000K x TORQ Extrusion in Satin with FR Lens

NOTES: Data subject to change, all data has +/- 5% tolerance

Diode free or near Diode free

• © 2022 Q-Tran Inc. All rights reserved
• 155 Hill St. Milford, CT 06460
• 203-367-8777
• [email protected]
• www.q-tran.com

Specification subject to change. Rev-03-23-22
