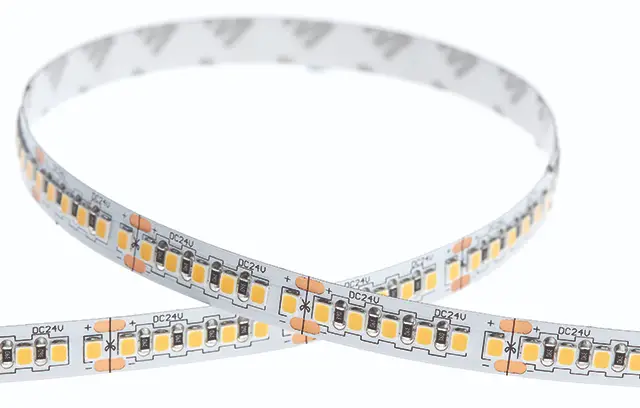

Lluria BS13,9 LED strip
Inside IP20 Basic 13,9W/m
Flexible LED strip with ideal for all types of installations, general and accent lighting. Great uniformity is achieved thanks to the small separation between the LEDs.
For indoor use.
Technical data
| Power | 13,9W/m |
| Roll power 5m | 69,5W |
| IP | 20 |
| Voltage | 24V |
| LED type | 2835 |
| LEDs/m | 180 |
| Pitch | 5,55mm |
| Beam angle | 120º |
| Min. cutting lenght | 33,3mm |
| Roll length | 5/30m |
| Life time | 50.000h |
| Ambient temperature | -20~50ºC |
| Storage temperature | -40~80ºC |
| Tc Point mark | Sí Yes (1) |
| Warranty years | 3 |
| Dimmable | Sí Yes |
| Needs heatsink | Sí Yes |
Max. lenght 20m (2)
- (UNE-EN 60598-1:2015; UNE-EN 60598-2-1:1993)
- Connected in series

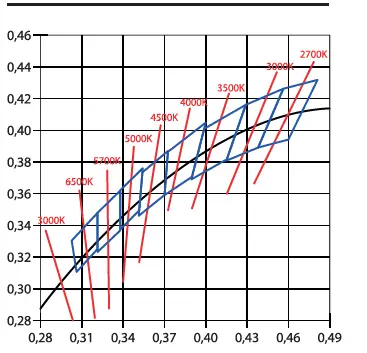

5 MacAdam steps
CDL

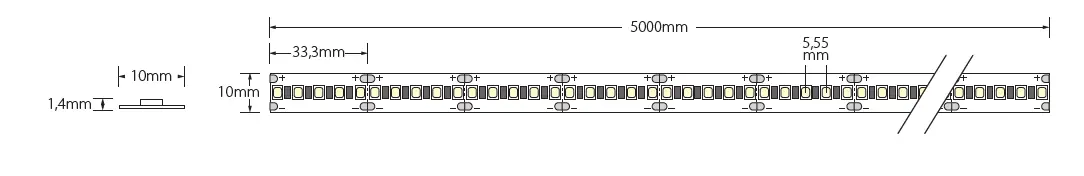

Dimensions

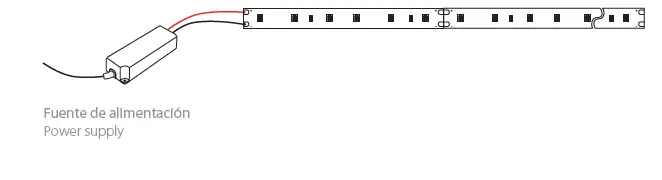

Circuit diagram

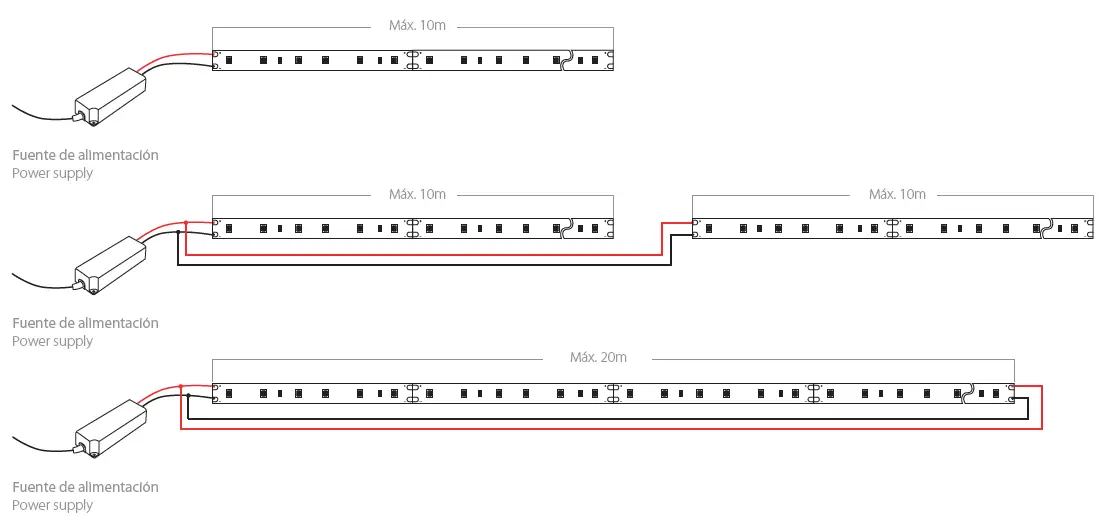

Respect the maximum lengths to avoid drops voltage and variations in light intensity.
Cable section
Distance ≤ 5m < 15m < 25m
Section 0,50mm2 1,5mm2 2,5mm2

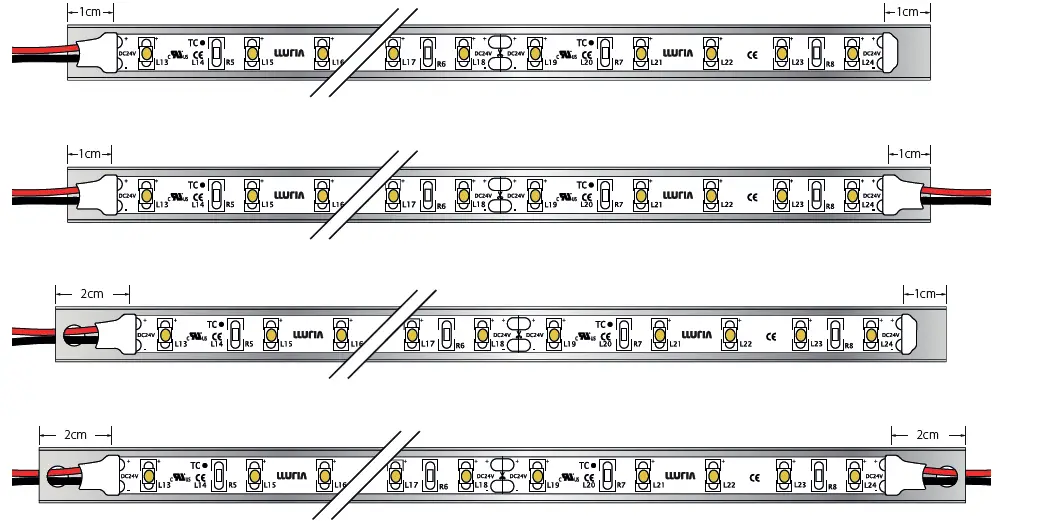

Distance LED – Profile
Minimum distance that should be left at the ends, both sides, between LED strip and profile.

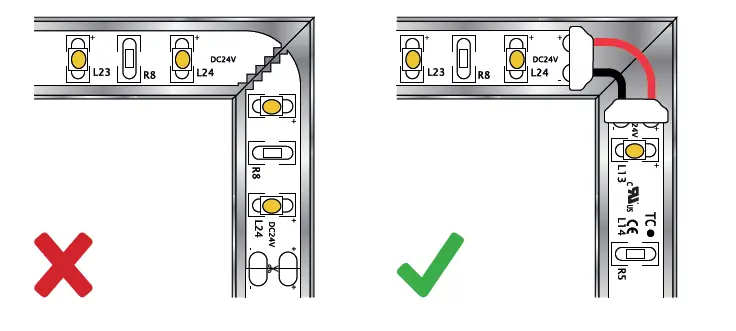

Assembly detail
Do not bend de LED strip to adapt them to sharp radius or angle, cut for the cut mark and weld a section of cable to make the turn.
Life time
The life time of our LEDs is 50.000h at an ambient temperature of 23ºC and provided with a heat dissipation system. Off cycles are recommended to extend the life of the LEDs.
Warnings
- To ensure the life of the LED, it is request to place on a surface that dissipates the heat they generate.
- Caution when handling cables to avoid damage to the welds.
- The voltage surges can cause damage.
- If diffuser is used with the dissipating profile, there may be variations in the color temperature.
Lluria reserves the right to modify specifications.
